NUJ10L-BGFNWW (2008)
Toyota Iq

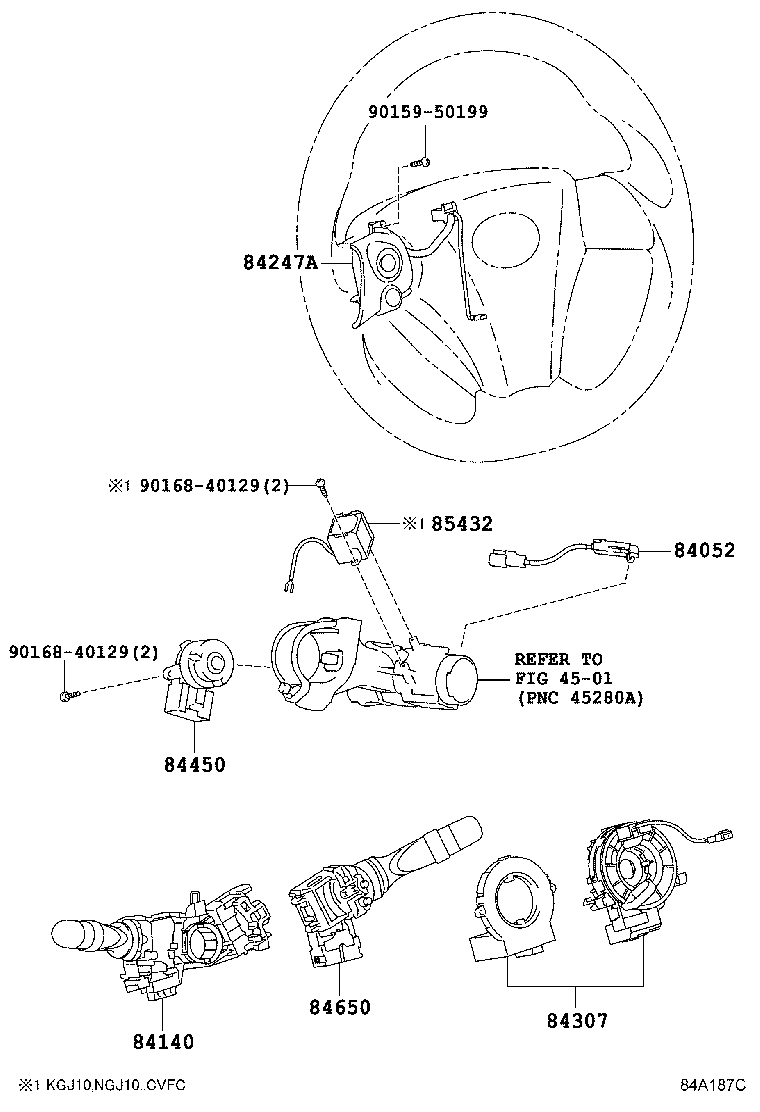

ILLUST NO. 6 OF 7(0811- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 84052-60020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42091 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84140-42101 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-53081 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84140-42101 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84140-42091 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12611 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 84140-42111 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84140-12621 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT FOG LAMP-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-74010 |
KGJ10;NUJ10..LHD |
1 | ||
| 84247-74020E0 |
NGJ10,NUJ10 IQ COLLECTION,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 84247-74020A0 |
NGJ10,NUJ10 IQ COLLECTION,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-74020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 84450-12200 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48121 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84652-52201 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

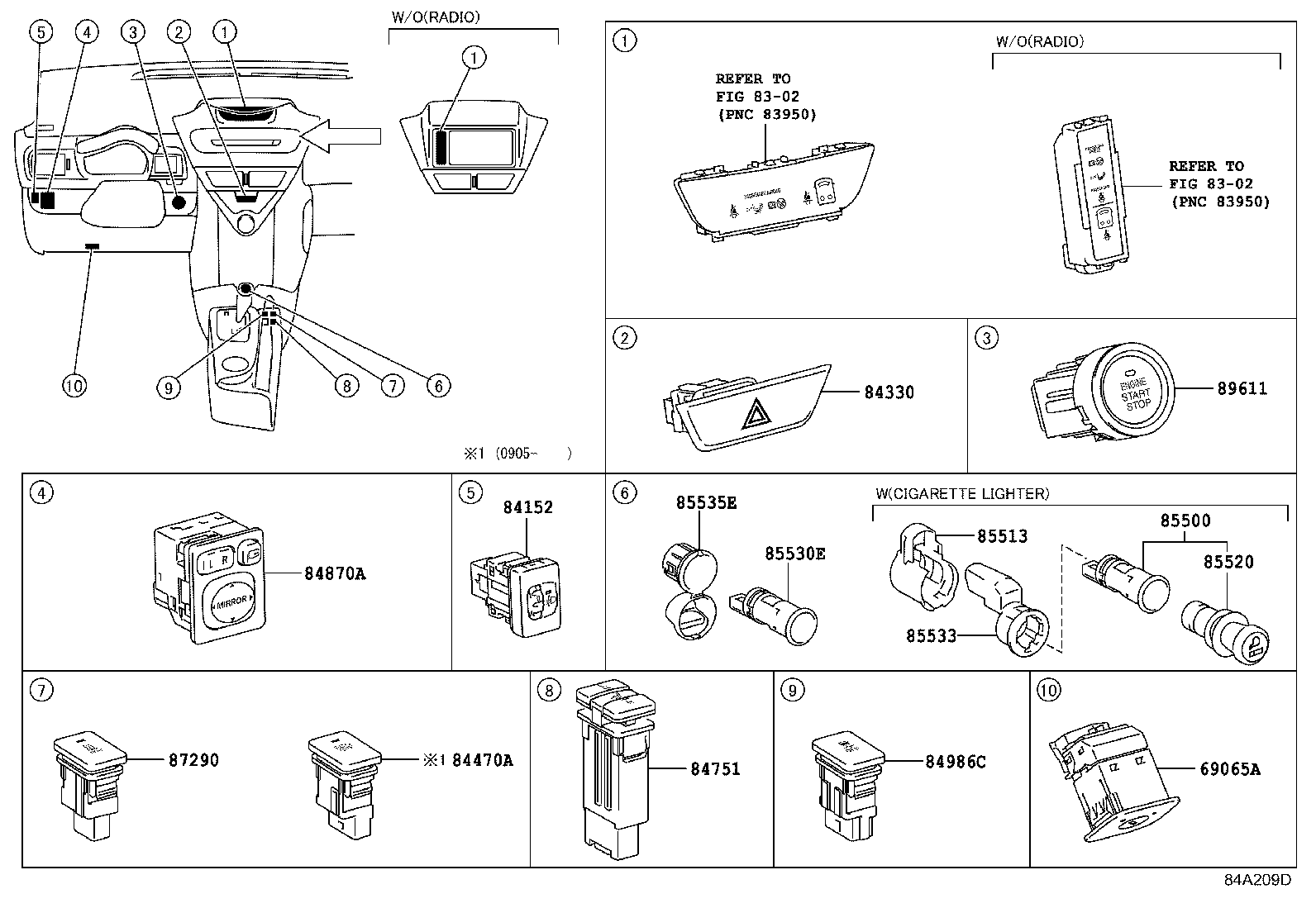

ILLUST NO. 5 OF 7(0811- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-52030 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 69065-52020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC |
1 | ||
| 84332-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 84332-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84332-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
NUJ10;KGJ10,NGJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
KGJ10,NGJ10,NUJ10 OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 84870-34010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84986-12010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
NUJ10..LHD;KGJ10,NGJ10 CIGARETTE LIGHTER-WITH(WITHOUT/ILLUMINATION) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NUJ10..LHD;KGJ10,NGJ10 CIGARETTE LIGHTER-WITH(WITHOUT/ILLUMINATION) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NUJ10..LHD;KGJ10,NGJ10 CIGARETTE LIGHTER-WITH(WITHOUT/ILLUMINATION) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
NUJ10..LHD;KGJ10,NGJ10 CIGARETTE LIGHTER-WITH(WITHOUT/ILLUMINATION) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52051 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-42010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52021 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89611-52023 |
KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89611-52022 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

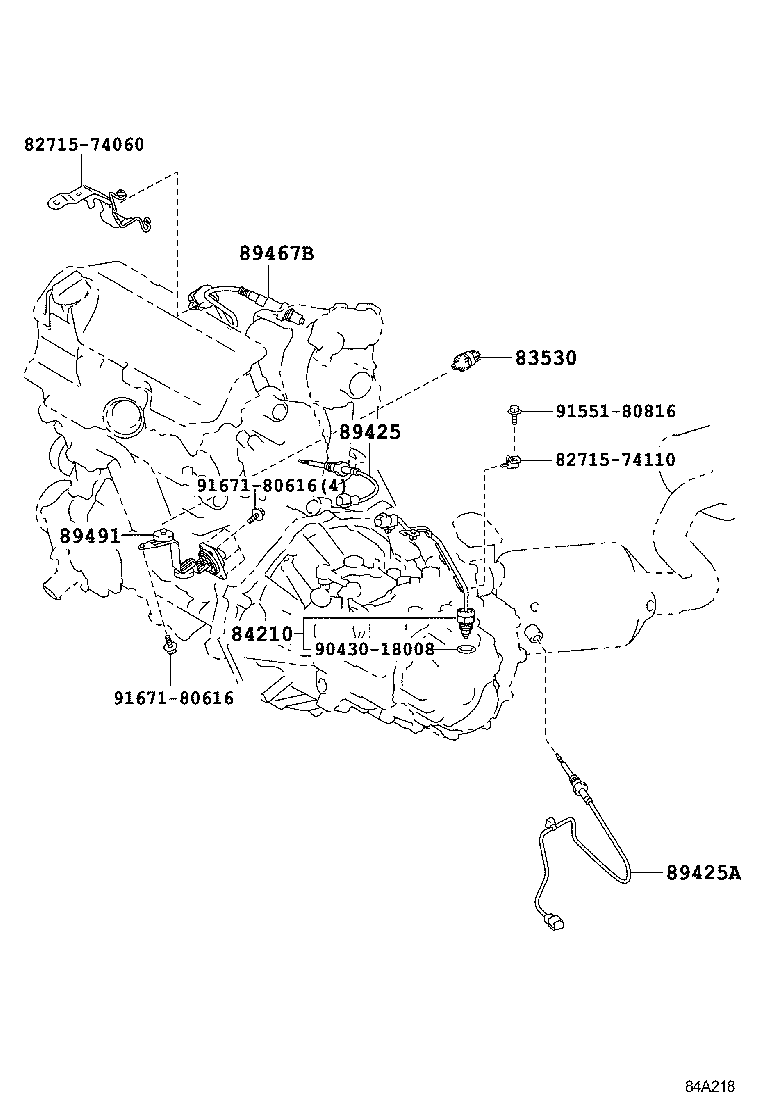

ILLUST NO. 1 OF 7(0811-1205)NUJ10
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
NUJ10 DENSO |
1 | ||
| 83530-60010 |
NUJ10 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-74010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 84210-74010 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-74011 |
NUJ10 |
1 | ||
| 89425-74011 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89425-74010 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-74021 |
NUJ10 |
1 | ||
| 89425-74020 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89425-74021 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-74020 |
NUJ10 |
1 | ||
| 89467-74050 |
NUJ10 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-74010 |
NUJ10..LHD |
1 | ||
| Common parts | ||||
| 82715-74060 | ||||
| 82715-74110 | ||||
| 90430-18008 | ||||
| 91551-80816 | ||||
| 91671-80616 | ||||

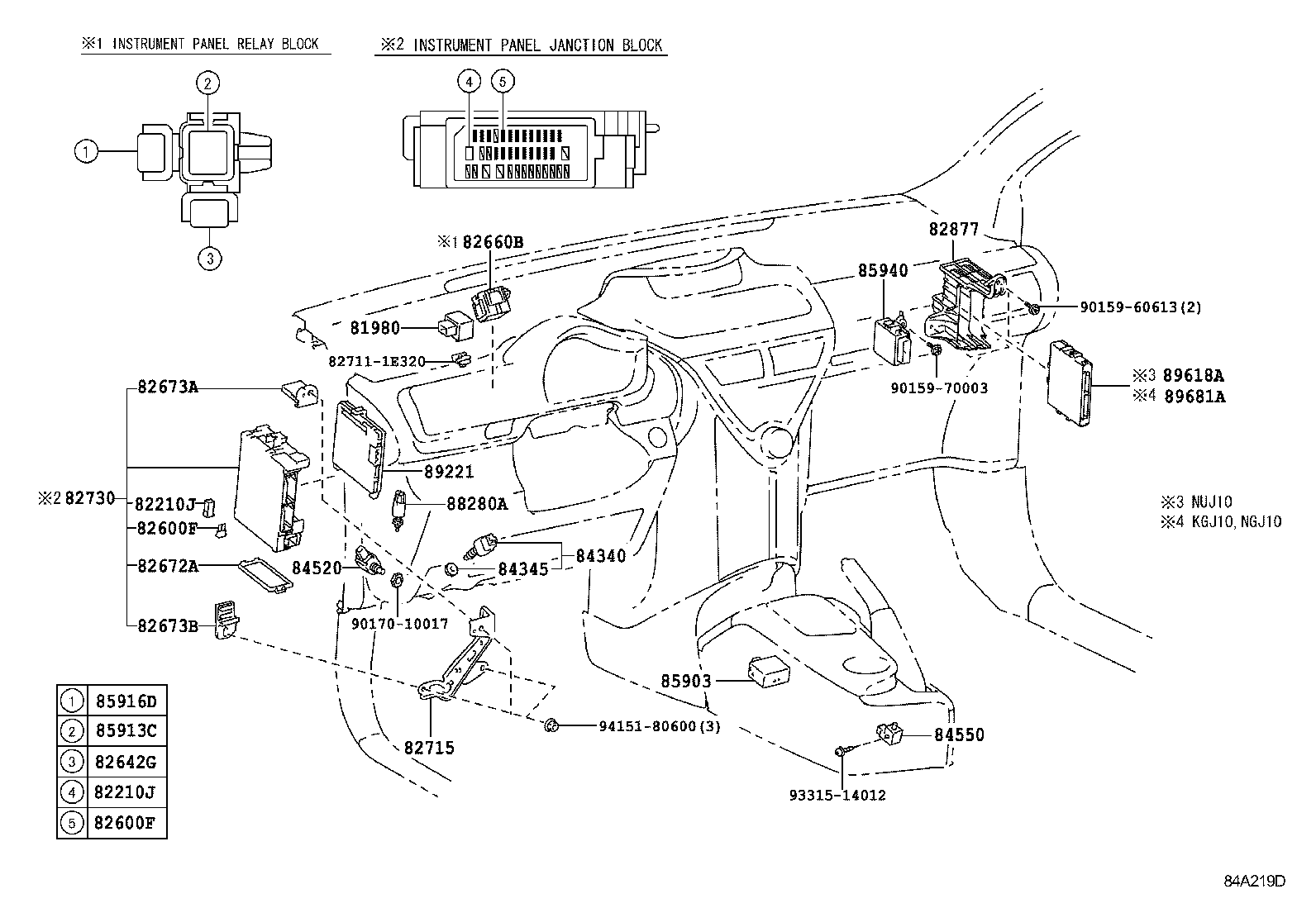

ILLUST NO. 4 OF 7(0811- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
KGJ10,NGJ10,NUJ10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
KGJ10,NGJ10,NUJ10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
NUJ10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
KGJ10,NGJ10,NUJ10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
KGJ10,NGJ10,NUJ10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
KGJ10,NGJ10,NUJ10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
NUJ10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
KGJ10,NGJ10,NUJ10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02027 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NGJ10,NUJ10..LHD..6F;KGJ10,NGJ10..RHD..(6F,CVFC) |
1 | ||
| 82660-74010 |
NUJ10;KGJ10,NGJ10..RHD..CVFC FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82672-74020 |
NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82672-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82672-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82672-74020 |
NUJ10 FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82672-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 82672-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-74020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-74510 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-74040 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82730-74040 |
NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82730-74040 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82730-74040 |
NUJ10 FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82730-74030 |
NUJ10;KGJ10,NGJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82730-74020 |
NGJ10..6F..N;KGJ10,NUJ10..N;NGJ10..LHD..CVFC;KGJ10,NGJ10..LHD..R |
1 | ||
| 82730-74040 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82730-74040 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-74010 |
NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-02025 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 90987-02025 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT FOG LAMP-WITH |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-74010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-74030 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89220-74040 |
NUJ10..LHD COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89220-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-74010 |
NUJ10..LHD WIRELESS DOOR LOCK-SMART KEY |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90170-10017 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||

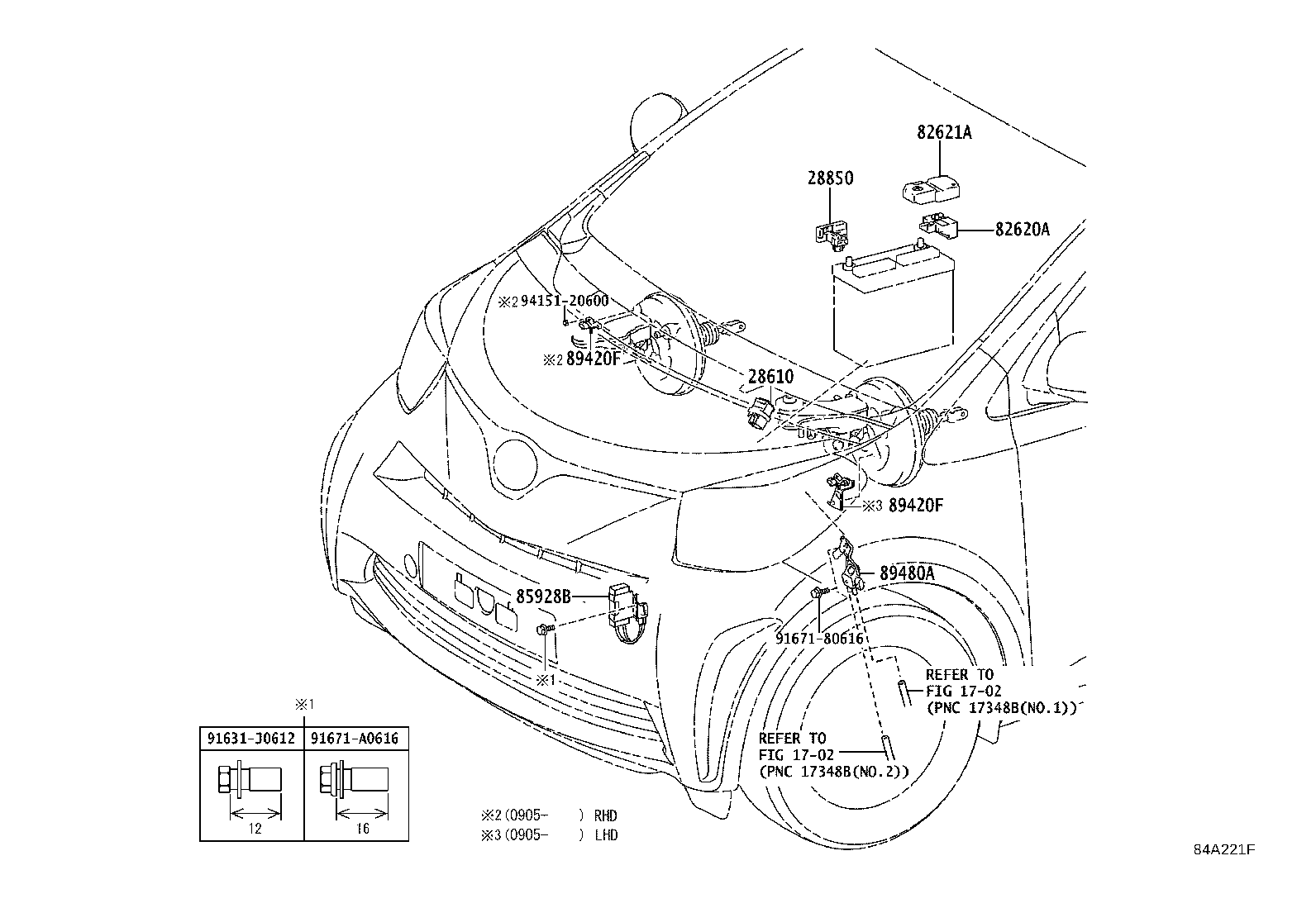

ILLUST NO. 2 OF 7(0811- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1NDTV..NUJ10..LHD |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52060 |
NUJ10 |
1 | ||
| 82620-52080 |
NUJ10 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52130 |
NUJ10 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85928-74010 |
NGJ10..N;KGJ10,NUJ10 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-74010 |
NUJ10..LHD EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 89480-74010 |
NUJ10 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| 94151-20600 | ||||
| Linked diagrams | ||||
| 1702 | ||||

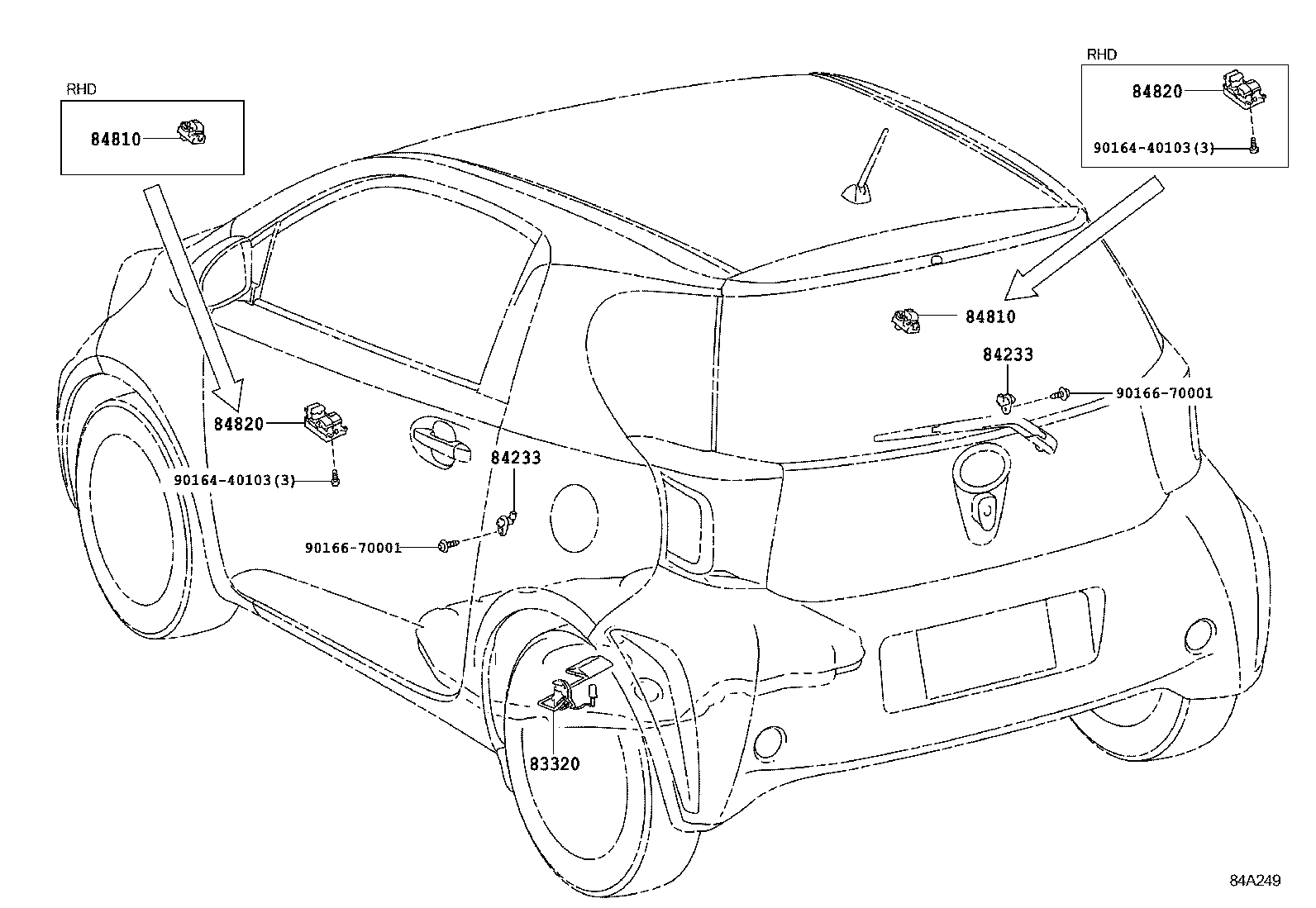

ILLUST NO. 7 OF 7(0811- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-42010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-42010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

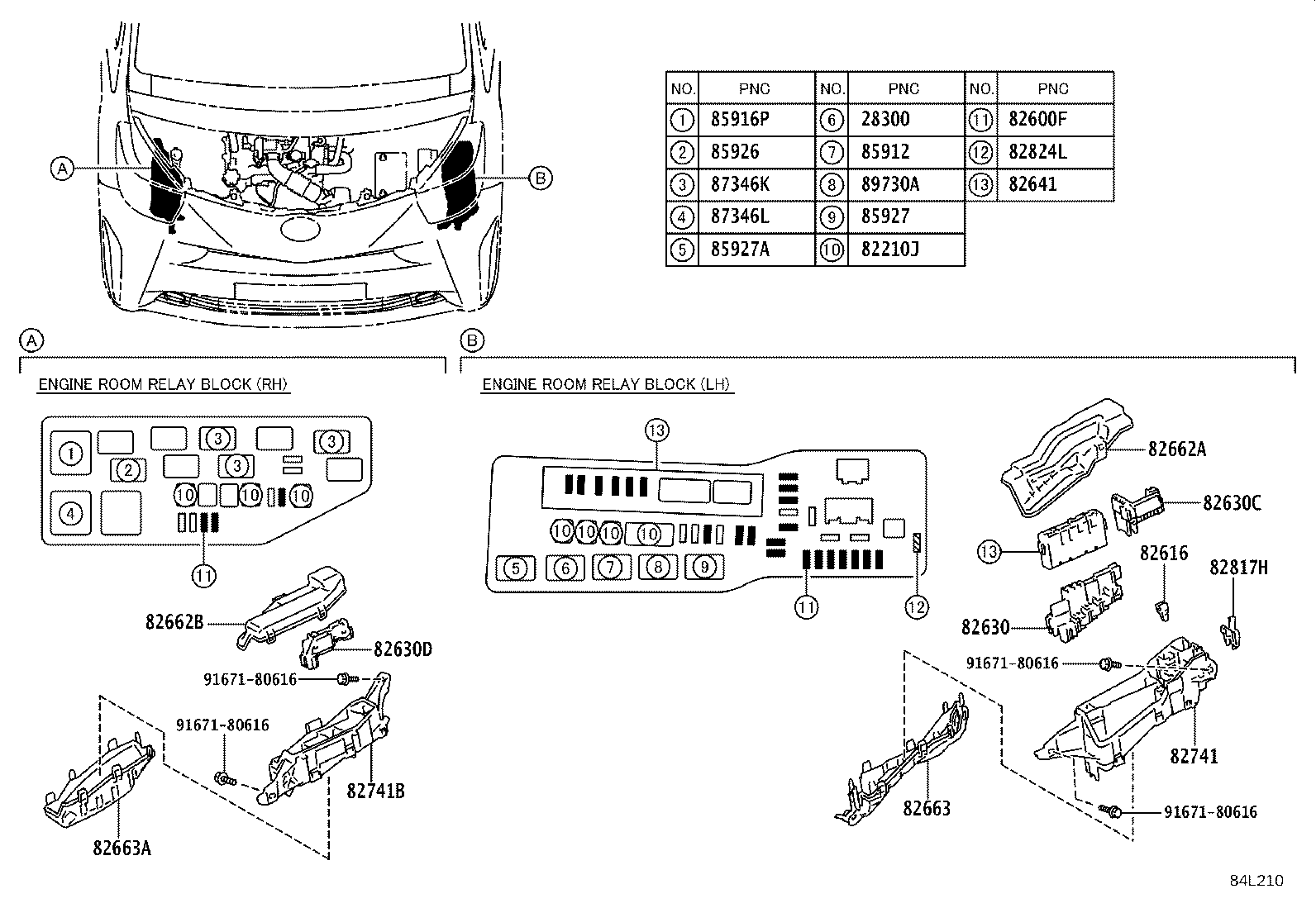

ILLUST NO. 3 OF 7(0811- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC;1KRFE,1NDTV..KGJ10,NUJ10 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
KGJ10,NGJ10,NUJ10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
KGJ10,NGJ10,NUJ10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
NUJ10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
KGJ10,NGJ10,NUJ10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KGJ10,NGJ10,NUJ10 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KGJ10,NGJ10,NUJ10 25A,MINI FUSE |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KGJ10,NGJ10,NUJ10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KGJ10,NGJ10,NUJ10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
KGJ10,NGJ10,NUJ10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
KGJ10,NGJ10,NUJ10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
KGJ10,NGJ10,NUJ10 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KGJ10,NGJ10,NUJ10 15A,MINI FUSE,BLUE |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-74020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-74030 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82631-74030 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
1 | ||
| 82631-74030 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82631-74030 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82631-74030 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-74020 |
NUJ10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-74060 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662-74060 |
NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662-74060 |
NUJ10 COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82662-74060 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82662-74050 |
NUJ10 |
1 | ||
| 82662-74060 |
NUJ10 COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-74090 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
1 | ||
| 82662-74090 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;NGJ10,NUJ10..6F..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662-74090 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662-74090 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82662-74090 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-74020 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
1 | ||
| 82663-74020 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-74020 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-74020 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
1 | ||
| 82741-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82741-74020 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82741-74020 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82741-74020 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-74080 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 90987-02027 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02025 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02025 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02027 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02027 |
NGJ10..LHD..R;NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02027 |
NUJ10..LHD;NGJ10..LHD..R COLD AREA SPEC(S RANK)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
2 | ||
| 90987-02027 |
NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 90987-02027 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 90987-02027 |
NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02025 |
NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02025 |
NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
1 | ||
| 90987-02025 |
NUJ10..LHD COLD AREA SPEC(A RANK) |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
