NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

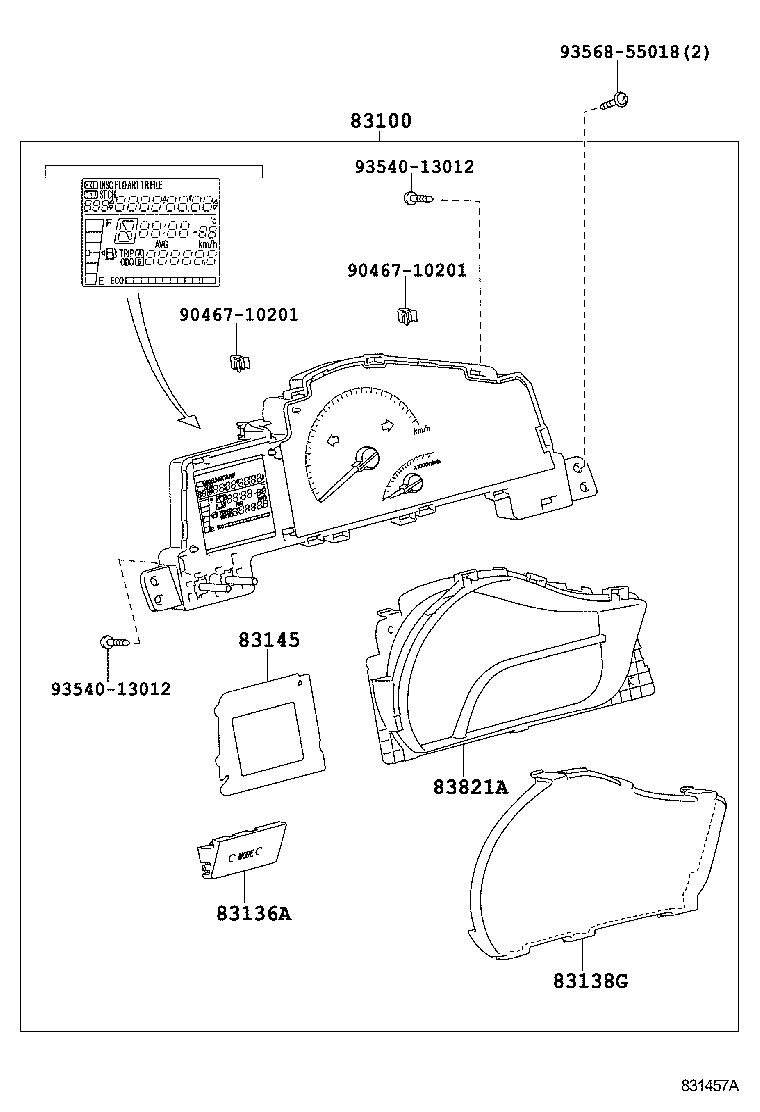

Click highlighted areas on diagram

diagram 83100 83136A 83138G 83145 83821A 9046710201 9046710201 9354013012 9354013012 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-74050

NUJ10..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER)

 1
83800-74030

NUJ10..LHD

 1
83800-74051

NUJ10..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER)

 1
83800-74031

NUJ10..LHD

 1
83800-74032

NUJ10

 1
83800-74052

NUJ10

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER)

 1
83136A - COVER, COMBINATION METER
83851-74010

KGJ10,NGJ10,NUJ10

 1
83138G - GLASS, COMBINATION METER
83852-74010

KGJ10,NGJ10,NUJ10

 1
83145 - LENS, METER, NO.1
83831-74020

KGJ10,NGJ10,NUJ10

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER)

 1
83831-74010

KGJ10,NGJ10,NUJ10

 1
83821A - COVER, COMBINATION METER, NO.1
83821-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90467-10201
93540-13012
93568-55018
