NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

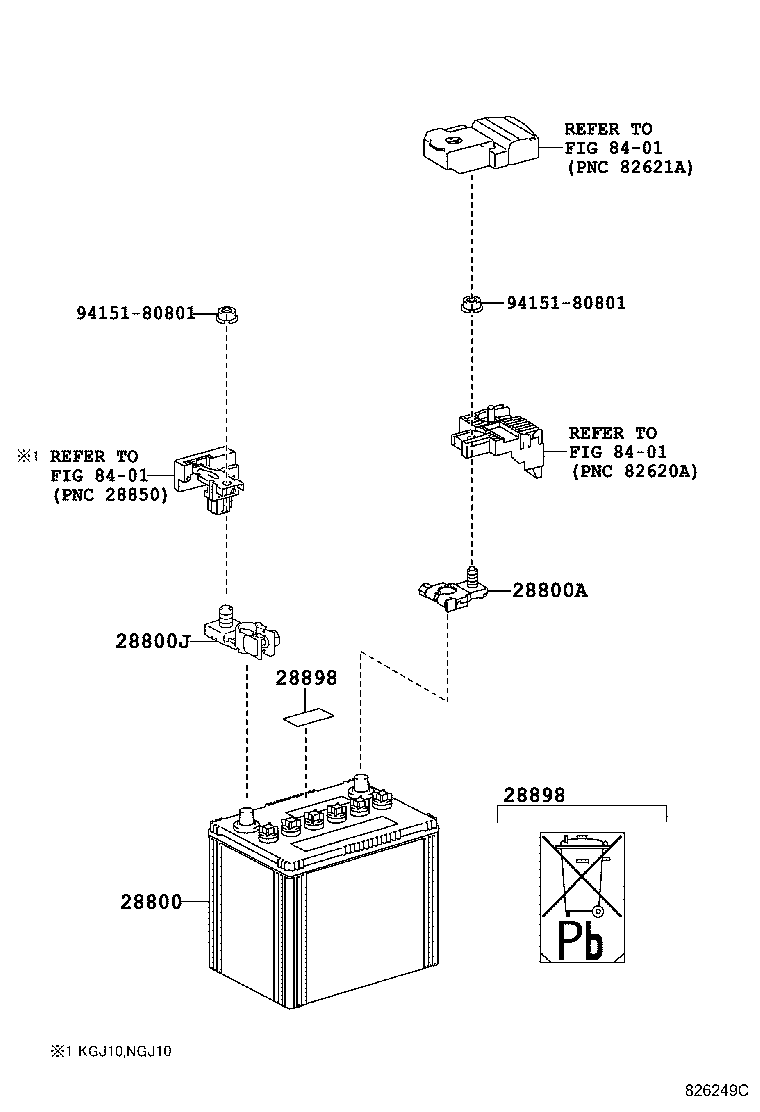

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28898 28898 8401 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-15021

1NDTV..NUJ10

55D23R

 1
28800-54231

1NDTV..NUJ10

80D26R,COLD AREA SPEC(S RANK)

 1
28800-54231

1NDTV..NUJ10..LHD

80D26R,COLD AREA SPEC(A RANK)

 1
28800-54231

1NDTV..NUJ10..LHD

80D26R,COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 1
28898 - PLATE, BATTERY
28898-46020

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 1
28898 - PLATE, BATTERY
28898-46020

1KRFE,1N#..KGJ10,NGJ10,NUJ10

 1
Common parts
94151-80801
Linked diagrams
8401
