NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

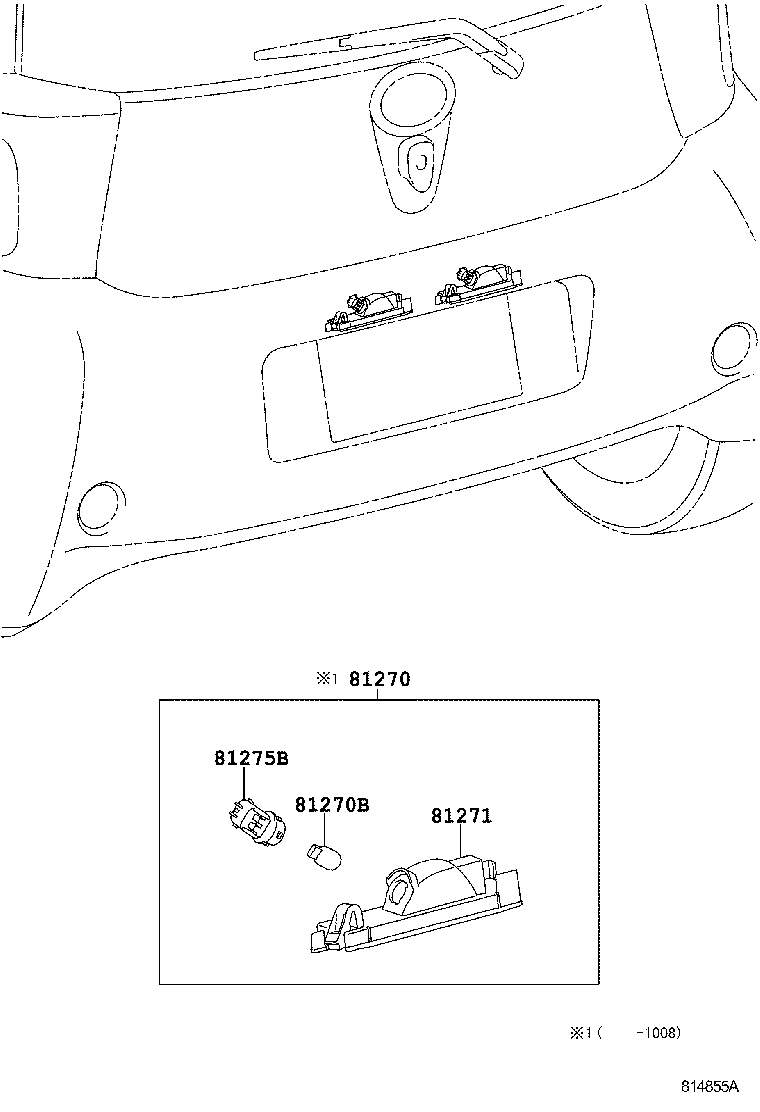

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275B
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-52020

KGJ10,NGJ10,NUJ10

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KGJ10,NGJ10,NUJ10

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-52020

KGJ10,NGJ10,NUJ10

 2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-60005

KGJ10,NGJ10,NUJ10

 2
