NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

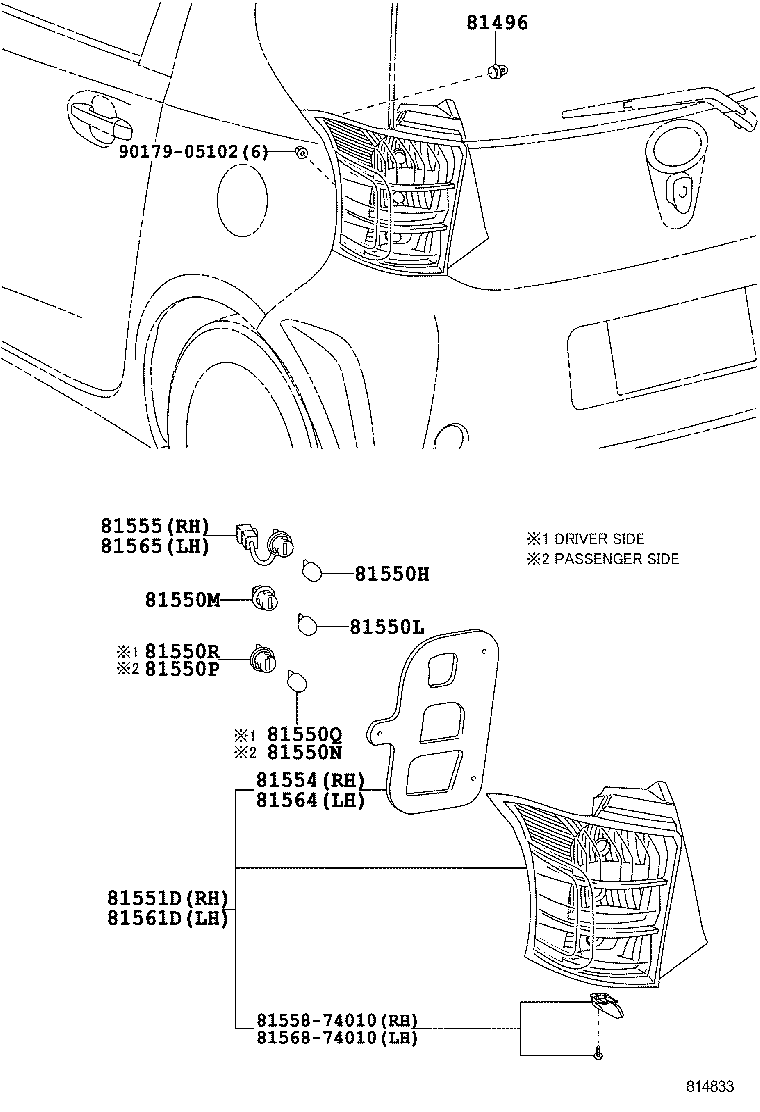

Click highlighted areas on diagram

diagram 81496 81550H 81550L 81550M 81550N 81550P 81550Q 81550R 81551D 81554 81555 8155874010 81561D 81564 81565 8156874010 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

KGJ10,NGJ10,NUJ10

 2
81550H - BULB, TAIL & STOP LAMP
90981-13044

KGJ10,NGJ10,NUJ10

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

KGJ10,NGJ10,NUJ10

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
81515-42050

KGJ10,NGJ10,NUJ10

 2
81550N - BULB, BACK UP LAMP
90981-13043

KGJ10,NGJ10,NUJ10

 1
81550P - SOCKET, BACK UP LAMP
81675-22070

KGJ10,NGJ10,NUJ10

 1
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043

KGJ10,NGJ10,NUJ10

 1
81550R - SOCKET, REAR FOG LAMP
81675-22070

KGJ10,NGJ10,NUJ10

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-74050

KGJ10,NGJ10,NUJ10..LHD..MTM..N

REAR CONBINATION LAMPS-BULB(CHROME)

 1
81551-74050

KGJ10,NGJ10,NUJ10..LHD

HEADLAMP-WITH(SMOKE)

 1
81551-74010

KGJ10,NGJ10,NUJ10..LHD

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-74010

KGJ10,NGJ10,NUJ10

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-21200

KGJ10,NGJ10,NUJ10

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-74060

KGJ10,NGJ10,NUJ10..LHD

HEADLAMP-WITH(SMOKE)

 1
81561-74060

KGJ10,NGJ10,NUJ10..LHD..MTM..N

REAR CONBINATION LAMPS-BULB(CHROME)

 1
81561-74020

KGJ10,NGJ10,NUJ10..LHD

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-74010

KGJ10,NGJ10,NUJ10

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-21200

KGJ10,NGJ10,NUJ10

 1
Common parts
81558-74010
81568-74010
90179-05102
