NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

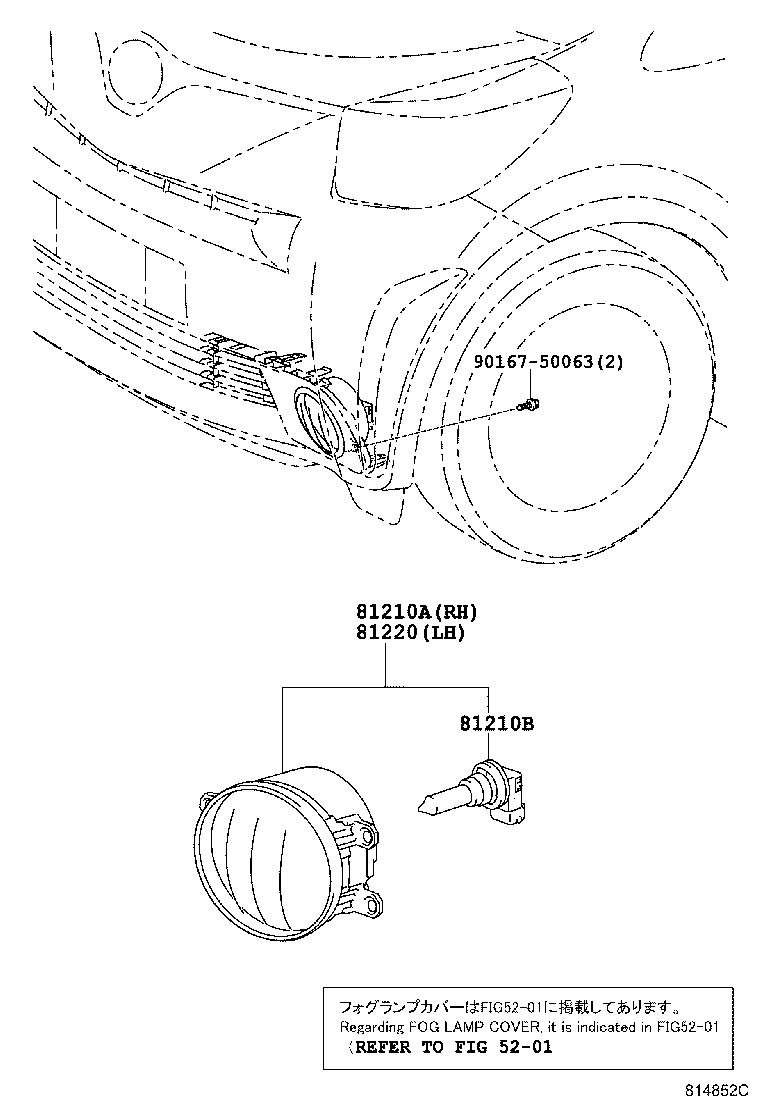

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D041

KGJ10,NGJ10,NUJ10

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13075

NGJ10..LHD;KGJ10,NUJ10

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,PHILIPS

 2
90981-13081

NGJ10..LHD;KGJ10,NUJ10

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-0D041

KGJ10,NGJ10,NUJ10

FRONT FOG LAMP-WITH

 1
Common parts
90167-50063
Linked diagrams
5201
