NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

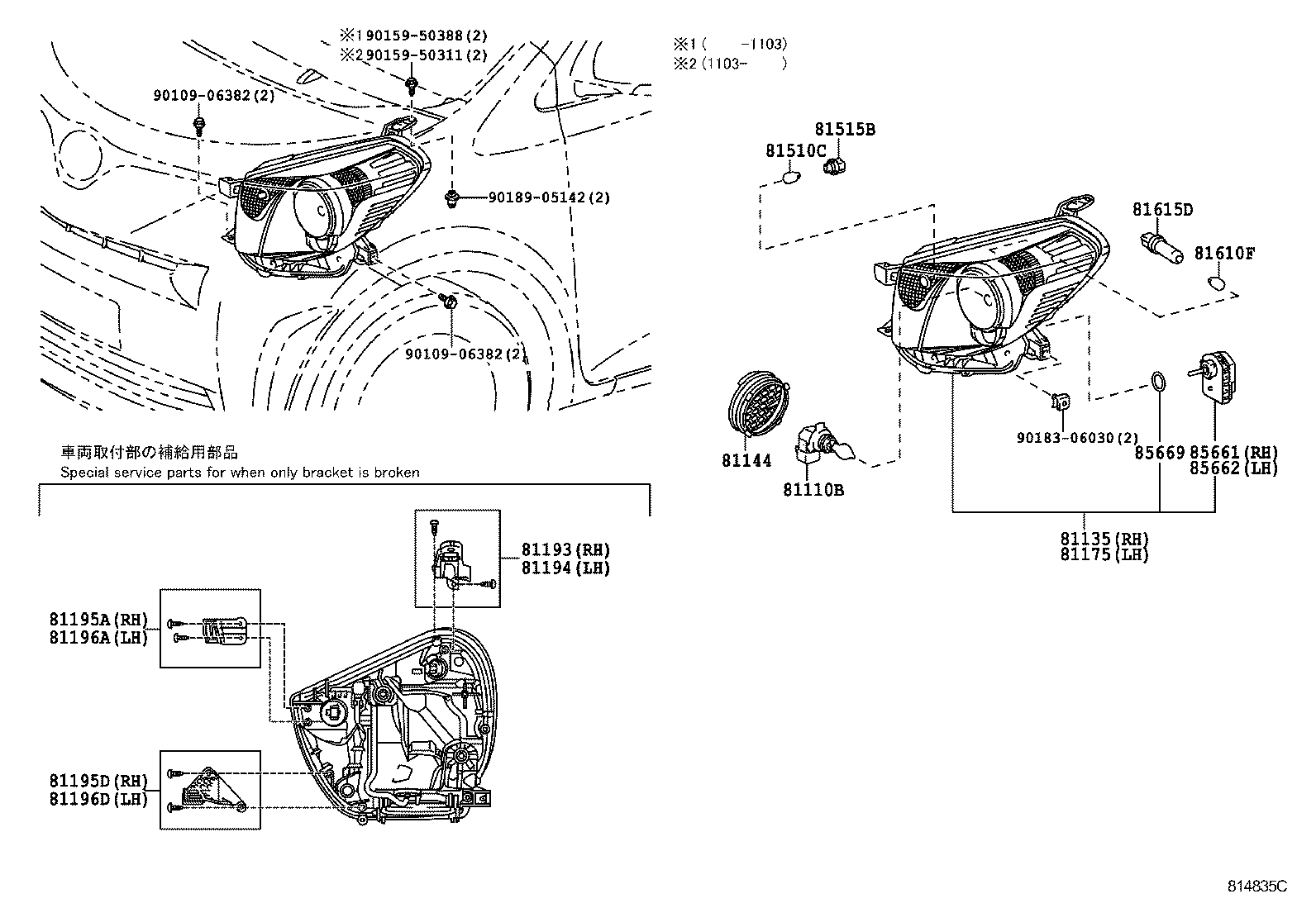

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13062 |
KGJ10,NGJ10,NUJ10 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-74050 |
KGJ10,NGJ10,NUJ10..LHD HEADLAMP-WITH(SMOKE) |
1 | ||
| 81130-74030 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-74010 |
KGJ10,NGJ10,NUJ10 RH |
1 | ||
| 81175-74010 |
KGJ10,NGJ10,NUJ10 LH |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-74050 |
KGJ10,NGJ10,NUJ10..LHD HEADLAMP-WITH(SMOKE) |
1 | ||
| 81170-74030 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-74030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-74030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KGJ10,NGJ10,NUJ10 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KGJ10,NGJ10,NUJ10 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
