NUJ10L-BGFNWW (2008)
Toyota Iq

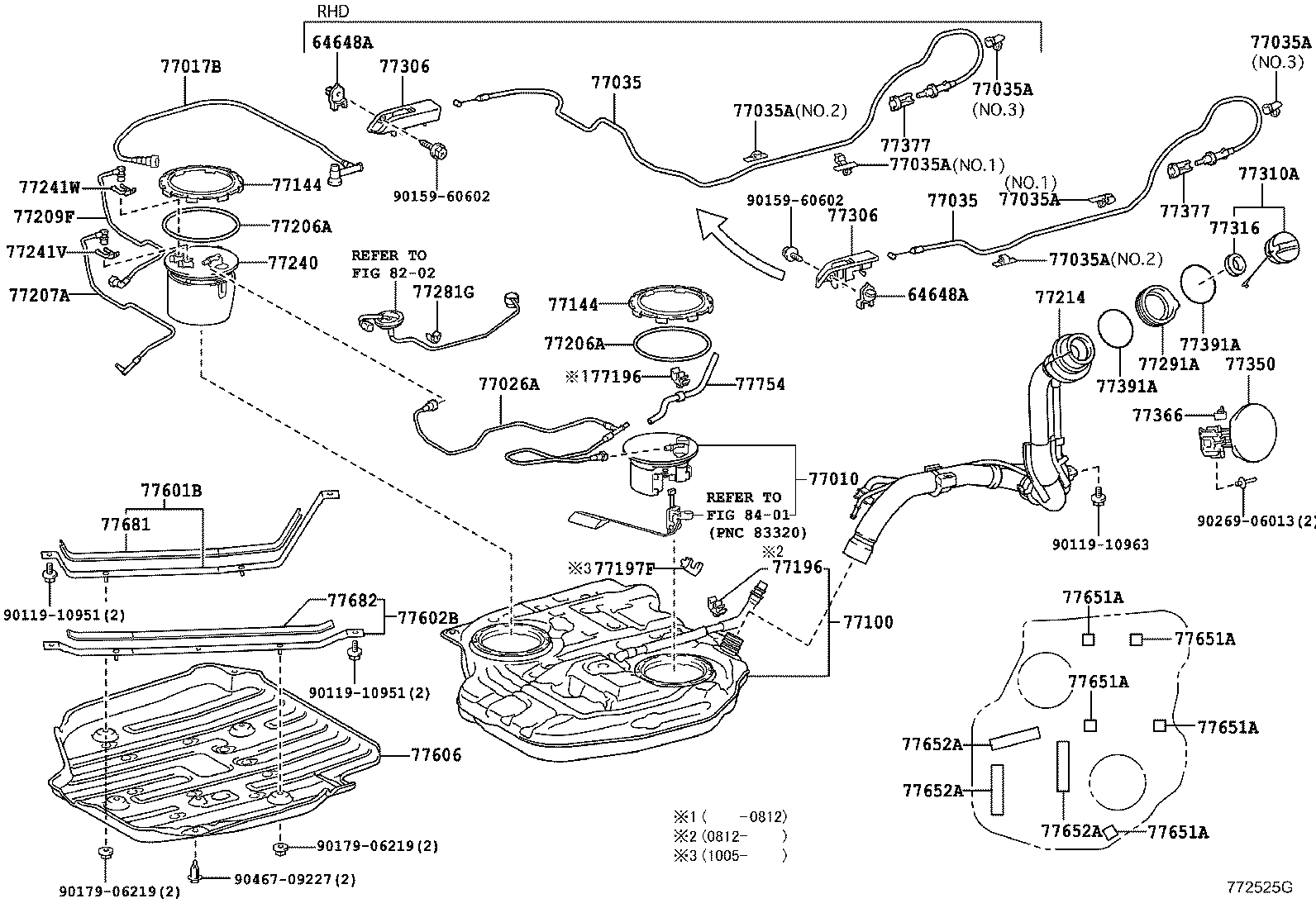

ILLUST NO. 1 OF 2(0811- )NUJ10
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-74022 |
NUJ10 |
1 | ||
| 77010-74020 |
NUJ10 |
1 | ||
| 77010-74021 |
NUJ10 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-74020 |
NUJ10 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 77333-74020 |
KGJ10,NUJ10..LHD NO.2 |
1 | ||
| 77333-74030 |
KGJ10,NGJ10,NUJ10 NO.3 |
1 | ||
| 77333-74010 |
KGJ10,NGJ10,NUJ10 NO.1 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12080 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12080 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77197F - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-74020 |
NUJ10 |
2 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-74020 |
NUJ10 |
2 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-74010 |
NUJ10..LHD |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-74020 |
NUJ10 |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77020-74020 |
NUJ10..LHD |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-35450 |
NUJ10..LHD |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-20020 |
NUJ10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-74010 |
KGJ10,NUJ10 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-74010 |
KGJ10,NGJ10,NUJ10 |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-74010 |
KGJ10,NGJ10,NUJ10 |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-74010 |
KGJ10,NGJ10,NUJ10 |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-74010 |
KGJ10,NGJ10,NUJ10 |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-74010 |
KGJ10,NGJ10,NUJ10 |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-74010 |
NUJ10 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-74010 |
NUJ10 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-74010 |
NUJ10 |
3 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-21020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-21020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-74020 |
NUJ10 L=83 |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90119-10963 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-06013 | ||||
| 90467-09227 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

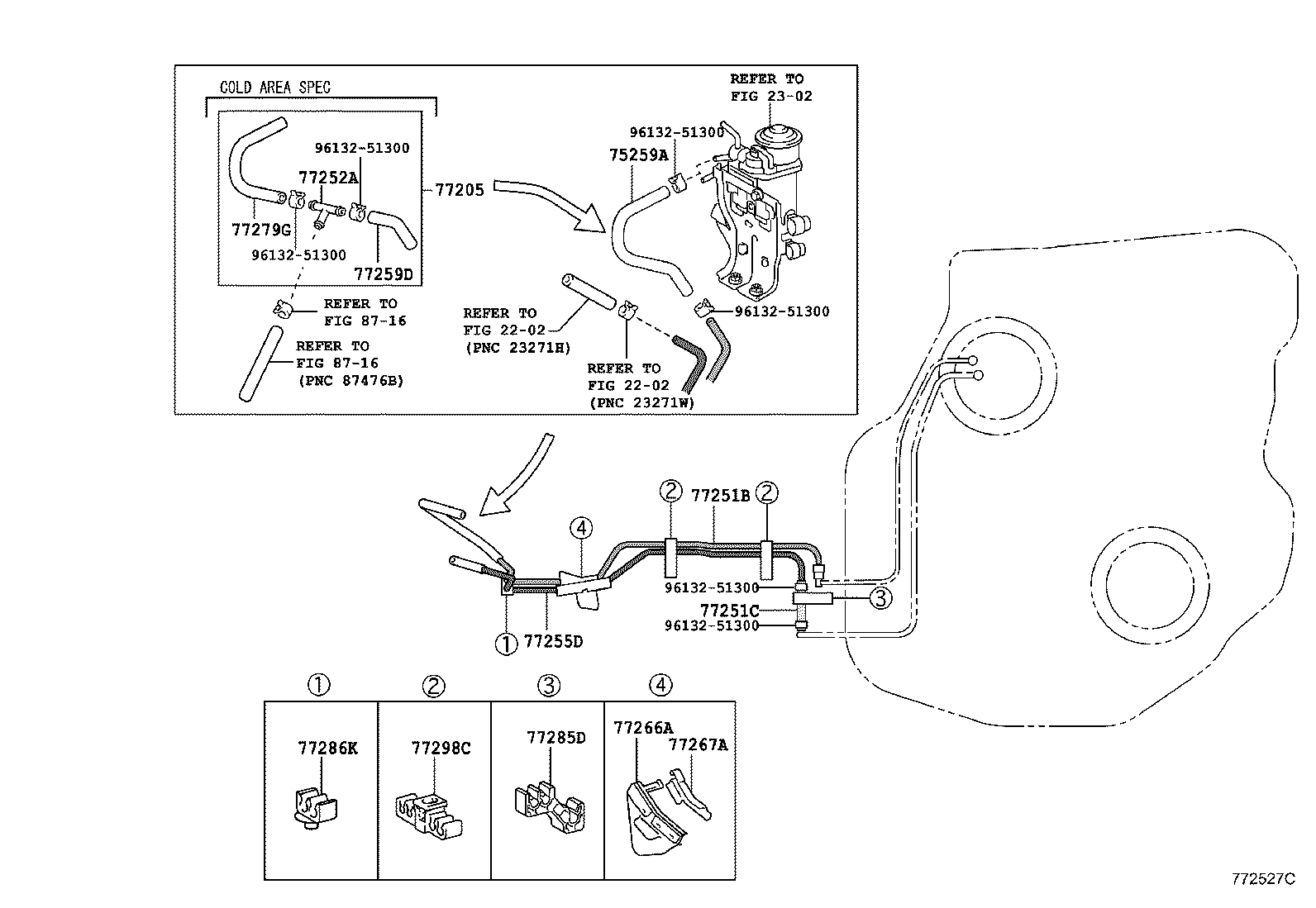

ILLUST NO. 2 OF 2(0811- )NUJ10
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75259A - HOSE, FUEL | ||||
| 77259-74010 |
NUJ10..LHD |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-74020 |
NUJ10 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95337-08007 |
NUJ10..LHD L=70,COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 95337-08007 |
NUJ10..LHD L=70 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-42020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-74010 |
NUJ10..LHD |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
| 8716 | ||||
