NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

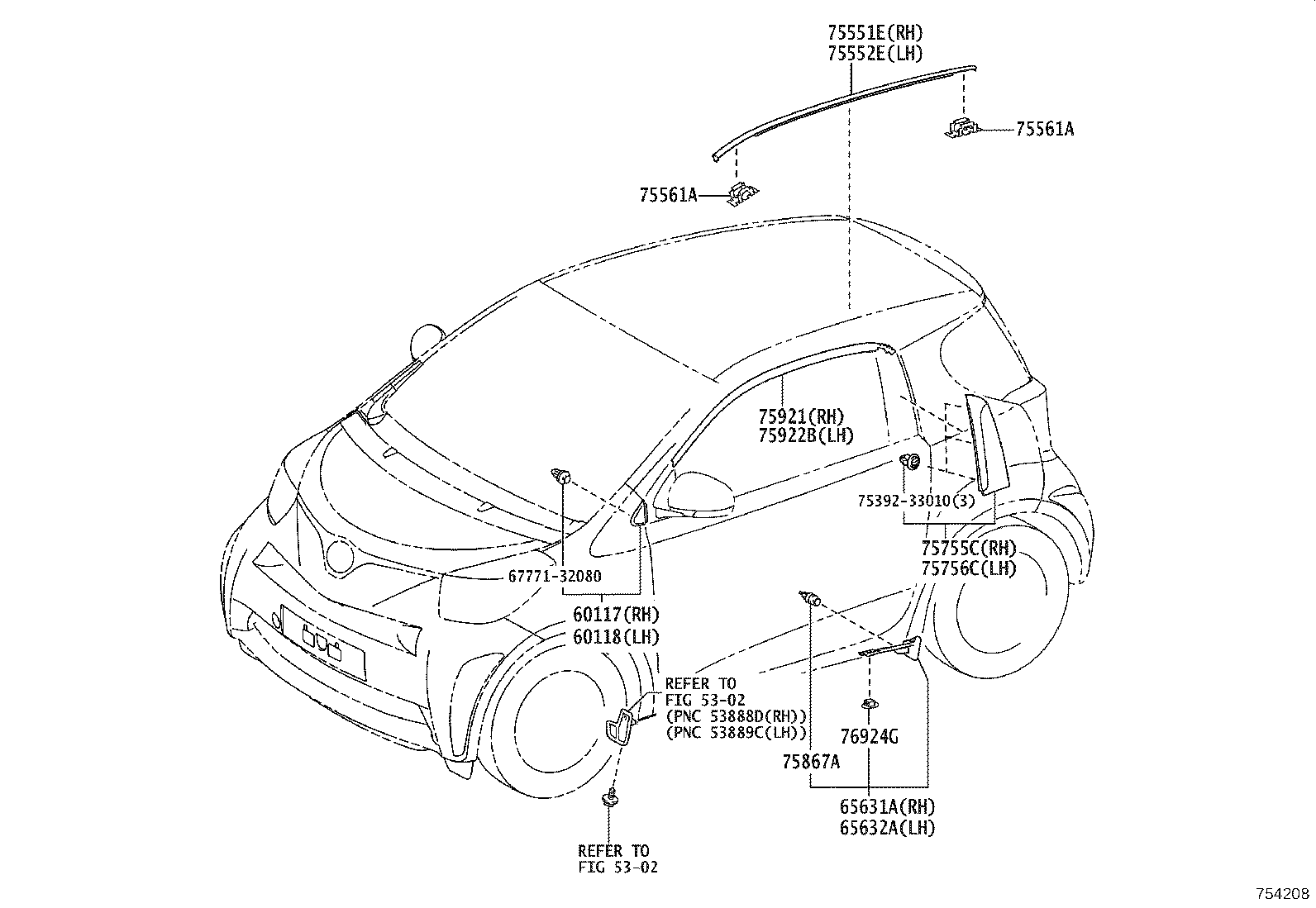

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 65631A - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 65632A - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75551E - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75552E - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52040 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52040 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 71769-32011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 75921 - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 75922B - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-12030 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 67771-32080 | ||||
| 75392-33010 | ||||
| Linked diagrams | ||||
| 5302 | ||||
