NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

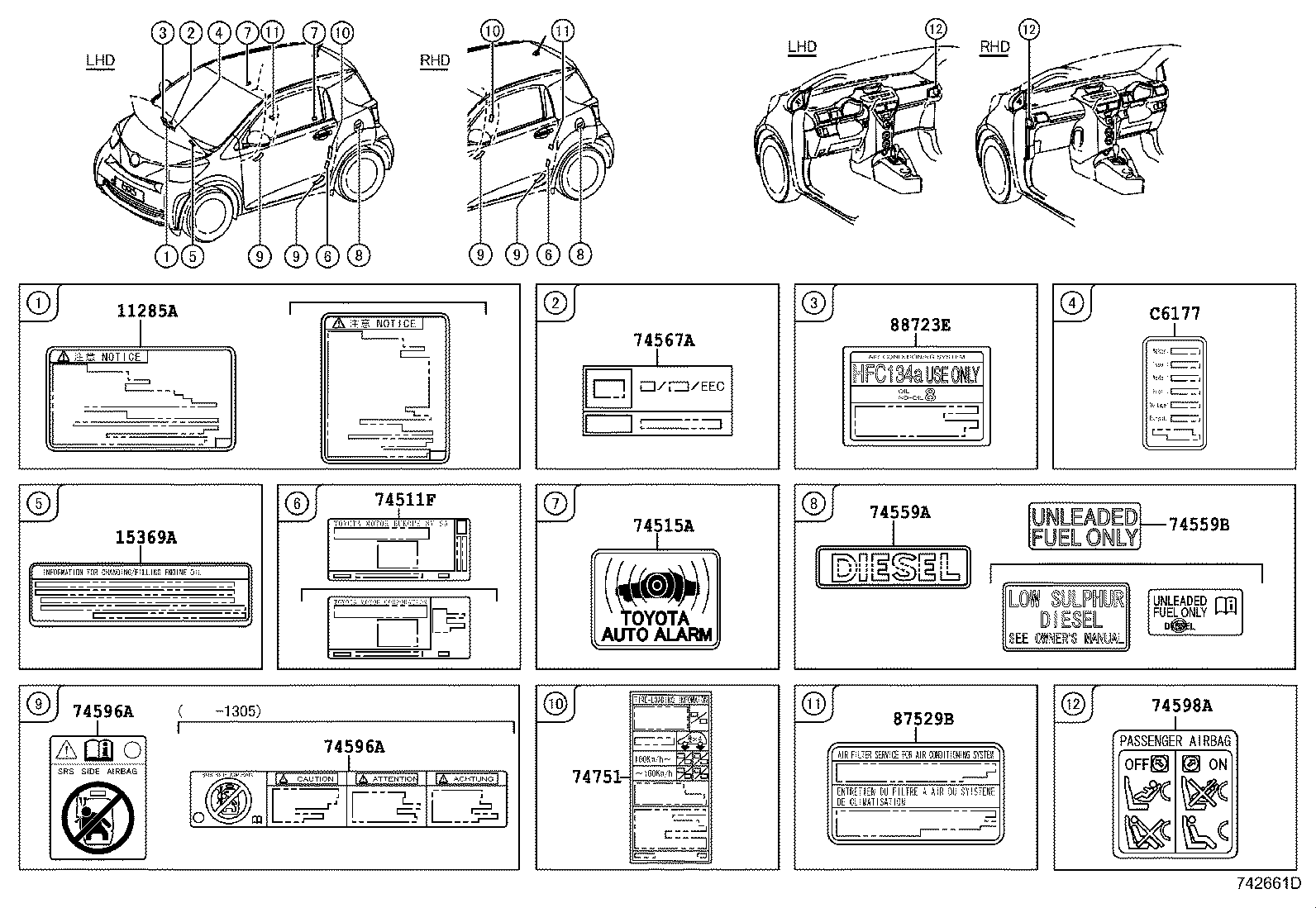

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

EXTERIOR & INTERIOR

diagram 11285A 15369A 74511F 74515A 74559A 74559B 74567A 74596A 74596A 74598A 74751 87529B 88723E C6177
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-33040

1NDTV..NUJ10

 1
15369A - LABEL, ENGINE OIL INFORMATION
15369-33010

1NDTV..NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

 1
15369-33010

1NDTV..NUJ10

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48020

KGJ10,NUJ10

*111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE(NOT WVTA)

 1
74511-48050

KGJ10,NGJ10,NUJ10

*111

 1
74559A - PLATE, FUEL CAUTION
74559-89101

NUJ10..LHD

 1
74559B - LABEL, FUEL INFORMATION
74559-20120

NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

 1
74559-20120

NUJ10

 1
74567A - PLATE, E.C.E APPROVED NUMBER
74567-26201

NUJ10..LHD

 1
74567-25041

NUJ10

 1
74567-25041

NUJ10..LHD

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-74010

KGJ10,NGJ10,NUJ10

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-74010

KGJ10,NGJ10,NUJ10

 2
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-12010

KGJ10,NGJ10,NUJ10

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-74020

KGJ10,NUJ10

 1
42661-74020

KGJ10,NUJ10

SPARE TIRE-WITHOUT & WITHOUT(REPAIR KIT)

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

KGJ10,NGJ10,NUJ10

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88723-28220

KGJ10,NGJ10,NUJ10

 1
C6177 - LABEL, HEATER NOTICE
C6177-74010

NUJ10..LHD

COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT

 1

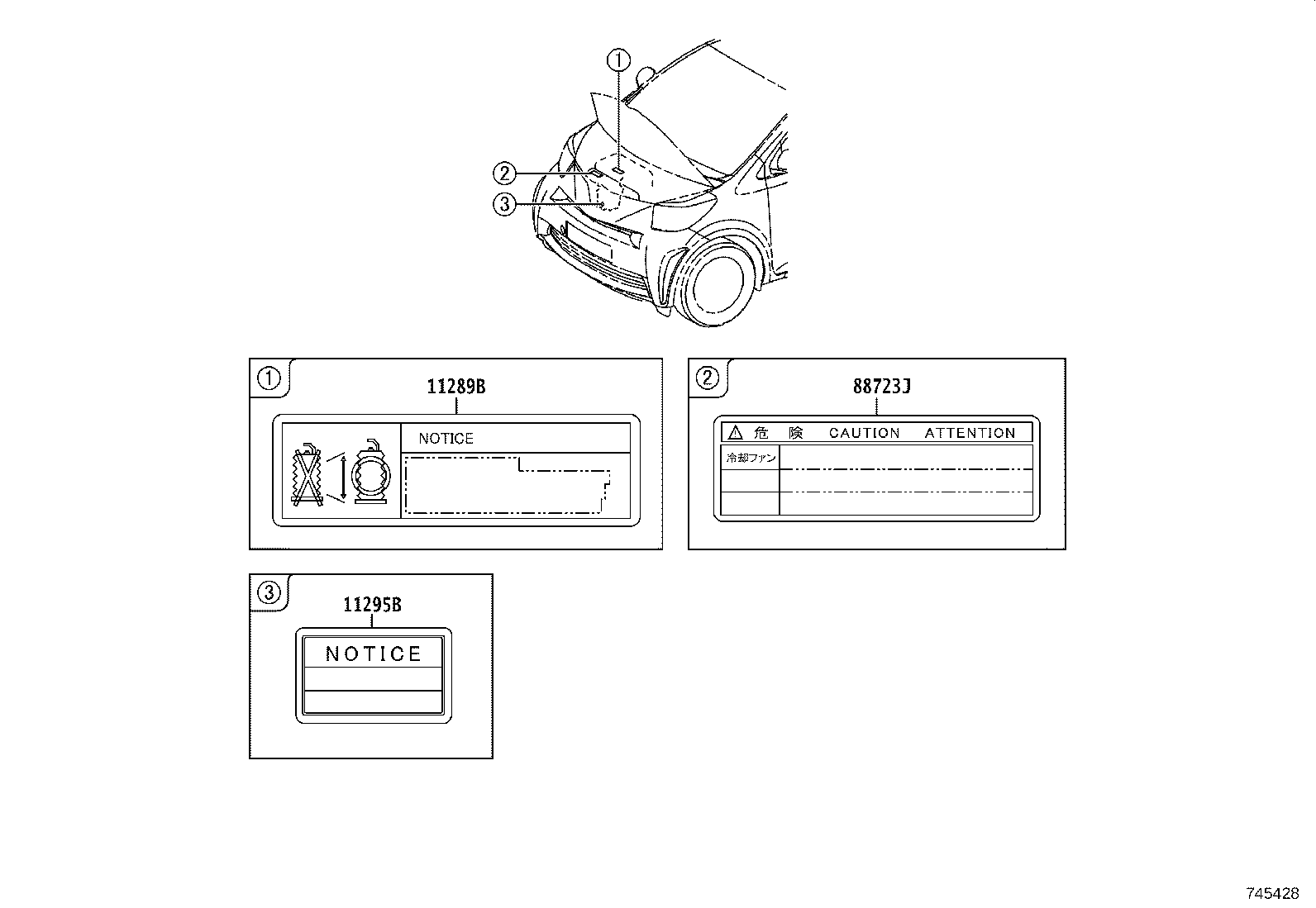

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 11289B 11295B 88723J
Part # Description Qty Price
11295B - LABEL, ENGINE SERVICE NOTICE, NO.1
11295-33020

1NDTV..NUJ10

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-20081

KGJ10,NGJ10,NUJ10

 1
