NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

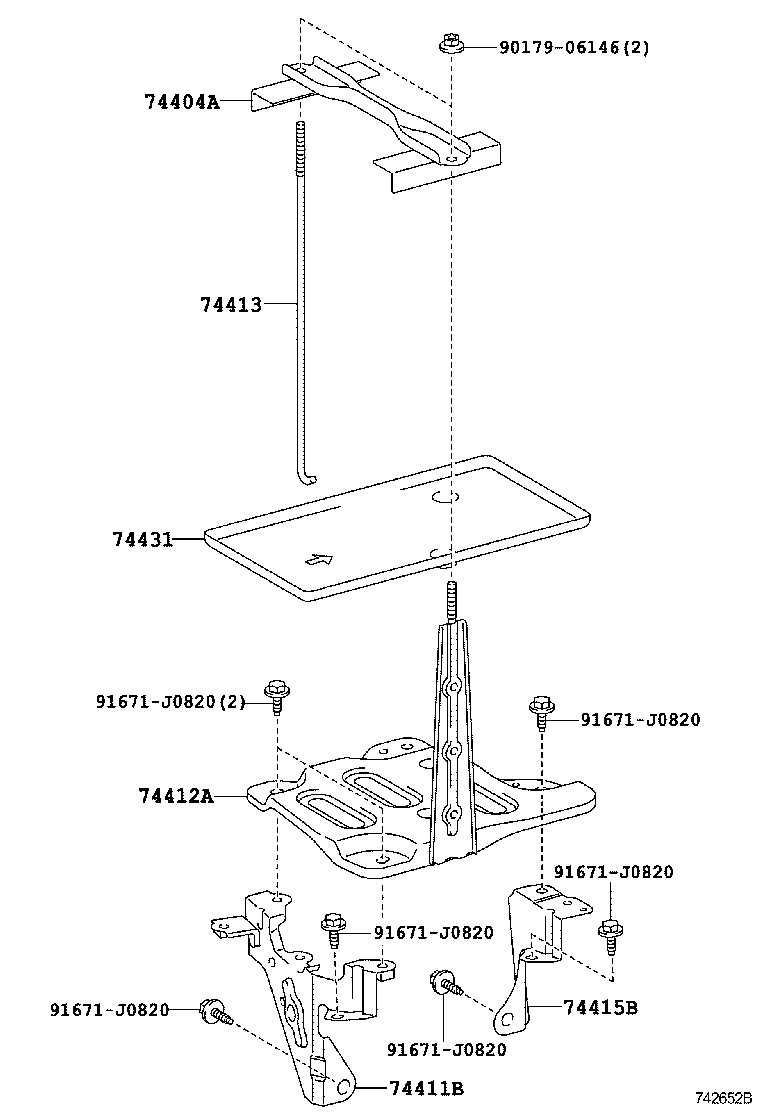

Click highlighted areas on diagram

diagram 74404A 74411B 74412A 74413 74415B 74431 9017906146 91671J0820 91671J0820 91671J0820 91671J0820 91671J0820 91671J0820
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-74020

NGJ10,NUJ10..6F

 1
74411B - BRACKET, BATTERY, FRONT
74401-74010

KGJ10,NGJ10,NUJ10

 1
74412A - CARRIER, BATTERY, NO.2
74410-74010

KGJ10..5F..N;NGJ10,NUJ10..6F

 1
74413 - BOLT, BATTERY CLAMP
74451-58011

KGJ10,NGJ10,NUJ10

 1
74415B - REINFORCEMENT, BATTERY BRACKET, REAR
74415-74510

KGJ10,NGJ10,NUJ10

 1
74431 - TRAY, BATTERY
74431-52040

NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
74431-52010

NGJ10,NUJ10..6F

 1
74431-14030

NUJ10..LHD

COLD AREA SPEC(A RANK)

 1
74431-52040

NUJ10..LHD

COLD AREA SPEC(A RANK)

 1
74431-14030

NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
Common parts
90179-06146
91671-J0820
