NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

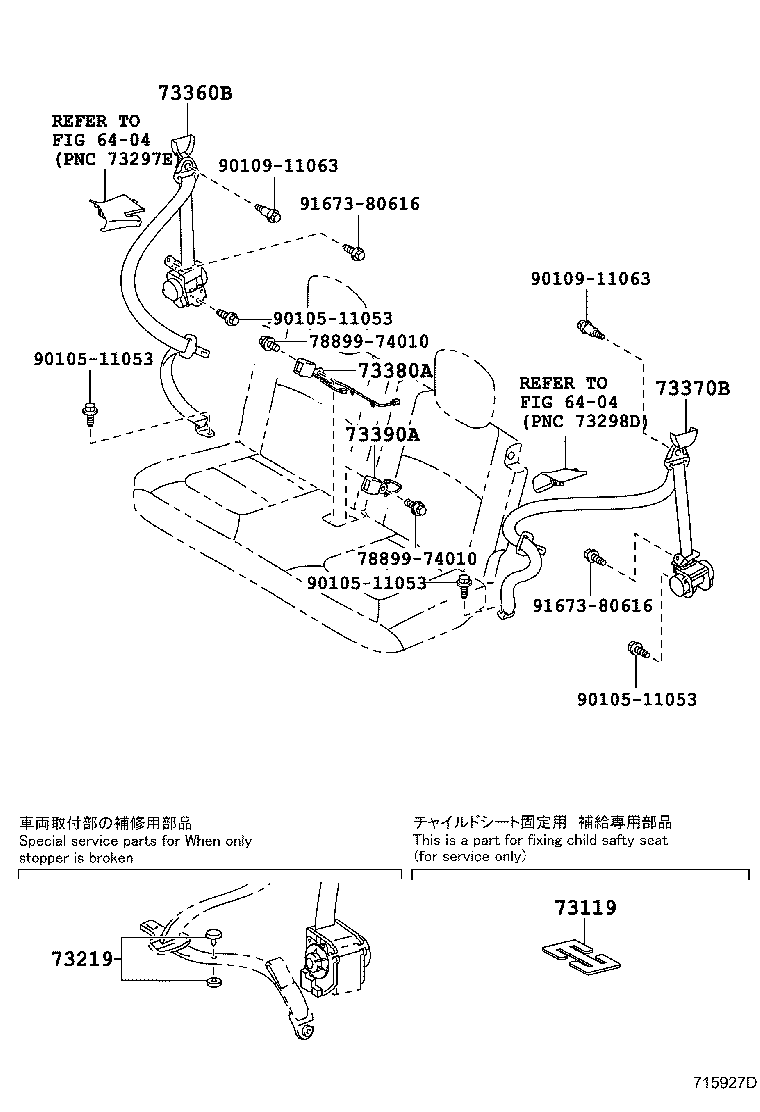

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

REAR SEAT

diagram 6404 6404 73119 73219 73360B 73370B 73380A 73390A 7889974010 7889974010 9010511053 9010511053 9010511053 9010511053 9010911063 9010911063 9167380616 9167380616
Part # Description Qty Price
73360B - BELT ASSY, REAR SEAT, OUTER
73360-74061C0

KGJ10,NGJ10,NUJ10

BLACK,TRIM1#,4#,5#,7#,9#

 1
73360-74060C0

KGJ10,NGJ10,NUJ10

BLACK,TRIM1#,4#,5#,7#

 1
73360-74040C1

KGJ10,NGJ10,NUJ10

BLACK,TRIM4#

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-74060C0

KGJ10,NGJ10,NUJ10

BLACK,TRIM1#,4#,5#,7#

 1
73370-74061C0

KGJ10,NGJ10,NUJ10

BLACK,TRIM1#,4#,5#,7#,9#

 1
73370-74040C1

KGJ10,NGJ10,NUJ10

BLACK,TRIM4#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-74020C1

KGJ10;NGJ10..N;NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73480-74010C1

KGJ10;NGJ10..N;NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
Common parts
78899-74010
90105-11053
90109-11063
91673-80616
Linked diagrams
6404

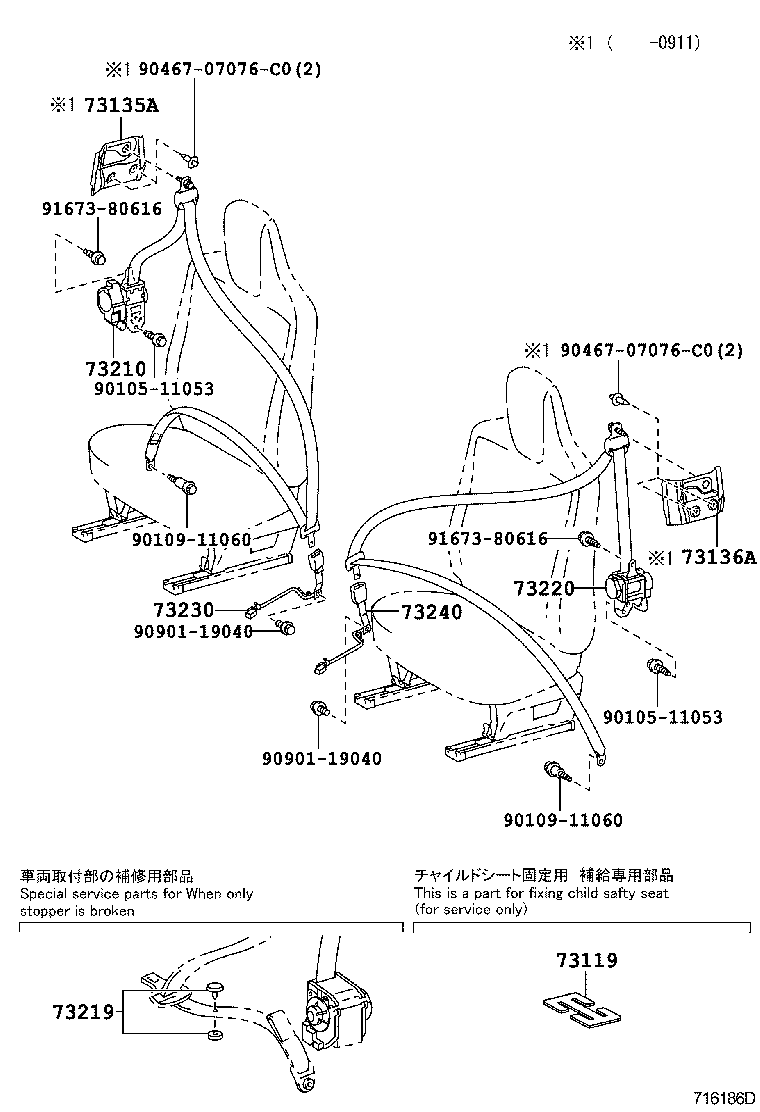

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73119 73135A 73136A 73210 73219 73220 73230 73240 9010511053 9010511053 9010911060 9010911060 9046707076C0 9046707076C0 9090119040 9090119040 9167380616 9167380616
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-74010

KGJ10,NGJ10,NUJ10

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73136-74010

KGJ10,NGJ10,NUJ10

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-74020C2

KGJ10,NGJ10,NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-74010C2

KGJ10,NGJ10,NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-74020C1

KGJ10,NGJ10,NUJ10..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#

 1
73230-74020C1

KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N

BLACK,TRIM1#,4#,5#,9#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-74030C1

KGJ10,NGJ10,NUJ10..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#

 1
73230-74050C0

KGJ10,NUJ10..LHD..MTM..N

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM1#,4#,5#,9#

 1
73230-74010C1

KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N

BLACK,TRIM1#,4#,5#,9#

 1
Common parts
90105-11053
90109-11060
90467-07076C0
90901-19040
91673-80616
