NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )

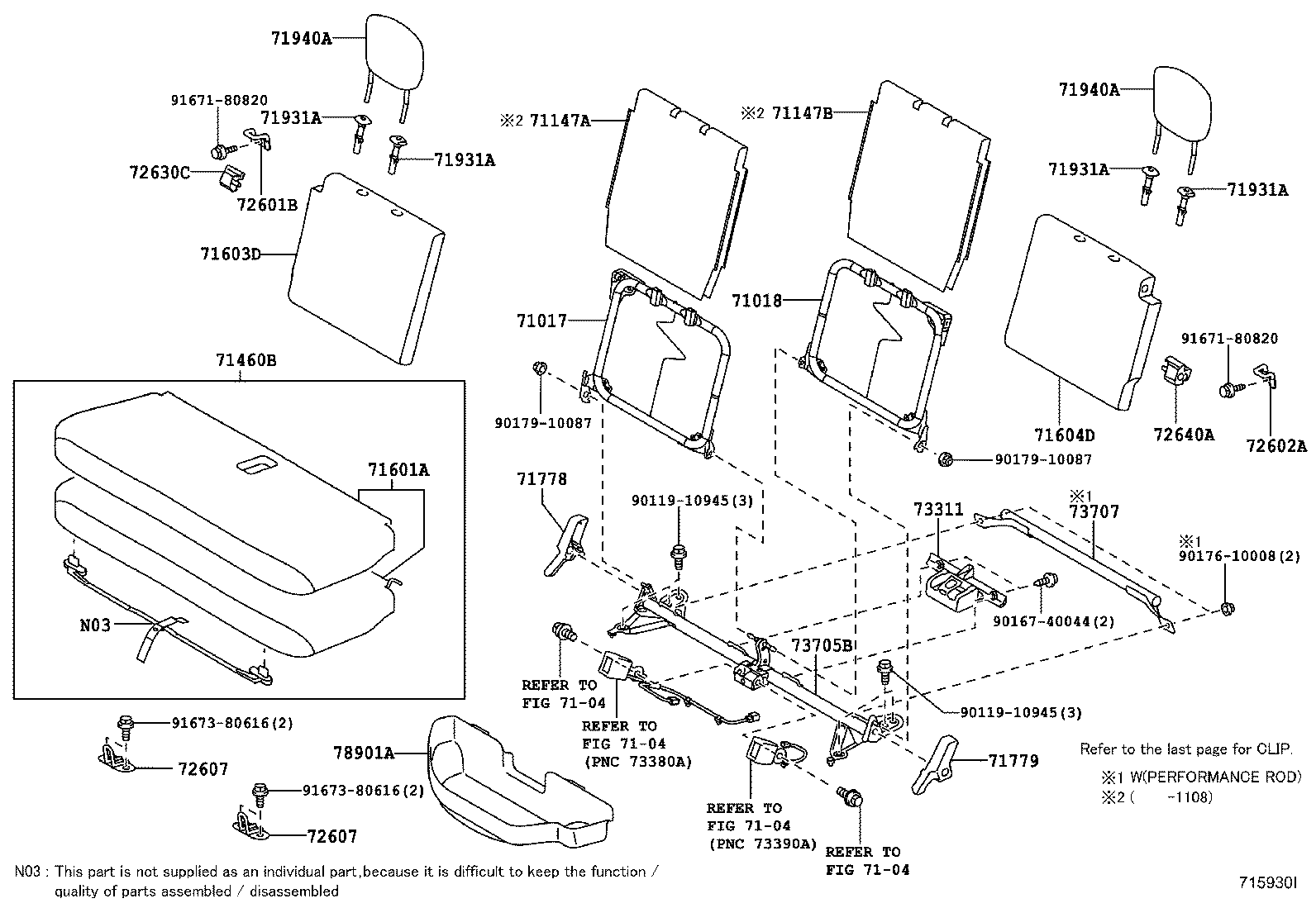

FABRIC SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-74030E5 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM43 |
1 | ||
| 71460-74010E6 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71460-74010E7 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71460-74030F0 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71460-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71460-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71460-74030E6 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAGE,TRIM44 |
1 | ||
| 71460-74010E6 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71460-74030F1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71460-74010F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71460-74010E7 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71460-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71460-74010F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71460-74030E5 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM43 |
1 | ||
| 71460-74030F0 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71460-74030E6 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAGE,TRIM44 |
1 | ||
| 71460-74030F1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71460-74030H0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,73,74,75 |
1 | ||
| 71460-74030H1 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71601-74010E5 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71601-74010E5 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71601-74010E4 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71601-74010F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71601-74010E4 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71601-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71601-74010F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71601-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-74010E2 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71603-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71603-74010E1 |
KGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71603-74010E3 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71603-74010E3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71603-74010E0 |
KGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71603-74010E2 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71603-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71603-74010F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71603-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71603-74010F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-74010E2 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71604-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71604-74010E2 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71604-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71604-74010E1 |
KGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71604-74010E3 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71604-74010E0 |
KGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71604-74010F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71604-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71604-74010E3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71604-74010F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM41,51 |
2 | ||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM41,51 |
2 | ||
| 71940-74020C1 |
KGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM7# |
2 | ||
| 71940-74020E1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74011C1 |
KGJ10,NUJ10..MTM..N BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM41,51 |
2 | ||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM41,51 |
2 | ||
| 71940-74020C1 |
KGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM7# |
2 | ||
| 71940-74020E1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74011C1 |
KGJ10,NUJ10..MTM..N BLACK,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-74020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73311 - COVER, REAR SEAT BELT BUCKLE, UPPER | ||||
| 73311-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-74030 |
NUJ10 |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 53605-74010 |
NUJ10 |
1 | ||
| 78901A - TRAY,SUB-ASSY, REAR SEAT UNDER | ||||
| 78950-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-10945 | ||||
| 90167-40044 | ||||
| 90176-10008 | ||||
| 90179-10087 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0811- )

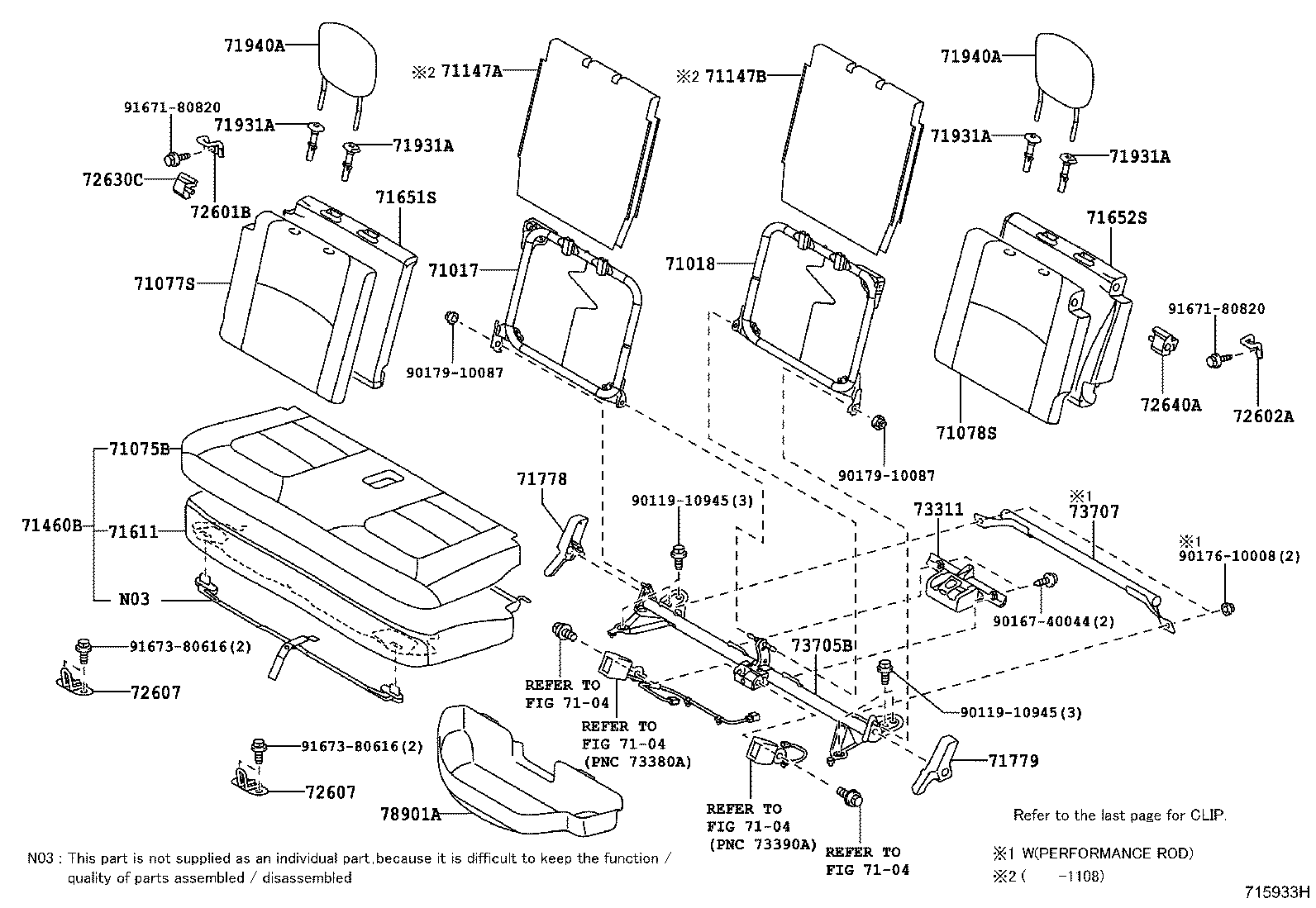

LEATHER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-74050E4 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71075-74050E5 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71075-74050E4 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71075-74050C2 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73 |
1 | ||
| 71075-74050E5 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71075-74050C1 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM70,72,73,74,75 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-74020E4 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71077-74020C2 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71077-74020C2 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71077-74020E4 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71077-74020B0 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73 |
1 | ||
| 71077-74020C3 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71077-74020E5 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM/BLACK,TRIM44,54,58 |
1 | ||
| 71077-74020D3 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM70,72 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-74020C2 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71078-74020C2 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71078-74020E4 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71078-74020B0 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73 |
1 | ||
| 71078-74020E4 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71078-74020C3 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71078-74020D3 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM70,72 |
1 | ||
| 71078-74020E5 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM/BLACK,TRIM44,54,58 |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-74030E5 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM43 |
1 | ||
| 71460-74010E6 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71460-74010E7 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71460-74030F0 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71460-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71460-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71460-74030E6 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAGE,TRIM44 |
1 | ||
| 71460-74010E6 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71460-74030F1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71460-74010F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71460-74010E7 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71460-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71460-74010F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71460-74030E5 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM43 |
1 | ||
| 71460-74030F0 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71460-74030E6 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAGE,TRIM44 |
1 | ||
| 71460-74030F1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71460-74030H0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,73,74,75 |
1 | ||
| 71460-74030H1 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-74010 |
NUJ10..LHD;KGJ10,NGJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-74030 |
NUJ10..LHD;KGJ10,NGJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-74030 |
NUJ10..LHD;KGJ10,NGJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E6 |
KGJ10,NGJ10,NUJ10 W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71930-44020E5 |
KGJ10,NGJ10,NUJ10 W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71930-44020C0 |
NUJ10..LHD;KGJ10..5F..N W(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71930-44020E5 |
NUJ10;KGJ10,NGJ10..LHD W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
2 | ||
| 71931-47010E6 |
NUJ10;KGJ10,NGJ10..LHD W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM BROWN,TRIM44,54,58 |
2 | ||
| 71931-47010C0 |
NUJ10..LHD;KGJ10..5F..N W/O(LOCK),BLACK,TRIM1#,4#,5#,9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM41,51 |
2 | ||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM41,51 |
2 | ||
| 71940-74020C1 |
KGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM7# |
2 | ||
| 71940-74020E1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74011C1 |
KGJ10,NUJ10..MTM..N BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 PLUM,TRIM41,51 |
2 | ||
| 71940-74010B2 |
KGJ10,NGJ10,NUJ10..N SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,40,50,55 |
2 | ||
| 71940-74010B3 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM41,51 |
2 | ||
| 71940-74020C1 |
KGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM7# |
2 | ||
| 71940-74020E1 |
NUJ10;KGJ10,NGJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM4#,5# |
2 | ||
| 71940-74011C1 |
KGJ10,NUJ10..MTM..N BLACK,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-74020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73311 - COVER, REAR SEAT BELT BUCKLE, UPPER | ||||
| 73311-74010C0 |
KGJ10;NGJ10..N;NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-74030 |
NUJ10 |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 53605-74010 |
NUJ10 |
1 | ||
| 78901A - TRAY,SUB-ASSY, REAR SEAT UNDER | ||||
| 78950-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-10945 | ||||
| 90167-40044 | ||||
| 90176-10008 | ||||
| 90179-10087 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0811- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
