NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )

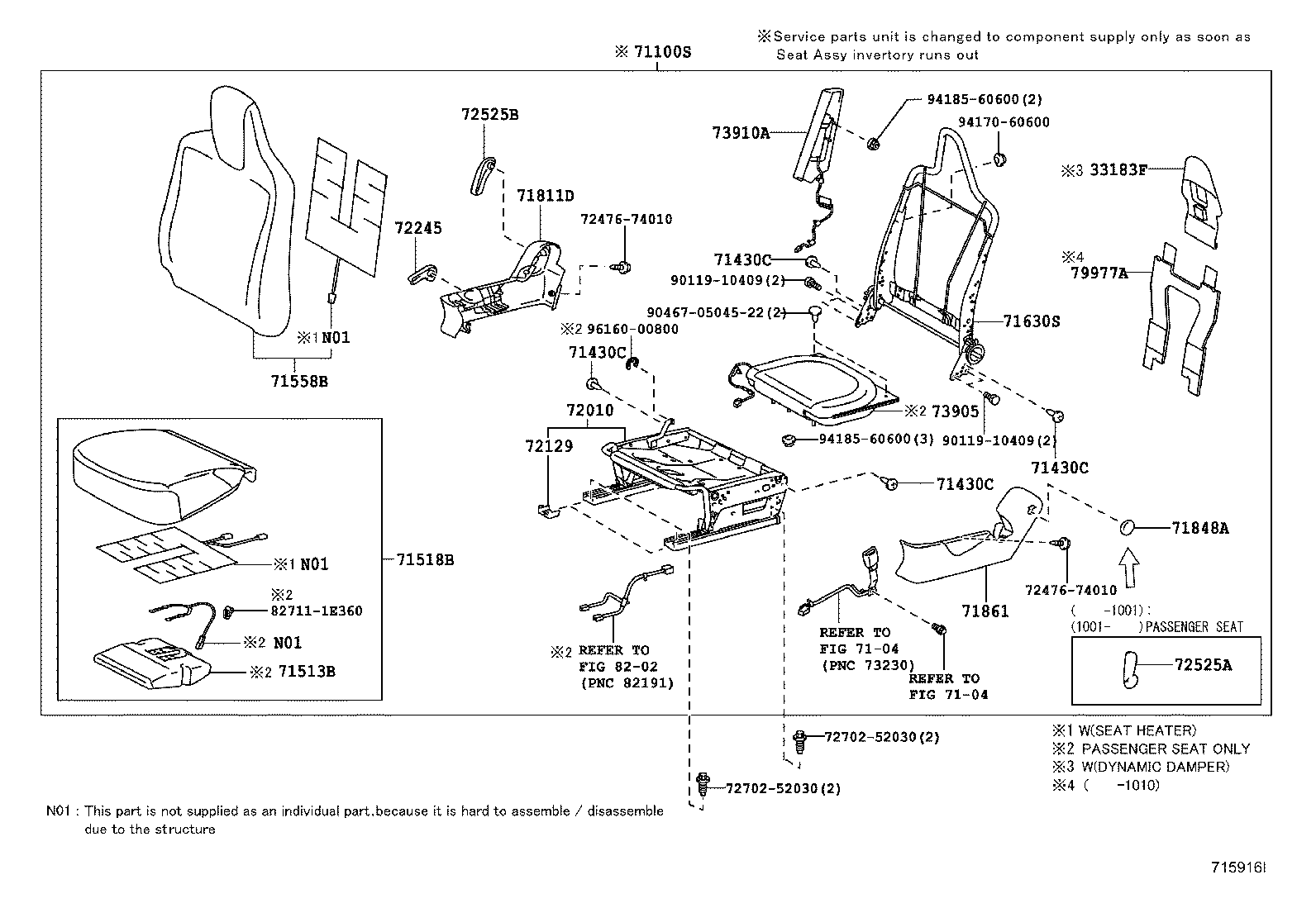

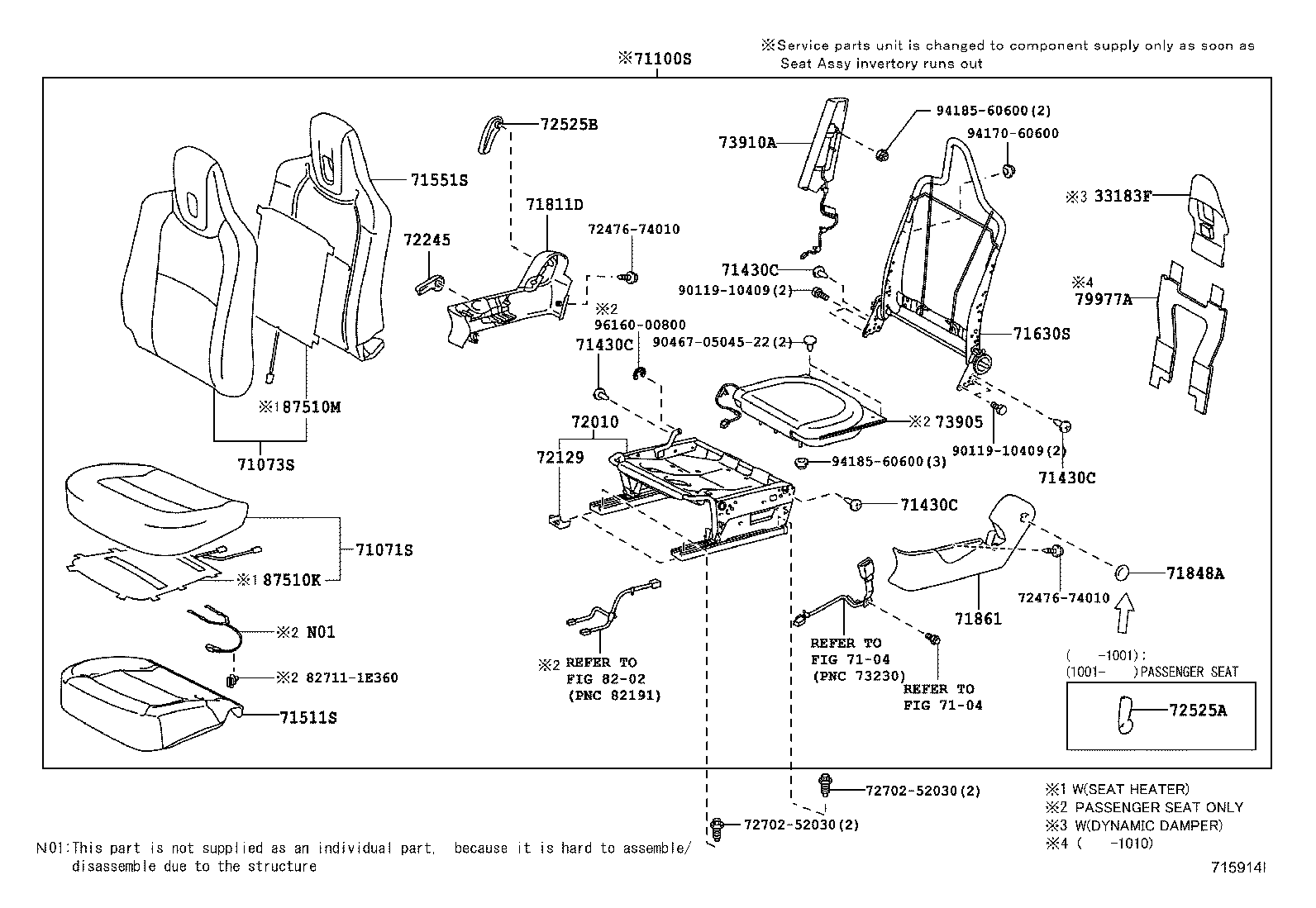

RH SEAT,W(HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-74150E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71071-74150E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71071-74150E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71071-74150C0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM42,70,72,74 |
1 | ||
| 71071-74150C1 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75 |
1 | ||
| 71071-74150E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71071-74150C2 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71071-74150E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71071-74150C3 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71071-74150E3 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-74100E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71073-74100E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71073-74100E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71073-74100E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71073-74100C1 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM42,70,72,74 |
1 | ||
| 71073-74100C2 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM71,73 |
1 | ||
| 71073-74101E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71073-74101C1 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71073-74101C2 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71073-74101E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-74040F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74040E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71100-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71100-74040E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71100-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74040F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71100-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71100-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71100-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE XPLUM,TRIM44 |
1 | ||
| 71100-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK XPLUM,TRIM43 |
1 | ||
| 71100-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74041K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71100-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74110H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71100-74110H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71100-74061K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71100-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74111F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74111F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74111H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71100-74111E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74111H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71100-74111E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74111H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71100-74111H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71100-74111F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74111E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74111E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74111F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-74060 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-74010 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-74020 |
KGJ10,NUJ10..LHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72245 - LEVER, SEAT TRACK LOCK OPEN, RH | ||||
| 72245-74020C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72507-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH | ||||
| 73905-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-74030 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-74020 |
NUJ10..LHD;KGJ10,NGJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-74020 |
NUJ10..LHD;KGJ10,NGJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 82711-1E360 | ||||
| 90119-10409 | ||||
| 90467-0504522 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(0811- )

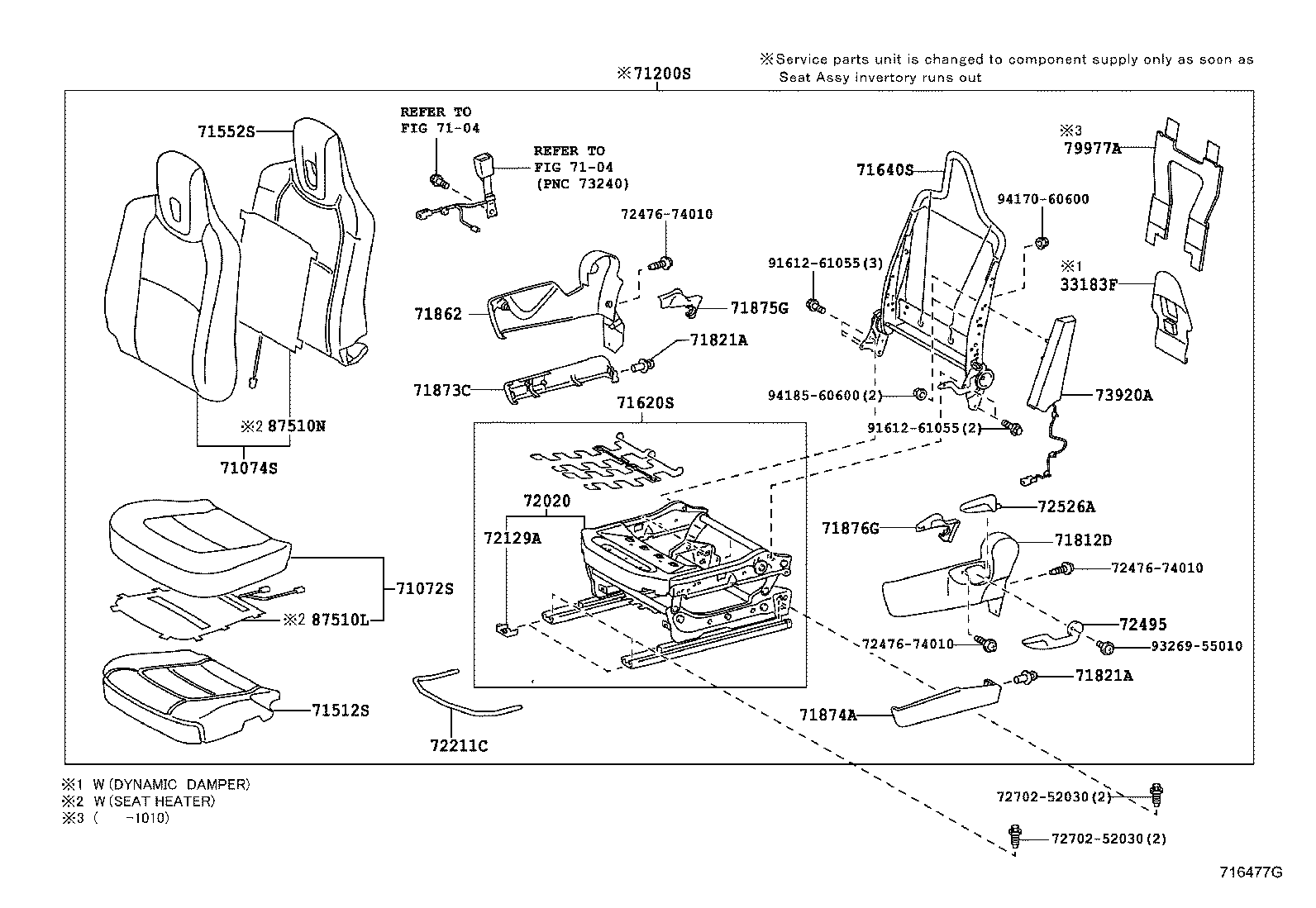

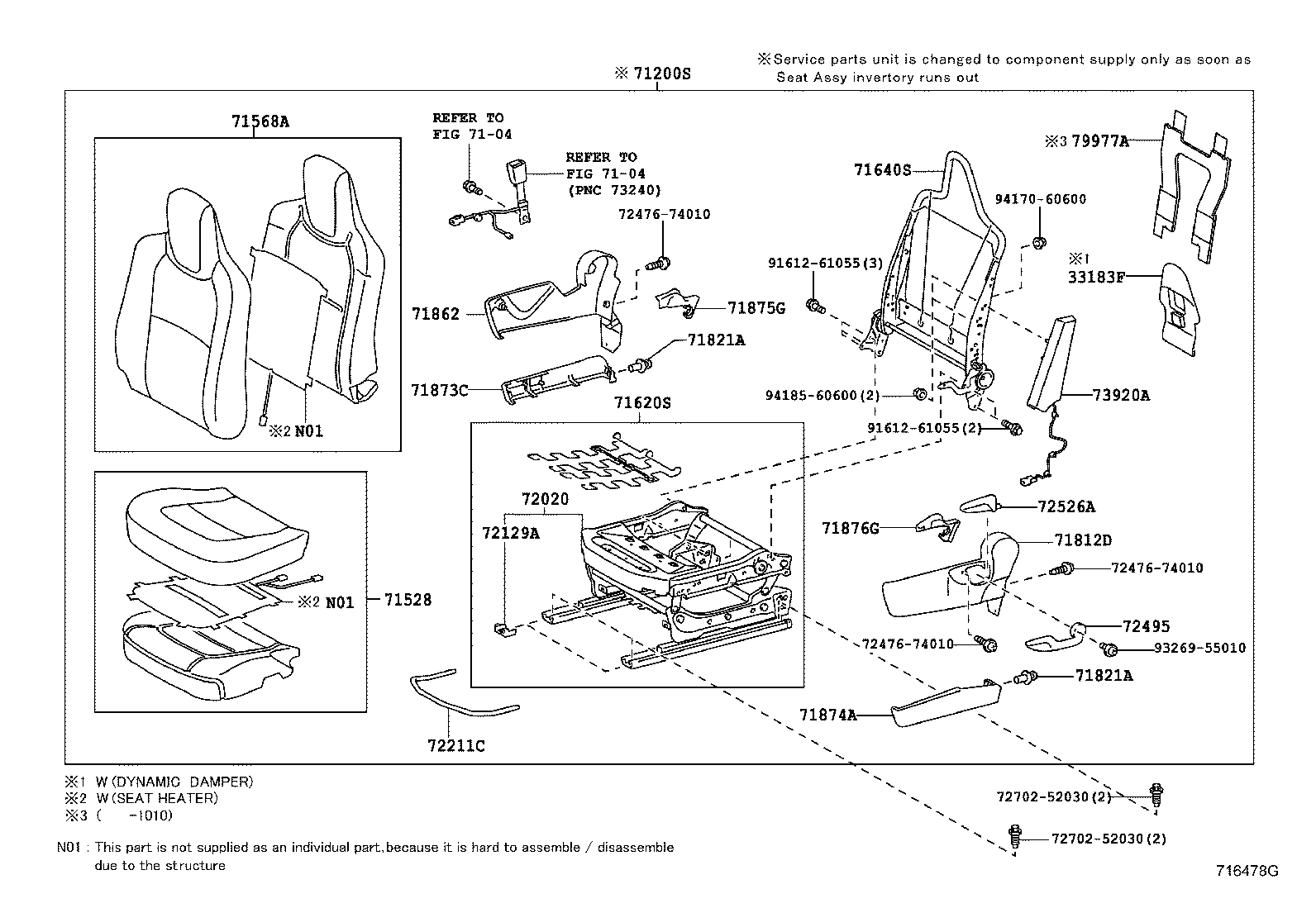

LH,W(HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-74180E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71072-74200E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71072-74180E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200C1 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75 |
1 | ||
| 71072-74200C0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM70,72,74 |
1 | ||
| 71072-74200C2 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71072-74200C3 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71072-74200E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200E3 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-74070E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71074-74070 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-74090E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71074-74070E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71074-74090E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71074-74090C0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM70,72,74 |
1 | ||
| 71074-74090C1 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM71,73 |
1 | ||
| 71074-74091C1 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71074-74091E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71074-74091C0 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71074-74091E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-74050E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71200-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74050F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74050E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71200-74050F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74061E6 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74051B0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71200-74061E8 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74061F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74111F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74111E4 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74061F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74111F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74111E3 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74220E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74230E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74220F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGH SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74230F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74240E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74240F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74240E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74052K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74231K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74221K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71200-74240H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71200-74241E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71200-74241H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-74080 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-74010 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-74010 |
KGJ10,NUJ10..LHD |
1 | ||
| 71640-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-74010 |
NUJ10..LHD |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72129-74010 |
NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 72246 - LEVER, SEAT TRACK LOCK OPEN, LH | ||||
| 72246-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72507-74020C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-74020 |
NGJ10..RHD;KGJ10,NUJ10;NGJ10..LHD..6F..N |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-74020 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-74020 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 82711-1E360 | ||||
| 90119-10409 | ||||
| 90467-0504522 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(0811- )
RH,W/O(HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-74040F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74040E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71100-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71100-74040E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71100-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74040F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71100-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71100-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71100-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE XPLUM,TRIM44 |
1 | ||
| 71100-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71100-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71100-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK XPLUM,TRIM43 |
1 | ||
| 71100-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74041K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71100-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74110H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71100-74110H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71100-74061K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71100-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74111F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74111F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71100-74111H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71100-74111E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74111H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71100-74111E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74111H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71100-74111H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71100-74111F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71100-74111E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71100-74111E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71100-74111F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-74010 |
KGJ10,NUJ10;NGJ10..6F..N |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-74030E4 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71518-74030E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71518-74040E2 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71518-74040E4 |
KGJ10,NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71518-74040F1 |
KGJ10,NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71518-74030F0 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71518-74030F1 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71518-74040F0 |
KGJ10,NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71518-74030E2 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71518-74030F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71518-74030E4 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71518-74030F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71518-74031K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71518-74031B0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71518-74041K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71518-74041B2 |
KGJ10,NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71518-74041B3 |
KGJ10,NUJ10..LHD..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71518-74031B1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-74010E0 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71558-74010F0 |
NGJ10;KGJ10,NUJ10..MTM STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71558-74020E0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71558-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71558-74010F1 |
NGJ10;KGJ10,NUJ10..MTM STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71558-74020F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71558-74020F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71558-74010E1 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71558-74020E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71558-74020E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71558-74020F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71558-74020F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71558-74021K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71558-74021B1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71558-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71558-74011B4 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71558-74021K2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71558-74011B3 |
KGJ10,NGJ10,NUJ10 N STD BLACK SEAT,TRIM1# |
1 | ||
| 71558-74021B2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71558-74011K2 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-74020 |
KGJ10,NUJ10..LHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72245 - LEVER, SEAT TRACK LOCK OPEN, RH | ||||
| 72245-74020C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72507-74010C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH | ||||
| 73905-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-74030 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 82711-1E360 | ||||
| 90119-10409 | ||||
| 90467-0504522 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(0811- )
LH,W/O(HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-74050E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71200-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74050F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74050E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71200-74050F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74061E6 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74051B0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71200-74061E8 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74061F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74111F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74111E4 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74061F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74111F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74111E3 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74220E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74230E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74220F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGH SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74230F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74240E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74240F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74240E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74052K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74231K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74221K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71200-74240H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71200-74241E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71200-74241H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71430C - CLIP | ||||
| 90467-08188 |
KGJ10..LHD..R;KGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N |
8 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-74010 |
KGJ10,NUJ10;NGJ10..6F..N |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-74030E4 |
KGJ10,NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71528-74030E2 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71528-74050E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71528-74050F0 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74030F0 |
KGJ10,NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74030F1 |
KGJ10,NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74050F1 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74050E4 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71528-74060E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71528-74060E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71528-74070E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71528-74070E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71528-74060F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74070F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74061B0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74031B0 |
KGJ10,NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74061K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74071B0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74071K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74031K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74031 |
KGJ10,NUJ10..LHD..MTM..N |
1 | ||
| 71528-74070F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74071B1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74031B1 |
KGJ10,NUJ10..LHD..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74071K1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74061B1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74060F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74061K1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-74010E0 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71568-74020E0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71568-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71568-74020F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74010E1 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71568-74020F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74050E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71568-74050F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74050E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHTK SEAT,TRIM41 |
1 | ||
| 71568-74060E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71568-74060E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71568-74060F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74051K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74061K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74050F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74060F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74051B1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011B3 |
KGJ10,NGJ10,NUJ10 N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011B4 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011K2 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74051B2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74061B1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74061K2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74061B2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74051K2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-74010 |
KGJ10,NUJ10..LHD |
1 | ||
| 71640-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-74010 |
NUJ10..LHD |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72129-74010 |
NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 72246 - LEVER, SEAT TRACK LOCK OPEN, LH | ||||
| 72246-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72507-74020C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-74020 |
NGJ10..RHD;KGJ10,NUJ10;NGJ10..LHD..6F..N |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 82711-1E360 | ||||
| 90119-10409 | ||||
| 90467-0504522 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(0911- )LHD
LH,W(LIFTER & HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-74180E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71072-74200E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71072-74180E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200C1 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75 |
1 | ||
| 71072-74200C0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM70,72,74 |
1 | ||
| 71072-74200C2 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71072-74200C3 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71072-74200E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71072-74200E3 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-74070E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71074-74070 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-74090E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71074-74070E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58 |
1 | ||
| 71074-74090E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57 |
1 | ||
| 71074-74090C0 |
KGJ10,NGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM70,72,74 |
1 | ||
| 71074-74090C1 |
KGJ10,NUJ10..LHD..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM71,73 |
1 | ||
| 71074-74091C1 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73 |
1 | ||
| 71074-74091E0 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57 |
1 | ||
| 71074-74091C0 |
KGJ10,NUJ10..LHD..(6F,CVFC) SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72 |
1 | ||
| 71074-74091E1 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-74050E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71200-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74050F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74050E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71200-74050F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74061E6 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74051B0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71200-74061E8 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74061F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74111F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74111E4 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74061F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74111F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74111E3 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74220E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74230E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74220F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGH SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74230F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74240E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74240F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74240E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74052K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74231K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74221K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71200-74240H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71200-74241E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71200-74241H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-74080 |
KGJ10,NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-74010 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-74010 |
KGJ10,NUJ10..LHD |
1 | ||
| 71640-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-74010 |
NUJ10..LHD |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72129-74010 |
NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72507-74020C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-74020 |
NGJ10..RHD;KGJ10,NUJ10;NGJ10..LHD..6F..N |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-74020 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-74020 |
KGJ10,NGJ10,NUJ10 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 91612-61055 | ||||
| 93269-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0911- )LHD
LH,W(LIFTER) & W/O(HEADREST HOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-74050E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71200-74060E8 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74110E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74050F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74050E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71200-74050F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74060E6 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74110E4 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74110F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74110F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74060F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74061E6 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71200-74051B0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71200-74061E8 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71200-74061F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74111F0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74111E4 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44 |
1 | ||
| 71200-74061F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74111F1 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74111E3 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD..MTM SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43 |
1 | ||
| 71200-74220E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74230E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71200-74220E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71200-74220F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGH SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74230F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71200-74230F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71200-74240E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74240F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74240E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74052K0 |
NUJ10 N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74231K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74221K0 |
NUJ10 FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71200-74240H2 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73 |
1 | ||
| 71200-74240H0 |
NGJ10,NUJ10..LHD;KGJ10..LHD..5F..N SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74 |
1 | ||
| 71200-74241E0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241E1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241H1 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71200-74241H0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241F0 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241F2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57 |
1 | ||
| 71200-74241E3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44 |
1 | ||
| 71200-74241F3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58 |
1 | ||
| 71200-74241E2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43 |
1 | ||
| 71200-74241H2 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72 |
1 | ||
| 71200-74241H3 |
KGJ10..LHD..5F;NGJ10,NUJ10..LHD SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-74030E4 |
KGJ10,NGJ10,NUJ10..LHD LIGHT,TRIM41 |
1 | ||
| 71528-74030E2 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM40 |
1 | ||
| 71528-74050E2 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71528-74050F0 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74030F0 |
KGJ10,NGJ10,NUJ10..LHD STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74030F1 |
KGJ10,NGJ10,NUJ10..LHD STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74050F1 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74050E4 |
KGJ10,NGJ10,NUJ10..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71528-74060E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71528-74060E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71528-74070E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71528-74070E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71528-74060F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74070F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71528-74061B0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74031B0 |
KGJ10,NGJ10,NUJ10..LHD N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74061K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74071B0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74071K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74031K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74031 |
KGJ10,NUJ10..LHD..MTM..N |
1 | ||
| 71528-74070F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74071B1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74031B1 |
KGJ10,NUJ10..LHD..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74071K1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71528-74061B1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71528-74060F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71528-74061K1 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-74010E0 |
KGJ10,NGJ10,NUJ10 BLACK,TRIM40 |
1 | ||
| 71568-74020E0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40 |
1 | ||
| 71568-74010F1 |
KGJ10,NGJ10,NUJ10 STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74020E1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41 |
1 | ||
| 71568-74020F0 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74010E1 |
KGJ10,NGJ10,NUJ10 LIGHT,TRIM41 |
1 | ||
| 71568-74020F1 |
KGJ10,NGJ10,NUJ10 SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74010F0 |
KGJ10,NGJ10,NUJ10 STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74050E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40 |
1 | ||
| 71568-74050F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74050E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHTK SEAT,TRIM41 |
1 | ||
| 71568-74060E1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41 |
1 | ||
| 71568-74060E0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40 |
1 | ||
| 71568-74060F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74051K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74061K0 |
KGJ10,NUJ10..LHD..(6F,CVFC) FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74050F1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51 |
1 | ||
| 71568-74011K0 |
KGJ10,NUJ10..6F,CVFC N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74060F0 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55 |
1 | ||
| 71568-74051B1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011B3 |
KGJ10,NGJ10,NUJ10 N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011B4 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74011K2 |
KGJ10,NUJ10..MTM..N N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74051B2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74061B1 |
KGJ10,NGJ10,NUJ10..LHD FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74061K2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9# |
1 | ||
| 71568-74061B2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1# |
1 | ||
| 71568-74051K2 |
KGJ10,NUJ10..LHD..MTM..N FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-74010 |
KGJ10,NUJ10..LHD |
1 | ||
| 71640-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-74010C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-74010 |
NUJ10..LHD |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 72129-74010 |
NUJ10..LHD SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72507-74020C0 |
KGJ10,NGJ10,NUJ10..LHD BLACK,TRIM1#,4#,5#,7# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-74020 |
NGJ10..RHD;KGJ10,NUJ10;NGJ10..LHD..6F..N |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 79977-74010 |
KGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 72702-52030 | ||||
| 91612-61055 | ||||
| 93269-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0811- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
