NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

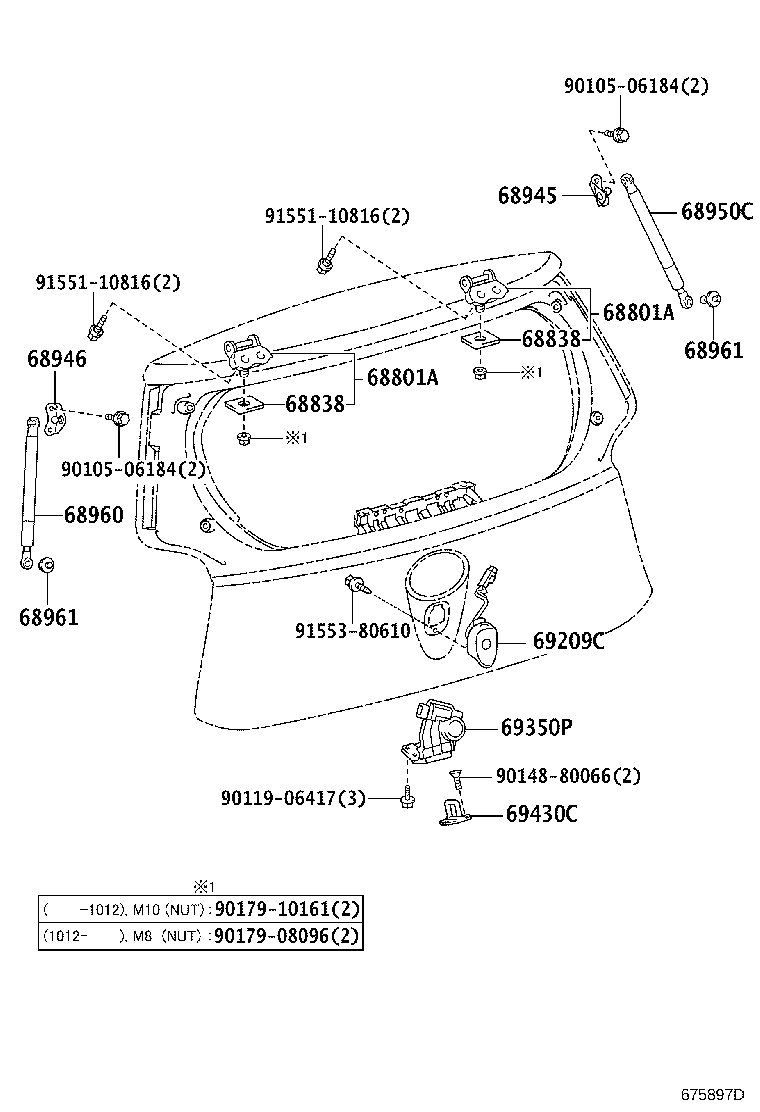

Click highlighted areas on diagram

diagram 68801A 68801A 68838 68838 68945 68946 68950C 68960 68961 68961 69209C 69350P 69430C 9010506184 9010506184 9011906417 9014880066 9017908096 9017910161 9155110816 9155110816 9155380610
Part # Description Qty Price
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

KGJ10,NGJ10,NUJ10

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

KGJ10,NGJ10,NUJ10

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

KGJ10,NGJ10,NUJ10

T=1.1

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

KGJ10,NGJ10,NUJ10

T=1.1

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-74010

KGJ10,NGJ10,NUJ10

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-74010

KGJ10,NGJ10,NUJ10

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W580

NUJ10..LHD

 1
68950-0W560

NUJ10

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-0W570

NUJ10..LHD

 1
68960-0W550

NUJ10

 1
68961 - BOLT, BACK DOOR STAY
68961-12050

KGJ10,NGJ10,NUJ10

 2
68961 - BOLT, BACK DOOR STAY
68961-12050

KGJ10,NGJ10,NUJ10

 2
69209C - HANDLE SUB-ASSY, BACK DOOR, OUTSIDE
69209-74020F0

KGJ10,NGJ10,NUJ10

WIRELESS DOOR LOCK-SMART KEY,SILKY GOLD M.M.,5A7

 1
69209-74010G0

KGJ10,NGJ10,NUJ10

JADE GREEN METALLIC,6V5

 1
69209-74010C0

NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N

BLACK MC.,209

 1
69209-74020G0

KGJ10,NGJ10,NUJ10

WIRELESS DOOR LOCK-SMART KEY,JADE GREEN METALLIC,6V5

 1
69209-74020J1

KGJ10,NGJ10,NUJ10

WIRELESS DOOR LOCK-SMART KEY,BLUE ME.,8T7

 1
69209-74020K0

KGJ10,NGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,DEEP AMETHYST M.M.,9AH

 1
69209-74010F0

KGJ10,NGJ10,NUJ10

SILKY GOLD M.M.,5A7

 1
69209-74010J1

KGJ10,NGJ10,NUJ10

BLUE ME.,8T7

 1
69209-74010K0

NGJ10..RHD;NGJ10..LHD..6F;KGJ10,NUJ10..MTM..N

DEEP AMETHYST M.M.,9AH

 1
69209-74020E0

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY,BRONZE M.M.,4T3

 1
69209-74010E0

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

BRONZE M.M.,4T3

 1
69209-74010D0

KGJ10,NUJ10;NGJ10..LHD..R

SUPER RED 5,3P0

 1
69209-74010B0

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

SILVER ME.,1F7

 1
69209-74020A0

KGJ10,NGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,WHITE PEARL CS.,070

 1
69209-74020D0

KGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,SUPER RED 5,3P0

 1
69209-74010J0

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

GRAYISH BLUE ME.,8R3

 1
69209-74010A0

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WHITE PEARL CS.,070

 1
69209-74020B0

KGJ10,NGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,SILVER ME.,1F7

 1
69209-74020C0

KGJ10,NGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,BLACK MC.,209

 1
69209-74020J0

KGJ10,NGJ10,NUJ10..MTM..N

WIRELESS DOOR LOCK-SMART KEY,GRAYISH BLUE ME.,8R3

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-28150

KGJ10,NGJ10,NUJ10

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-20160

KGJ10,NGJ10,NUJ10

 1
Common parts
90105-06184
90119-06417
90148-80066
90179-08096
90179-10161
91551-10816
91553-80610
