NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

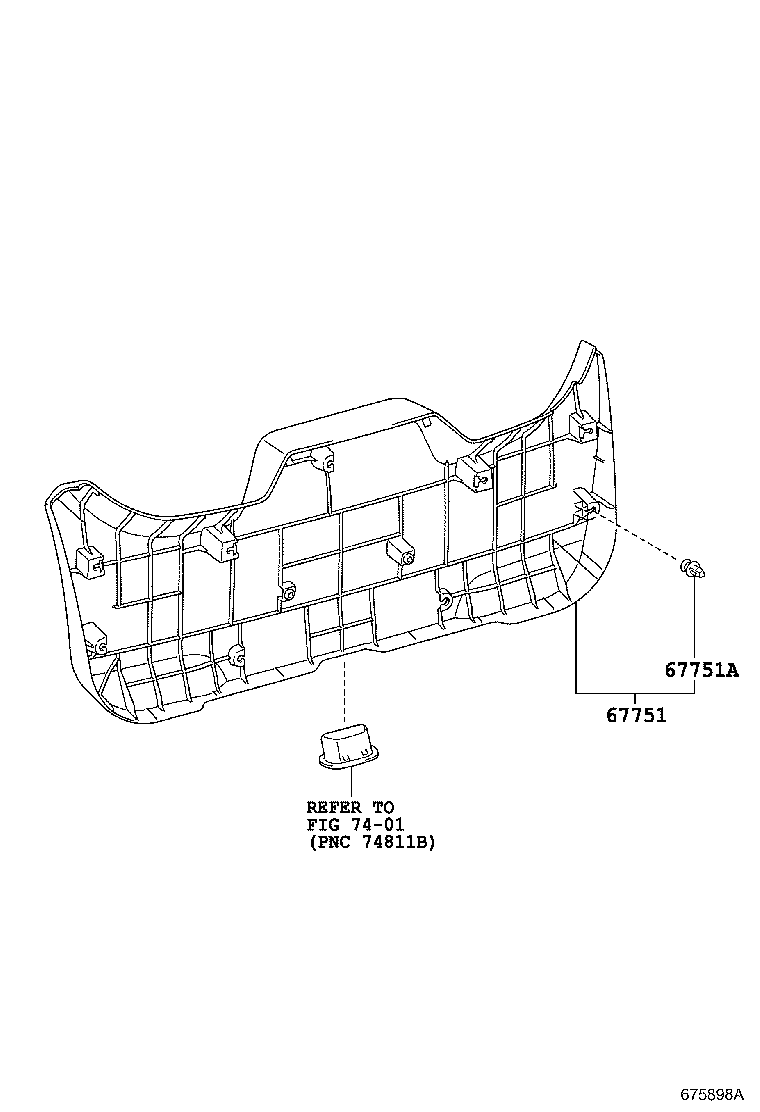

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67751 67751A 7401
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-74010E0

KGJ10,NGJ10,NUJ10

PLUM,TRIM4#,5#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KGJ10,NGJ10,NUJ10

 9
Linked diagrams
7401

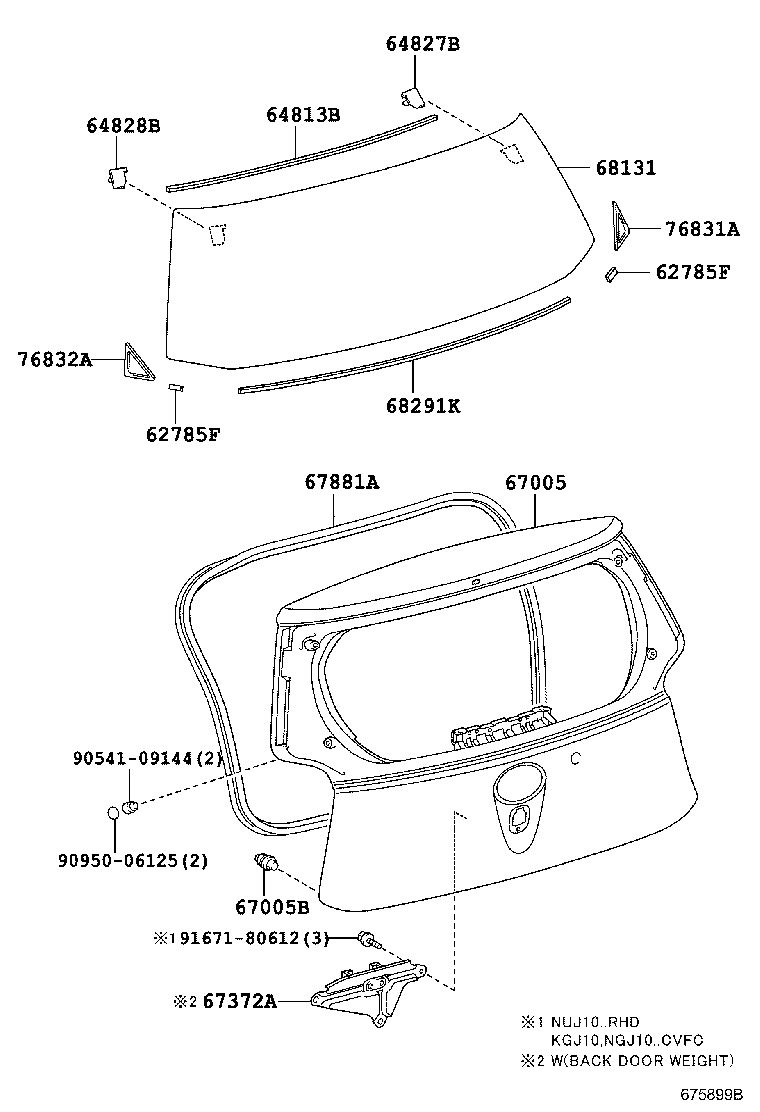

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

DOOR PANEL

diagram 62785F 62785F 64813B 64827B 64828B 67005 67005B 67372A 67881A 68131 68291K 76831A 76832A 9054109144 9095006125 9167180612
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

KGJ10,NGJ10,NUJ10

 2
62785F - SPACER, BACK DOOR GLASS
62785-60030

KGJ10,NGJ10,NUJ10

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
64813-74010

KGJ10,NGJ10,NUJ10

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-74010

KGJ10,NGJ10,NUJ10

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-74010

KGJ10,NGJ10,NUJ10

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-74010

KGJ10,NGJ10,NUJ10

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

KGJ10,NGJ10,NUJ10

 2
67372A - WEIGHT, BACK DOOR
67372-74010

NUJ10..LHD

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-74010

KGJ10,NGJ10,NUJ10

 1
68131 - GLASS, BACK DOOR
68131-74010

KGJ10,NGJ10,NUJ10

*TEM,T=2.8,C.GREEN

 1
68291K - DAM KIT, BACK WINDOW GLASS
64814-74010

KGJ10,NGJ10,NUJ10

 1
76831A - COVER, BACK DOOR FINISH PANEL, RH
76831-74010

KGJ10,NGJ10,NUJ10

 1
76832A - COVER, BACK DOOR FINISH PANEL, LH
76831-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90541-09144
90950-06125
91671-80612
