NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

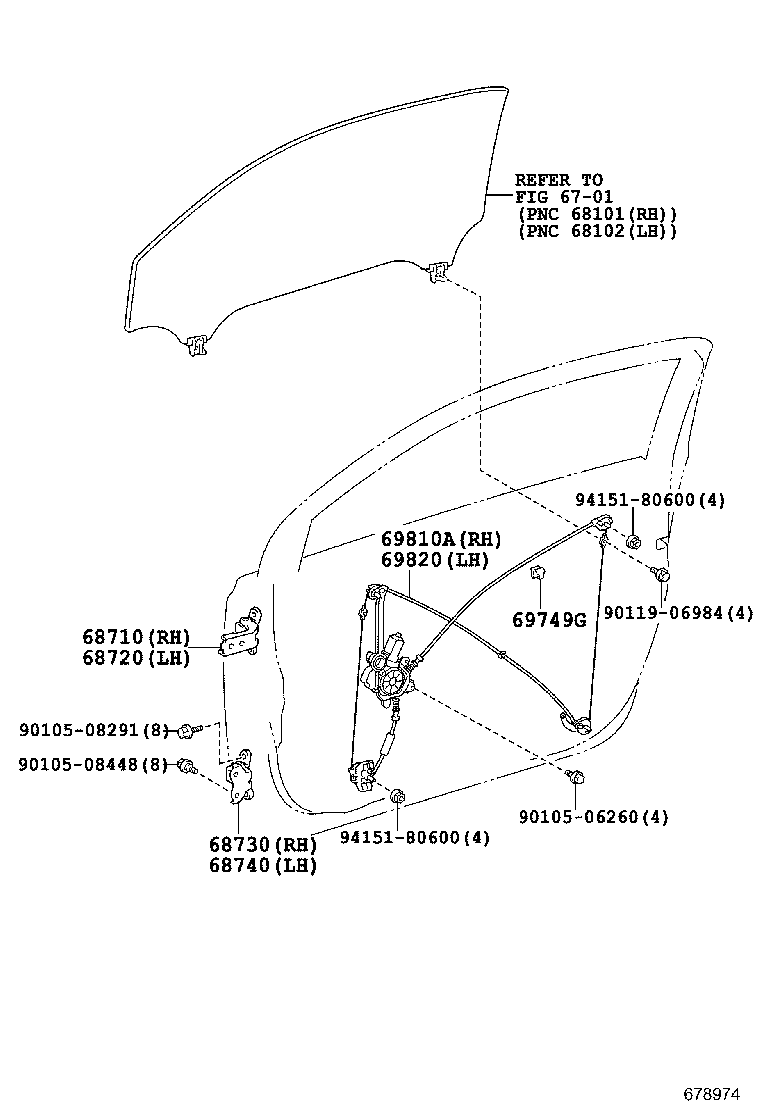

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69749G 69810A 69820 9010506260 9010508291 9010508448 9011906984 9415180600 9415180600
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12151

KGJ10,NGJ10,NUJ10

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

KGJ10,NGJ10,NUJ10

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-74010

KGJ10..5F..N;NGJ10,NUJ10..6F

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-74010

KGJ10..5F..N;NGJ10,NUJ10..6F

 1
69749G - CLAMP(FOR FRONT DOOR WINDOW REGULATOR)
69749-74010

KGJ10,NGJ10,NUJ10

 2
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-74020

KGJ10,NGJ10,NUJ10

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90105-06260
90105-08291
90105-08448
90119-06984
94151-80600
Linked diagrams
6701
