NUJ10L-BGFNWW (2008)
Toyota Iq
ILLUST NO. 2 OF 2(0811- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-74010C0 |
KGJ10,NGJ10,NUJ10 BLACK |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 67771-12060 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-74010C0 |
KGJ10,NGJ10,NUJ10 BLACK |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-74010E0 |
KGJ10,NGJ10,NUJ10..LHD PLUM,TRIM4#,5# |
1 | ||
| 67610-74012C2 |
KGJ10,NGJ10,NUJ10..LHD..N BLACK/LT.GRAY,TRIM14,15,16,7#,9# |
1 | ||
| 67610-74011E0 |
KGJ10,NGJ10,NUJ10..LHD PLUM,TRIM4#,5# |
1 | ||
| 67610-74012C3 |
KGJ10,NGJ10,NUJ10..LHD BLACK/PLUM,TRIM10,12,13,4#,5# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
KGJ10,NGJ10,NUJ10 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-74010E0 |
KGJ10,NGJ10,NUJ10..LHD PLUM,TRIM4#,5# |
1 | ||
| 67620-74011E0 |
KGJ10,NGJ10,NUJ10..LHD PLUM,TRIM4#,5# |
1 | ||
| 67620-74012C3 |
KGJ10,NGJ10,NUJ10..LHD BLACK/PLUM,TRIM10,12,13,4#,5# |
1 | ||
| 67620-74012C2 |
KGJ10,NGJ10,NUJ10..LHD..N BLACK/LT.GRAY,TRIM14,15,16,7#,9# |
1 | ||
| 67661C - BASE, DOOR SPEAKER GRILLE, RH | ||||
| 67661-74010C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 67661-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC SPEAKER GRILLE(TWEETER)-WITH(CHROME PLATED),BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 67662A - BASE, DOOR SPEAKER GRILLE, LH | ||||
| 67662-74010C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 67662-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC SPEAKER GRILLE(TWEETER)-WITH(CHROME PLATED),BLACK,TRIM1#,4#,5#,7#,9# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 85373-12020 | ||||
| 90164-60018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||

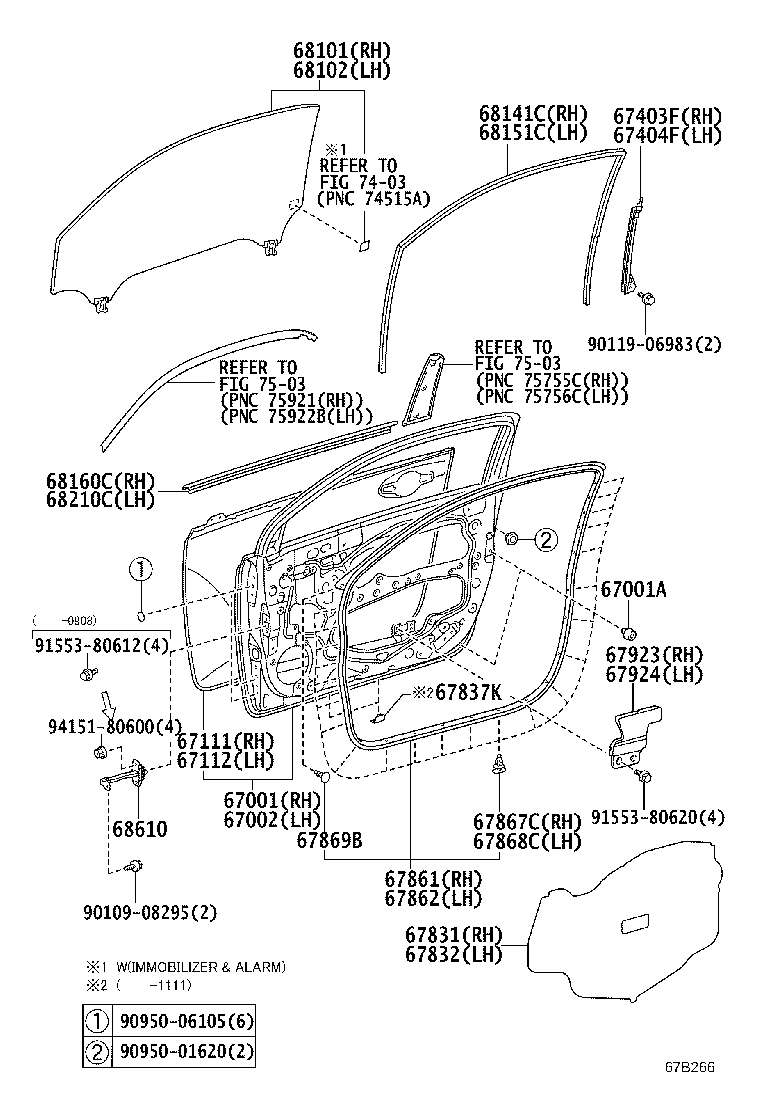

ILLUST NO. 1 OF 2(0811- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67837K - SEAL, FRONT DOOR VENT | ||||
| 67837-74010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-74020 |
KGJ10,NUJ10..LHD..MTM..N COLD AREA SPEC(S RANK) |
1 | ||
| 67861-74020 |
KGJ10,NUJ10..LHD..MTM..N COLD AREA SPEC(A RANK) |
1 | ||
| 67861-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-74020 |
KGJ10,NUJ10..LHD..MTM..N COLD AREA SPEC(A RANK) |
1 | ||
| 67862-74020 |
KGJ10,NUJ10..LHD..MTM..N COLD AREA SPEC(S RANK) |
1 | ||
| 67862-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KGJ10,NGJ10,NUJ10 |
23 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KGJ10,NGJ10,NUJ10 |
23 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-74010 |
KGJ10,NGJ10,NUJ10 *UVCT,T=3.1,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-74010 |
KGJ10,NGJ10,NUJ10 *UVCT,T=3.1,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-74010 |
KGJ10,NUJ10 |
1 | ||
| 68160-74030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-74030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 68210-74010 |
KGJ10,NUJ10 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-74010 |
KGJ10,NUJ10 |
2 | ||
| 68610-74011 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 7503 | ||||
