NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

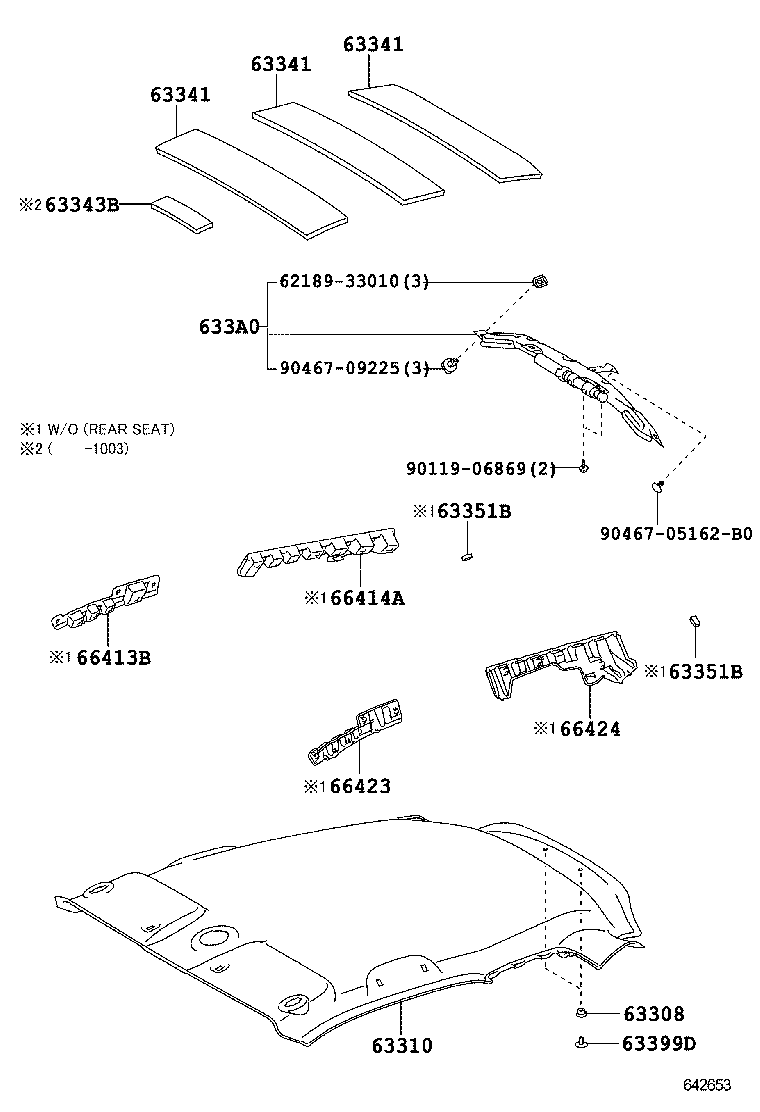

Click highlighted areas on diagram

diagram 6218933010 63308 63310 63341 63341 63341 63343B 63351B 63351B 63399D 633A0 66413B 66414A 66423 66424 9011906869 9046705162B0 9046709225
Part # Description Qty Price
63308 - RETAINER SUB-ASSY, GARNISH MALE
63308-74010

KGJ10,NGJ10,NUJ10

 2
63310 - HEADLINING ASSY, ROOF
63310-74011B0

KGJ10,NGJ10,NUJ10

GRAY,TRIM1#,4#,5#,7#,9#

 1
63310-74010B0

KGJ10,NGJ10,NUJ10..N

GRAY,TRIM1#,4#,5#,7#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-74010

KGJ10,NGJ10,NUJ10

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-74010

KGJ10,NGJ10,NUJ10

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-74010

KGJ10,NGJ10,NUJ10

 3
63343B - PAD, ROOF SILENCER, REAR
63343-74010

KGJ10,NGJ10,NUJ10

 1
63399D - CLIP, ROOF HEADLINING
63399-74010B0

KGJ10;NGJ10..N;NUJ10..LHD

GRAY,TRIM1#,4#,5#,7#,9#

 2
633A0 - AIR BAG ASSY, REAR WINDOW CURTAIN SHIELD
633A0-74020

KGJ10,NGJ10,NUJ10

 1
Common parts
62189-33010
90119-06869
90467-05162B0
90467-09225
