NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

Click highlighted areas on diagram

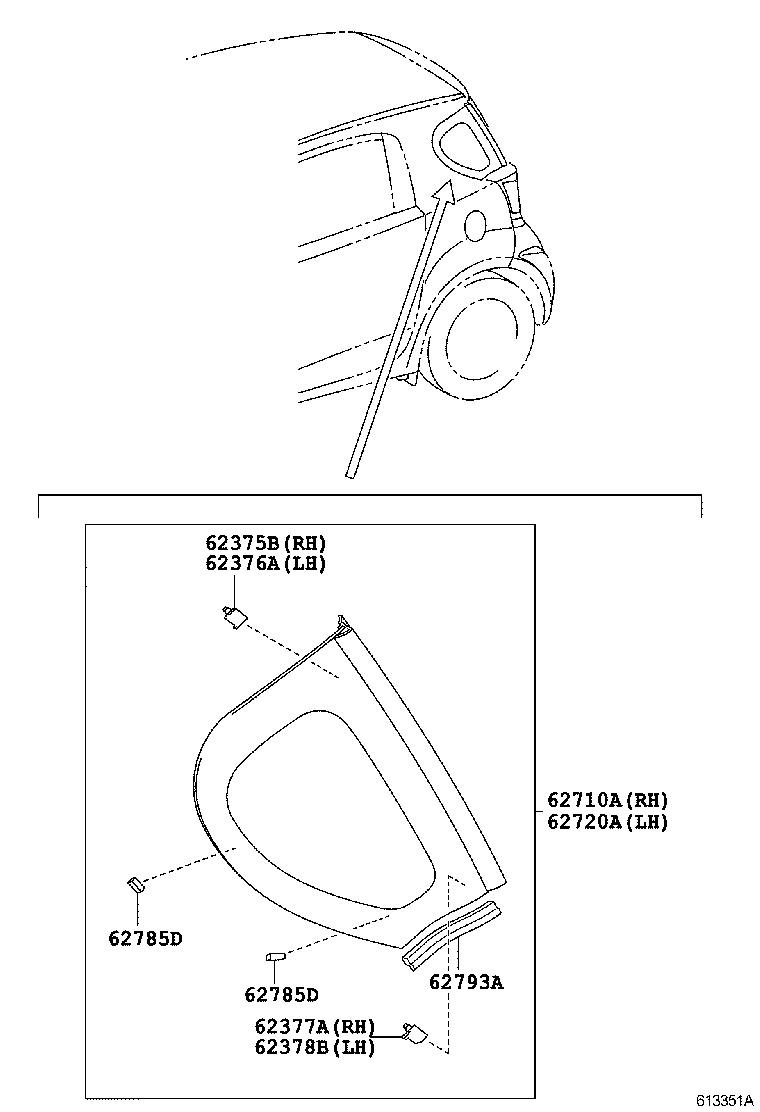

diagram 62375B 62376A 62377A 62378B 62710A 62720A 62785D 62785D 62793A
Part # Description Qty Price
62375B - CLIP, SIDE WINDOW, NO.1
62375-74010

KGJ10,NGJ10,NUJ10

 1
62376A - CLIP, SIDE WINDOW, NO.2
62376-74010

KGJ10,NGJ10,NUJ10

 1
62377A - CLIP, SIDE WINDOW, NO.3
62377-74010

KGJ10,NGJ10,NUJ10

 1
62378B - CLIP, SIDE WINDOW, NO.4
62378-74010

KGJ10,NGJ10,NUJ10

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-74011

KGJ10,NGJ10,NUJ10

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-74011

KGJ10,NGJ10,NUJ10

 1
62785D - SPACER, QUARTER WINDOW GLASS
62785-16030

KGJ10,NGJ10,NUJ10

 4
62785D - SPACER, QUARTER WINDOW GLASS
62785-16030

KGJ10,NGJ10,NUJ10

 4
62793A - MOULDING, QUARTER WINDOW, LOWER
62794-74010

KGJ10,NGJ10,NUJ10

LH

 1
62793-74011

KGJ10,NGJ10,NUJ10

RH

 1
