NUJ10L-BGFNWW (2008)
Toyota Iq

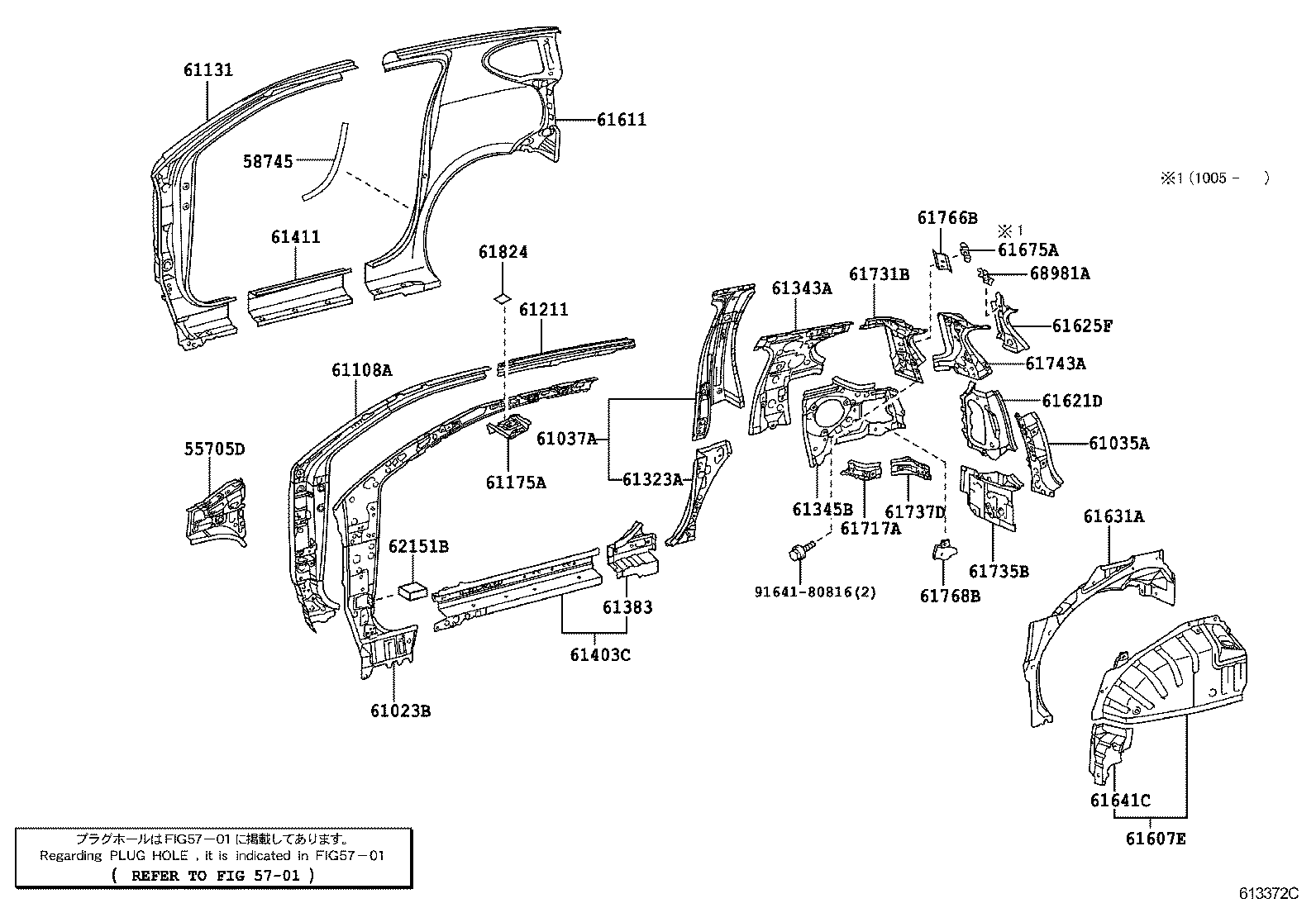

ILLUST NO. 1 OF 2(0811- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-74902 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61023-74904 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61023-74900 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61035A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH | ||||
| 61035-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-74900 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61323-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61383 - EXTENSION, CENTER BODY PILLAR, OUTER RH | ||||
| 61383-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-74010 |
KGJ10,NUJ10 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12070 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 5701 | ||||

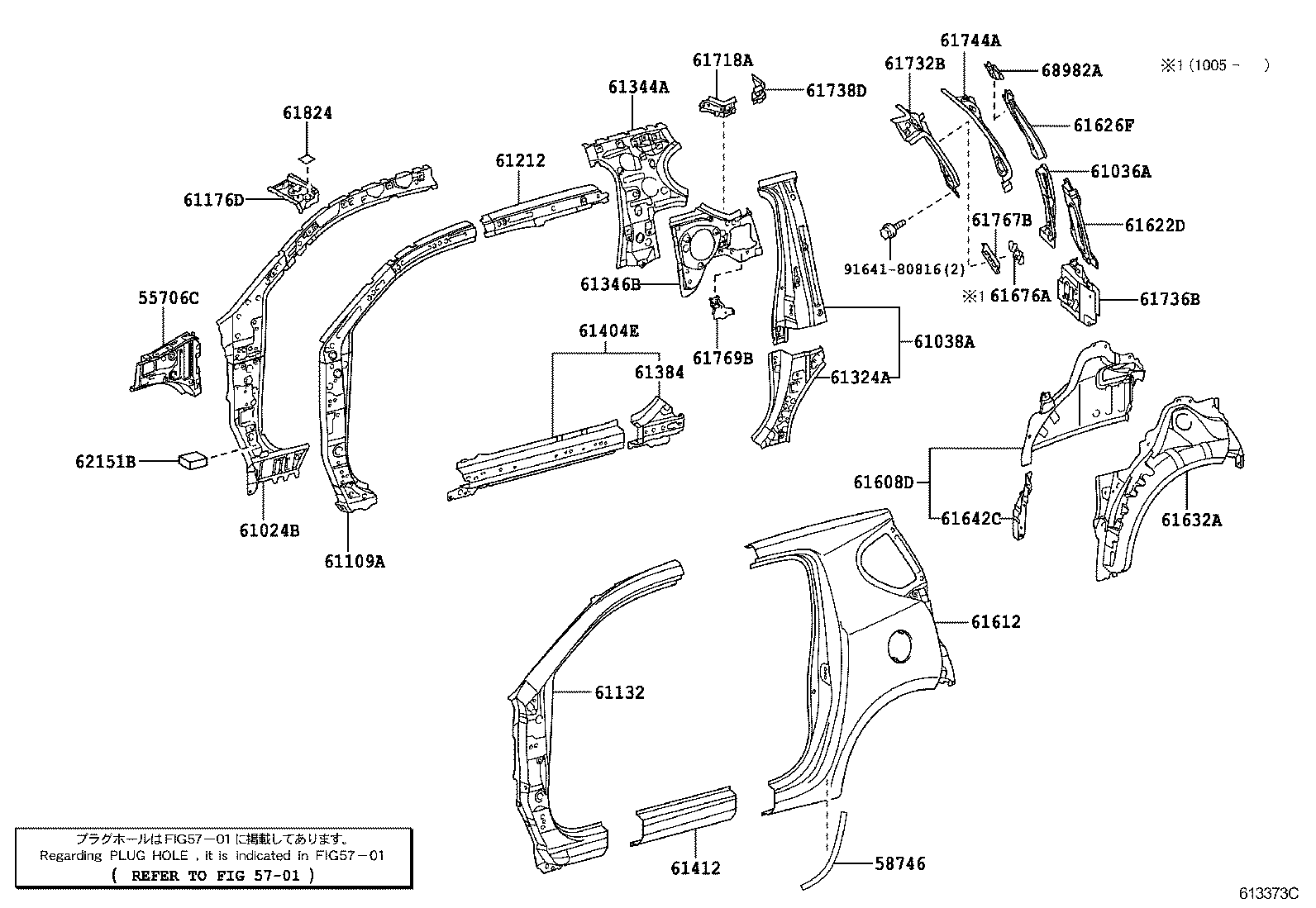

ILLUST NO. 2 OF 2(0811- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-74900 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61024-74902 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61036A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH | ||||
| 61036-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-74900 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61324-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61346-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-74010 |
KGJ10,NUJ10 |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12070 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 5701 | ||||
