NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

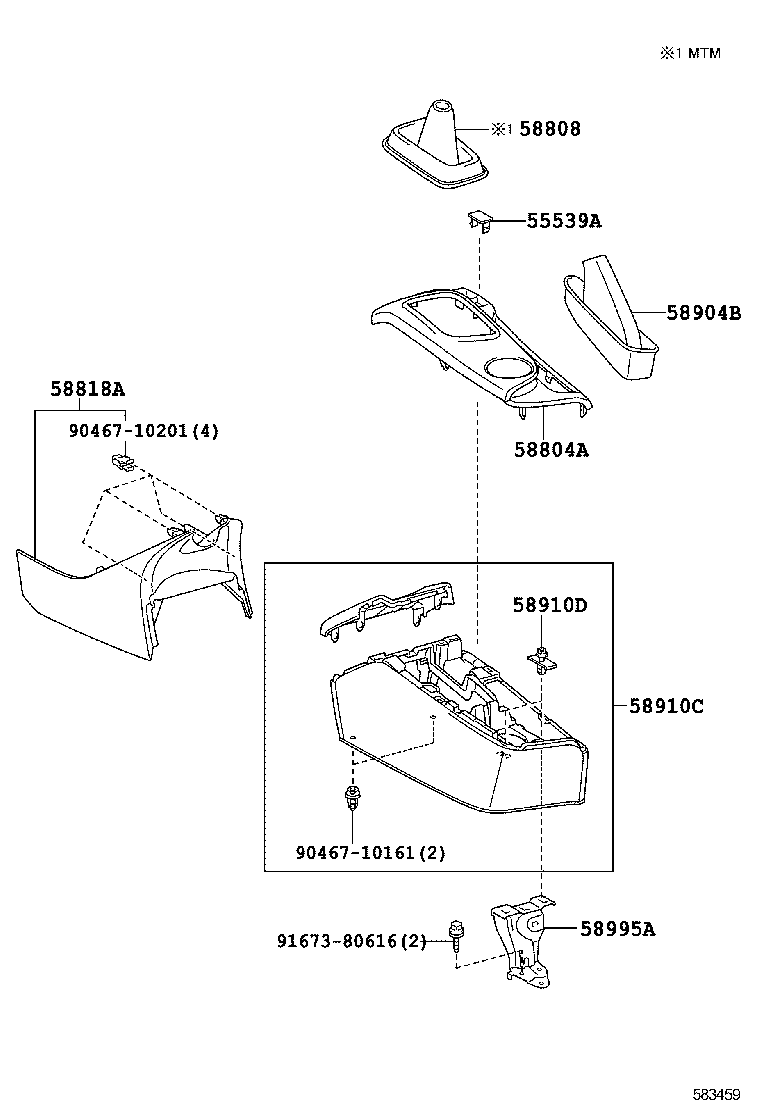

Click highlighted areas on diagram

diagram 55539A 58804A 58808 58818A 58904B 58910C 58910D 58995A 9046710161 9046710201 9167380616
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

NUJ10..LHD;KGJ10..5F..N

DK.GRAY,TRIM1#,4#,5#,9#

 1
55539-52060B0

NUJ10..LHD

COLD AREA SPEC(S RANK)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,4#,5#,9#

 1
55539-52060B0

NUJ10..LHD

COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,4#,5#,9#

 1
55539-52060B0

NUJ10..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,4#,5#,7#,9#

 1
55539-52060B0

NUJ10..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH/4SPEAKER+2TWEETER),DK.GRAY,TRIM1#,4#,5#,7#,9#

 1
55539-52060B0

NUJ10..LHD

COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&FRONT AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#,4#,5#,7#,9#

 1
55539-52060B0

NUJ10..LHD

COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)&FRONT AIR CONDITIONER-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,4#,5#,9#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-74010C0

KGJ10..5F;NUJ10..LHD;NGJ10..6F..N

BLACK,TRIM1#,4#,5#,7#,9#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-74010B0

KGJ10,NGJ10,NUJ10..MTM

DK.GRAY,TRIM1#,4#,5#,7#

 1
58818A - COVER, CONSOLE BOX, FR
58818-74010C0

NGJ10..LHD..N;KGJ10,NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
58818-74030C0

NGJ10..LHD..N;KGJ10,NUJ10..LHD

COLD AREA SPEC(S RANK),BLACK,TRIM1#,4#,5#,7#,9#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-74010B0

KGJ10,NGJ10,NUJ10

DK.GRAY,TRIM1#,4#,5#,7#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-74010C0

KGJ10;NGJ10..N;NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
58910D - CLIP(FOR CONSOLE BOX)
55345-74010

KGJ10,NGJ10,NUJ10

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90467-10161
90467-10201
91673-80616
