NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

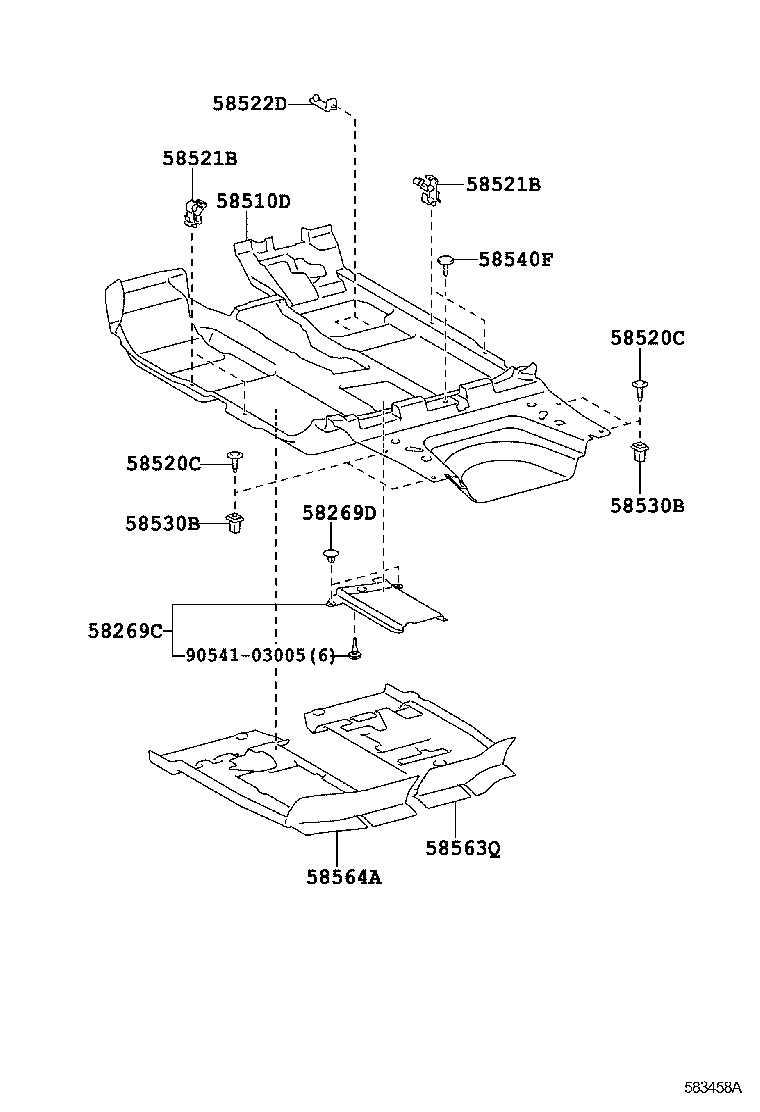

Click highlighted areas on diagram

diagram 58269C 58269D 58510D 58520C 58520C 58521B 58521B 58522D 58530B 58530B 58540F 58563Q 58564A 9054103005
Part # Description Qty Price
58269C - COVER, PARKING BRAKE CABLE
58269-74010

KGJ10,NGJ10,NUJ10

 1
58269D - CLIP, PARKING BRAKE CABLE COVER
90467-06205C0

KGJ10,NGJ10,NUJ10

BLACK

 2
58510D - CARPET ASSY, FLOOR, FRONT
58510-74090E2

NUJ10..LHD

COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),PLUM,TRIM4#,5#

 1
58510-74092E2

NUJ10..LHD

COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF),PLUM,TRIM4#,5#

 1
58510-74082E2

NUJ10..LHD

PLUM,TRIM4#,5#

 1
58510-74080E2

NUJ10..LHD

PLUM,TRIM4#,5#

 1
58510-74093B2

NUJ10

COLD AREA SPEC(S RANK),GRAY,TRIM1#,4#,5#,7#

 1
58510-74092B1

NUJ10

COLD AREA SPEC(S RANK),GRAY,TRIM1#,4#,5#,7#

 1
58510-74082B1

NUJ10

GRAY,TRIM1#,4#,5#,7#

 1
58510-74083B2

NUJ10

GRAY,TRIM1#,4#,5#,7#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07115B0

KGJ10,NGJ10,NUJ10

DK.GRAY,TRIM4#,5#

 4
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07115B0

KGJ10,NGJ10,NUJ10

DK.GRAY,TRIM4#,5#

 4
58521B - HOOK, FLOOR CARPET
58521-12140

KGJ10,NGJ10,NUJ10

 4
58521B - HOOK, FLOOR CARPET
58521-12140

KGJ10,NGJ10,NUJ10

 4
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-10023

KGJ10,NGJ10,NUJ10

 4
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-10023

KGJ10,NGJ10,NUJ10

 4
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-07049B7

KGJ10,NGJ10,NUJ10

DK.GRAY,TRIM4#,5#

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-74020

KGJ10,NGJ10,NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
58563-74010

KGJ10,NGJ10,NUJ10

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-74010

KGJ10,NGJ10,NUJ10

 1
58564-74020

KGJ10,NGJ10,NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
Common parts
90541-03005
