NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

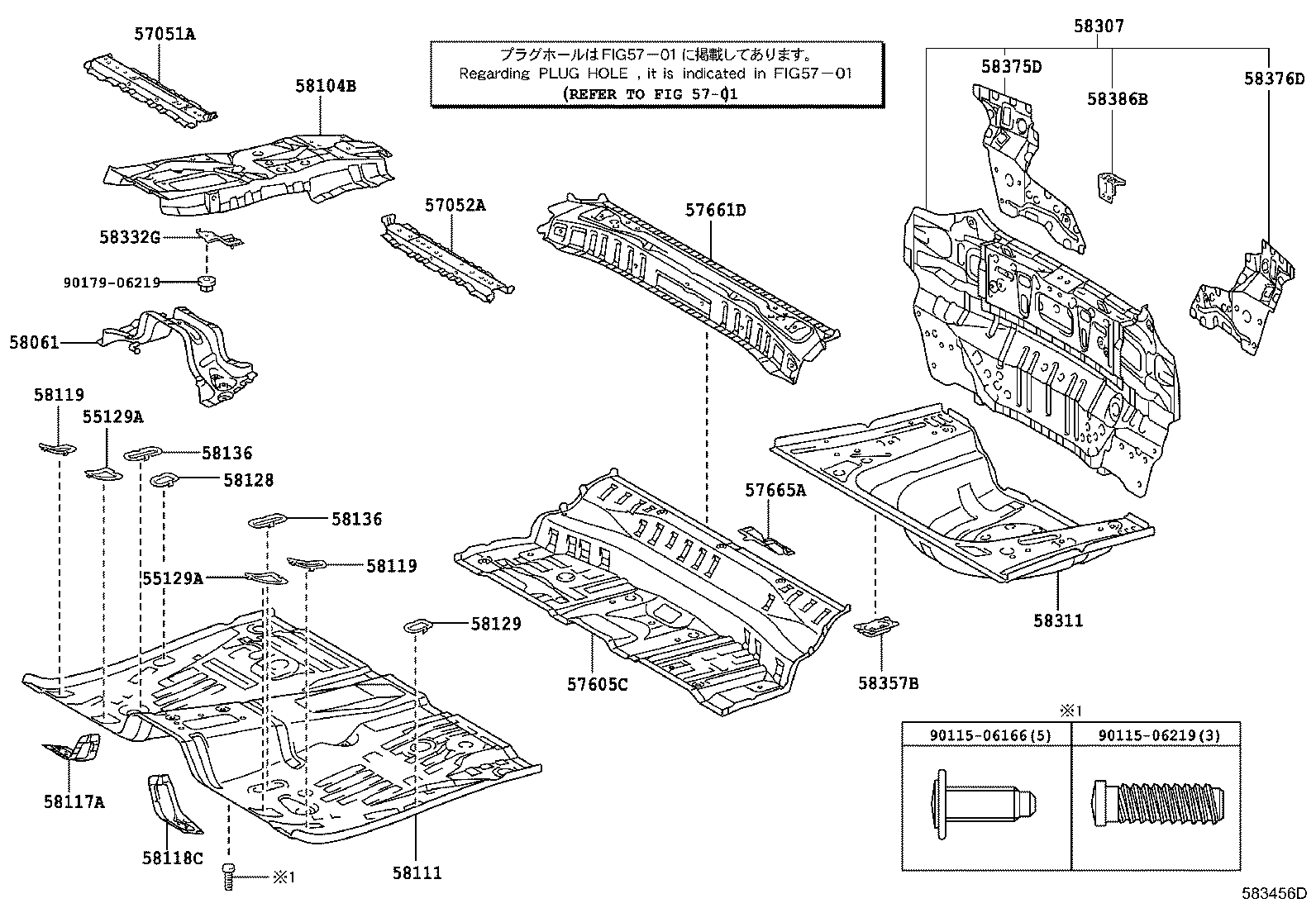

Click highlighted areas on diagram

diagram 55129A 55129A 5701 57051A 57052A 57605C 57661D 57665A 58061 58104B 58111 58117A 58118C 58119 58119 58128 58129 58136 58136 58307 58311 58332G 58357B 58375D 58376D 58386B 9011506166 9011506219 9017906219
Part # Description Qty Price
55129A - COVER, FRONT FLOOR HOLE
55139-74010

KGJ10,NGJ10,NUJ10

LH

 1
55129-74010

KGJ10,NGJ10,NUJ10

RH

 1
55129A - COVER, FRONT FLOOR HOLE
55139-74010

KGJ10,NGJ10,NUJ10

LH

 1
55129-74010

KGJ10,NGJ10,NUJ10

RH

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-74010

KGJ10,NGJ10,NUJ10

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-74010

KGJ10,NGJ10,NUJ10

 1
57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS
57605-74010

KGJ10,NGJ10,NUJ10

 1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57606-74010

KGJ10,NGJ10,NUJ10

 1
57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57665-74010

KGJ10,NGJ10,NUJ10

 1
58061 - SUPPORT SUB-ASSY, FUEL TANK, FRONT
58061-74010

KGJ10,NGJ10,NUJ10

 1
58104B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58104-74010

KGJ10,NGJ10,NUJ10

 1
58111 - PAN, FRONT FLOOR
58111-74010

KGJ10,NGJ10,NUJ10

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-74010

KGJ10,NGJ10,NUJ10

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-74010

KGJ10,NGJ10,NUJ10

 1
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-74010

KGJ10,NGJ10,NUJ10

RH

 1
58129-74010

KGJ10,NGJ10,NUJ10

LH

 1
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-74010

KGJ10,NGJ10,NUJ10

RH

 1
58129-74010

KGJ10,NGJ10,NUJ10

LH

 1
58128 - PLATE, FRONT FLOOR, NO.1
58139-74010

KGJ10,NGJ10,NUJ10

 1
58129 - PLATE, FRONT FLOOR, NO.2
58149-74010

KGJ10,NGJ10,NUJ10

 1
58136 - COVER, FRONT FLOOR HOLE
58136-74010

KGJ10,NGJ10,NUJ10

 2
58136 - COVER, FRONT FLOOR HOLE
58136-74010

KGJ10,NGJ10,NUJ10

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-74031

KGJ10,NGJ10,NUJ10

 1
58307-74010

KGJ10,NGJ10,NUJ10

 1
58311 - PAN, REAR FLOOR
58311-74010

KGJ10,NGJ10,NUJ10

 1
58332G - BRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58332-74010

KGJ10,NGJ10,NUJ10

 1
58357B - BRACKET, ACTUATOR COVER, NO.3 RH
58357-74010

KGJ10,NGJ10,NUJ10

 1
58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH
58375-74011

KGJ10,NGJ10,NUJ10

 1
58376D - REINFORCEMENT, BODY LOWER BACK, LH
58376-74021

KGJ10,NGJ10,NUJ10

 1
58376-74011

KGJ10,NGJ10,NUJ10

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-74010

KGJ10,NGJ10,NUJ10

 2
Common parts
90115-06166
90115-06219
90179-06219
Linked diagrams
5701
