NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

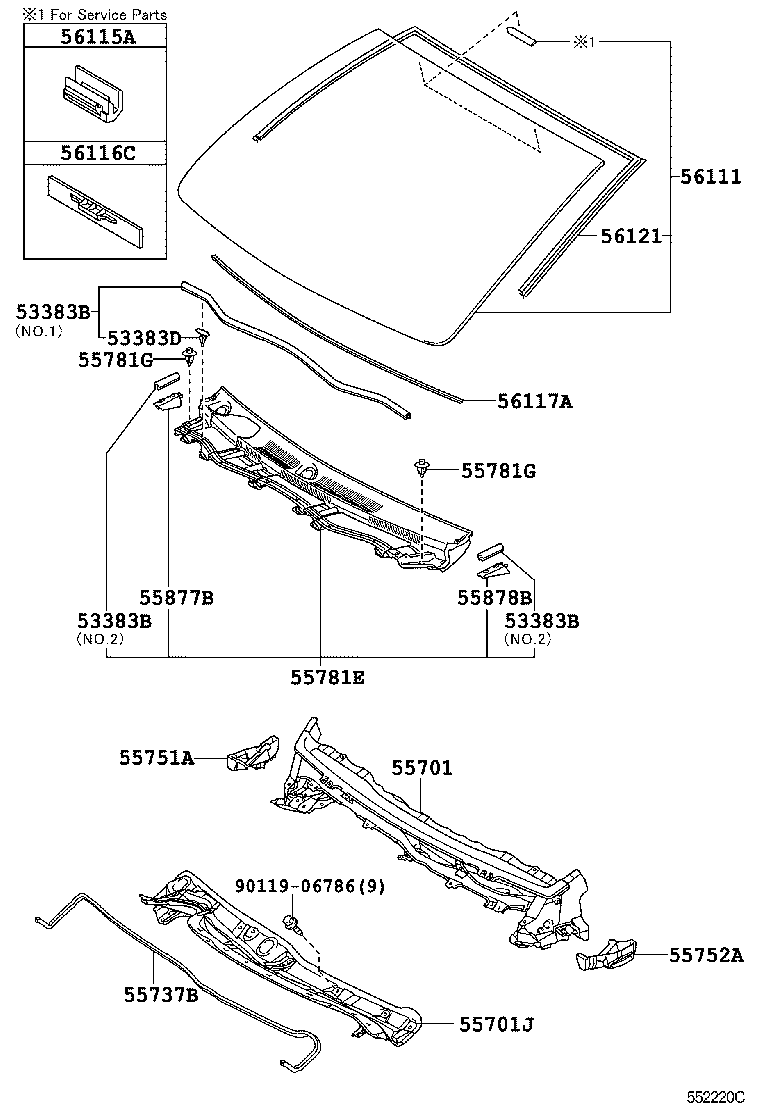

Click highlighted areas on diagram

diagram 53383B 53383B 53383B 53383D 55701 55701J 55737B 55751A 55752A 55781E 55781G 55781G 55877B 55878B 56111 56115A 56116C 56117A 56121 9011906786
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-74020

KGJ10,NGJ10,NUJ10

NO.2

 2
53383-74010

KGJ10,NGJ10,NUJ10

NO.1

 1
53383B - SEAL, HOOD TO COWL TOP
53383-74020

KGJ10,NGJ10,NUJ10

NO.2

 2
53383-74010

KGJ10,NGJ10,NUJ10

NO.1

 1
53383B - SEAL, HOOD TO COWL TOP
53383-74020

KGJ10,NGJ10,NUJ10

NO.2

 2
53383-74010

KGJ10,NGJ10,NUJ10

NO.1

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

KGJ10,NGJ10,NUJ10

 6
55701 - PANEL SUB-ASSY, COWL
55700-74010

KGJ10,NGJ10,NUJ10..LHD

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-74010

KGJ10,NGJ10,NUJ10..LHD

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-74010

KGJ10,NGJ10,NUJ10

 1
55751A - SHIELD, COWL VENTILATOR SPLASH, RH
55751-74010

KGJ10,NGJ10,NUJ10

 1
55752A - SHIELD, COWL VENTILATOR SPLASH, LH
55752-74010

KGJ10,NGJ10,NUJ10

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-74030

KGJ10,NGJ10,NUJ10..LHD

COLD AREA SPEC(S RANK)

 1
55708-74010

KGJ10,NGJ10,NUJ10..LHD

 1
55708-74030

KGJ10,NGJ10,NUJ10..LHD

COLD AREA SPEC(A RANK)

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

KGJ10,NGJ10,NUJ10

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

KGJ10,NGJ10,NUJ10

BLACK

 2
55877B - COVER, COWL VENT, RH
55877-74010

KGJ10,NGJ10,NUJ10

 1
55878B - COVER, COWL VENT, LH
55878-74010

KGJ10,NGJ10,NUJ10

 1
56111 - GLASS, WINDSHIELD
56101-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

*LAM,T=4.56,GREEN

 1
56101-74050

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

*LAM,T=4.56,GREEN,FRONT AIR CONDITIONER-AUTO

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

KGJ10,NGJ10,NUJ10

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

KGJ10,NGJ10,NUJ10

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-74010

KGJ10,NGJ10,NUJ10

L=1002

 1
56117-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

L=1002,FRONT AIR CONDITIONER-AUTO

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90119-06786
