NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441F - COVER, ENGINE UNDER, RH | ||||
| 51440-74010 |
NUJ10 |
1 | ||
| 51442F - COVER, ENGINE UNDER, LH | ||||
| 51450-74010 |
NUJ10 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53215B - SUPPORT, HOOD LOCK | ||||
| 53215-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53245-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53283A - REINFORCEMENT, RADIATOR SUPPORT, LOWER | ||||
| 53283-30010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53743-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53815-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53816-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53707-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53708-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-74010 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-74030 |
NUJ10..LHD |
1 | ||
| 55210-74031B0 |
NUJ10 GRAY,TRIM1#,4#,5#,7#,9# |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-74011 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55226A - CLIP | ||||
| 90467-06188 |
NGJ10,NUJ10 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 55787G - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-74010 |
NGJ10,NUJ10..LHD |
1 | ||
| 57155A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57155-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 57156A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57103-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90109-06328 | ||||
| 90109-06380 | ||||
| 90467-09227 | ||||
| 90541-15038 | ||||
| 90901-05005 | ||||
| 91515-80818 | ||||
| 91671-80816 | ||||
| 91671-A0816 | ||||

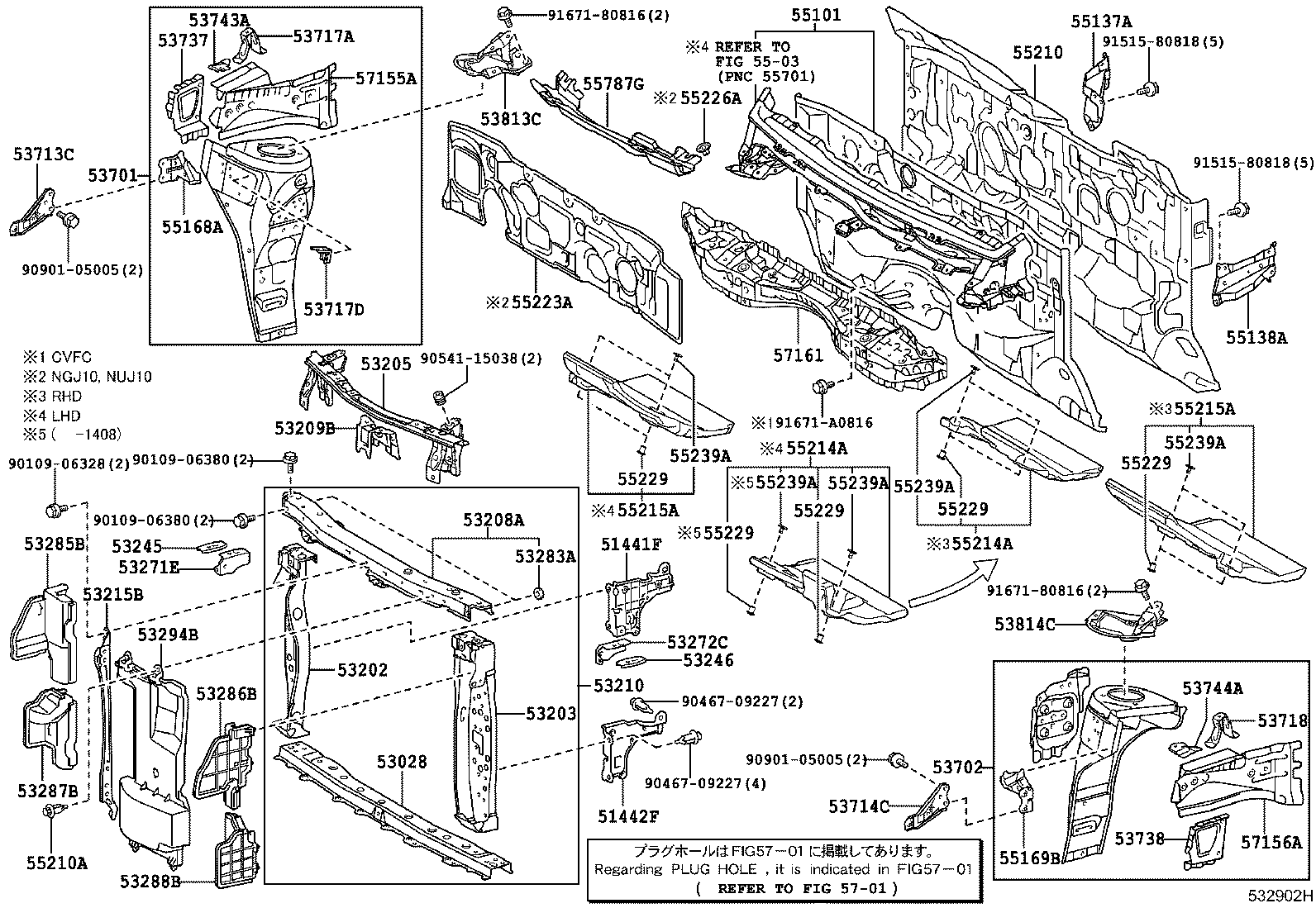

| Linked diagrams | ||||
| 5503 | ||||
| 5701 | ||||
