NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

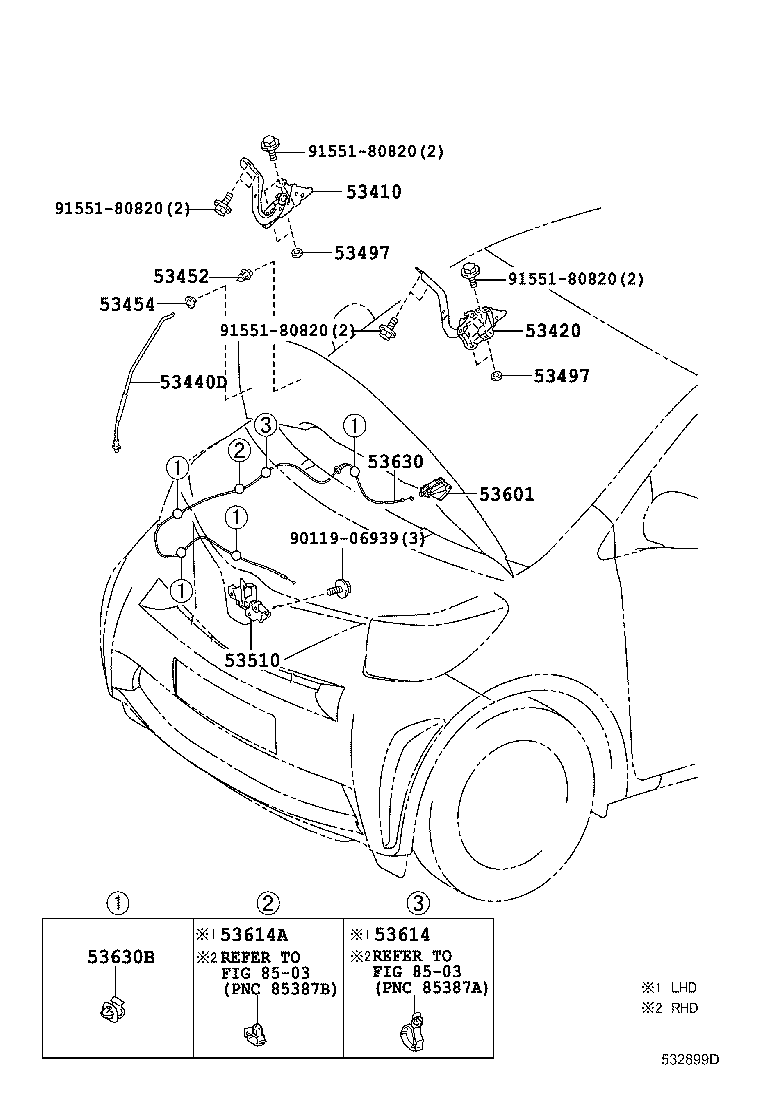

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53454 53497 53497 53510 53601 53614 53614A 53630 53630B 8503 8503 9011906939 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-74020

KGJ10,NGJ10,NUJ10

 1
53420 - HINGE ASSY, HOOD, LH
53420-74020

KGJ10,NGJ10,NUJ10

 1
53440D - SUPPORT ASSY, HOOD
53440-74010

KGJ10,NGJ10,NUJ10

 1
53452 - HOLDER, HOOD STAY
53452-74010

KGJ10,NGJ10,NUJ10

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-74010

KGJ10,NGJ10,NUJ10

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

KGJ10,NGJ10,NUJ10

T=0.5

 2
53497 - PAD, HOOD HINGE, NO.1
53497-42010

KGJ10,NGJ10,NUJ10

T=0.5

 2
53510 - LOCK ASSY, HOOD
53510-74010

NUJ10;KGJ10,NGJ10..5F,CVFC

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

KGJ10;NGJ10..N;NUJ10..LHD

BLACK,TRIM1#,4#,5#,7#,9#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
53614-12040

KGJ10,NGJ10,NUJ10..LHD

 1
53614A - CLAMP, HOOD LOCK CONTROL CABLE, NO.1
53614-74010

KGJ10,NGJ10,NUJ10..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-74010

KGJ10,NGJ10,NUJ10..LHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

KGJ10,NGJ10,NUJ10

 4
Common parts
90119-06939
91551-80820
Linked diagrams
8503
