NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

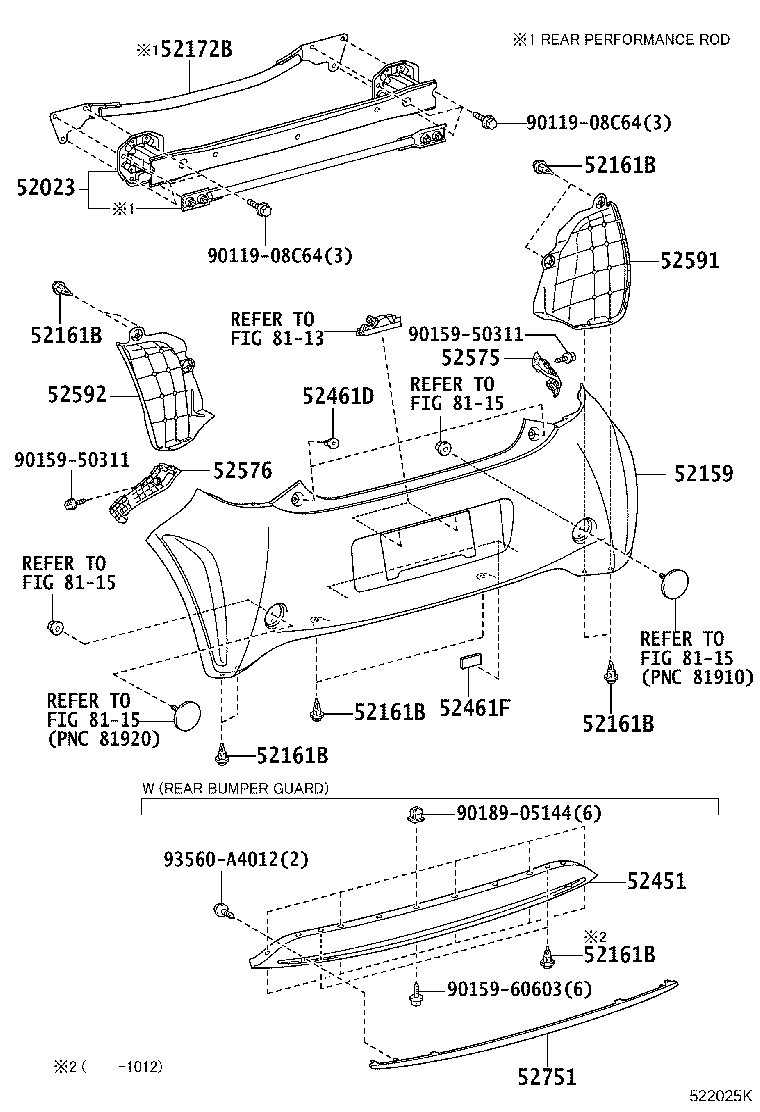

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 58303-74010 |
NGJ10,NUJ10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-74900 |
KGJ10,NGJ10,NUJ10 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGJ10,NGJ10,NUJ10 |
10 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52043-74010 |
NGJ10,NUJ10 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 52575-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 52576-74011 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-60603 | ||||
| 90189-05144 | ||||
| 93560-A4012 | ||||
| Linked diagrams | ||||
| 8113 | ||||
| 8115 | ||||
