NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

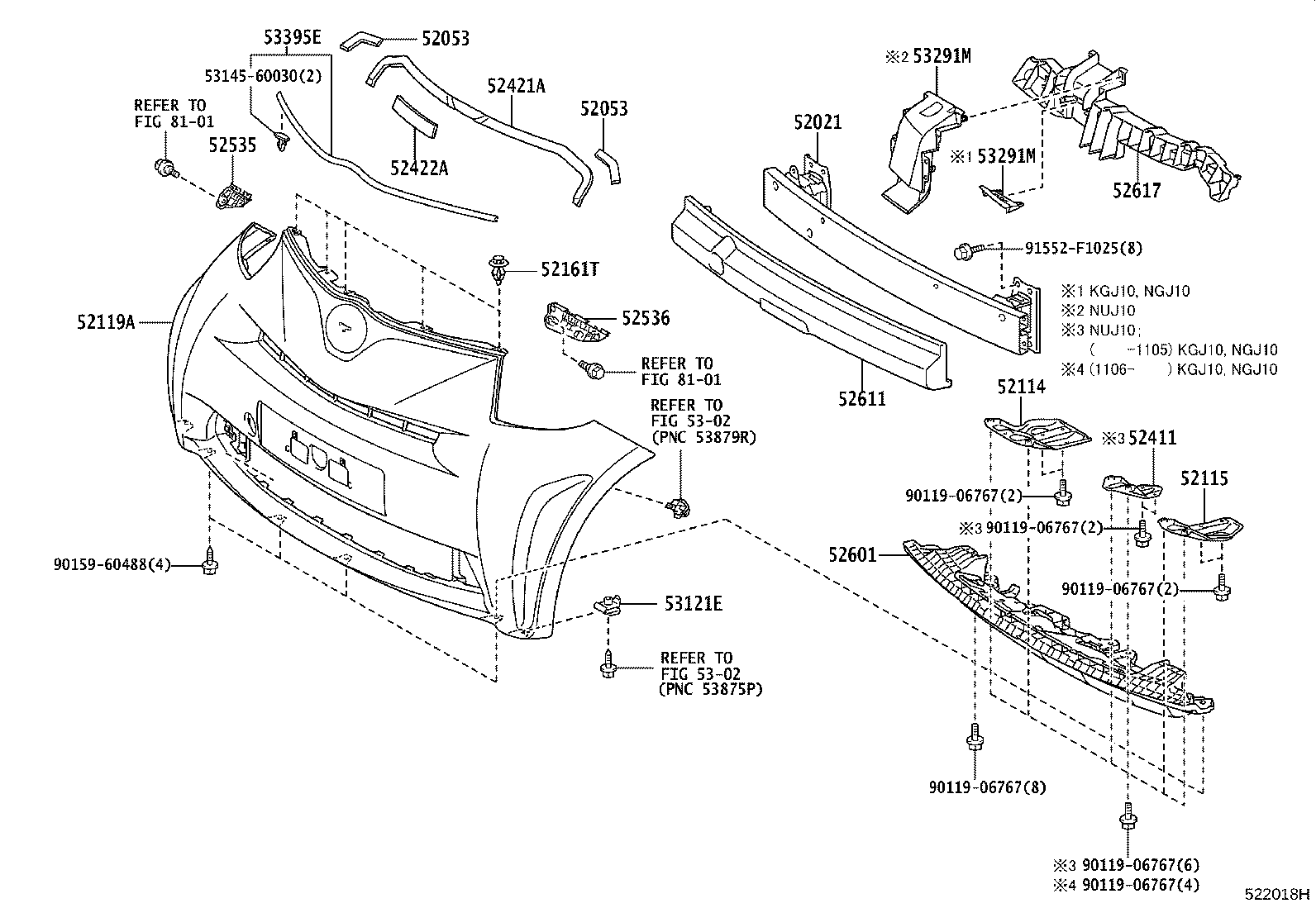

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

diagram 52021 52053 52053 52114 52115 52119A 52161T 52411 52421A 52422A 52535 52536 52601 52611 52617 5302 5302 53121E 5314560030 53291M 53291M 53395E 8101 8101 9011906767 9011906767 9011906767 9011906767 9011906767 9011906767 9015960488 91552F1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-74010

KGJ10,NGJ10,NUJ10

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52423-74010

KGJ10,NGJ10,NUJ10

 2
52053 - PAD SUB-ASSY, FRONT BUMPER
52423-74010

KGJ10,NGJ10,NUJ10

 2
52114 - GUARD, BUMPER, FRONT RH
52907-74010

NUJ10..LHD

 1
52115 - GUARD, BUMPER, FRONT LH
52908-74010

NUJ10..LHD

 1
52119A - COVER, FRONT BUMPER
52119-74900

KGJ10,NGJ10,NUJ10

PAINT REQ.

 1
52161T - PIECE, FRONT BUMPER
52161-16010

KGJ10,NGJ10,NUJ10

 5
52411 - GUARD, FRONT BUMPER
52401-74010

NUJ10

 1
52421A - PAD, FRONT BUMPER
52421-74010

KGJ10,NGJ10,NUJ10

 1
52422A - PAD, FRONT BUMPER, RH
52422-74010

KGJ10,NGJ10,NUJ10

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-74010

KGJ10,NUJ10

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-74010

KGJ10,NUJ10

 1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-74010

KGJ10,NGJ10,NUJ10

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-74011

KGJ10,NGJ10,NUJ10

 1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-74010

KGJ10,NGJ10,NUJ10

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05114

KGJ10,NGJ10,NUJ10

 2
53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH
53292-74010

NUJ10

 1
53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH
53292-74010

NUJ10

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
53145-60030
90119-06767
90159-60488
91552-F1025
Linked diagrams
5302
8101

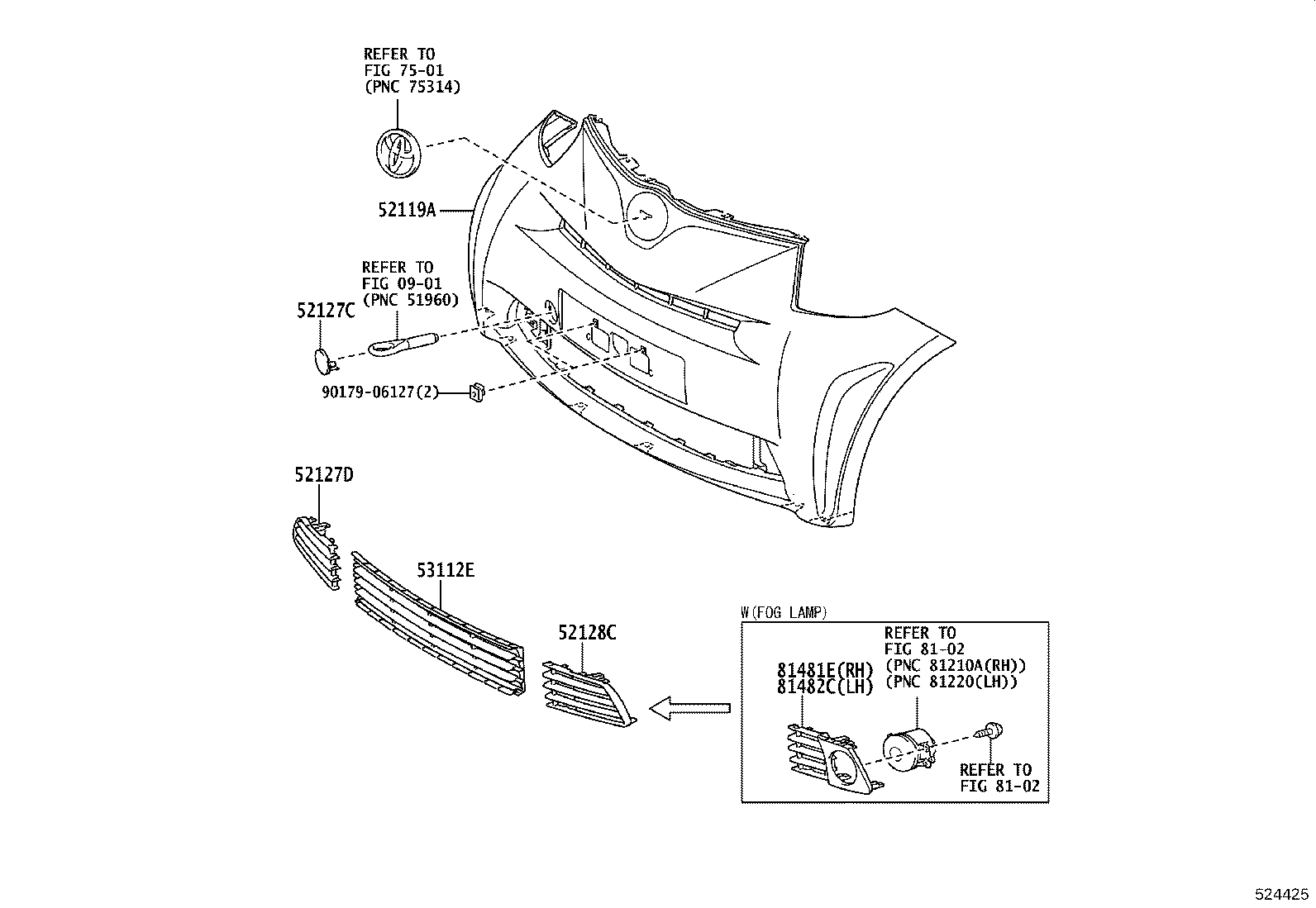

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

diagram 0901 52119A 52127C 52127D 52128C 53112E 7501 8102 8102 81481E 81482C 9017906127
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-74900

KGJ10,NGJ10,NUJ10

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-74901

KGJ10,NGJ10,NUJ10

 1
52127D - COVER, FRONT BUMPER HOLE, RH
53112-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

 1
52128C - COVER, FRONT BUMPER HOLE, LH
53113-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53111-74010

KGJ10,NGJ10,NUJ10

NO PAINT REQ.

 1
81481E - COVER, FOG LAMP, RH
81481-74010

NGJ10..LHD;KGJ10,NUJ10

FRONT FOG LAMP-WITH

 1
81482C - COVER, FOG LAMP, LH
81482-74010

NGJ10..LHD;KGJ10,NUJ10

FRONT FOG LAMP-WITH

 1
Common parts
90179-06127
Linked diagrams
0901
7501
8102
