NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

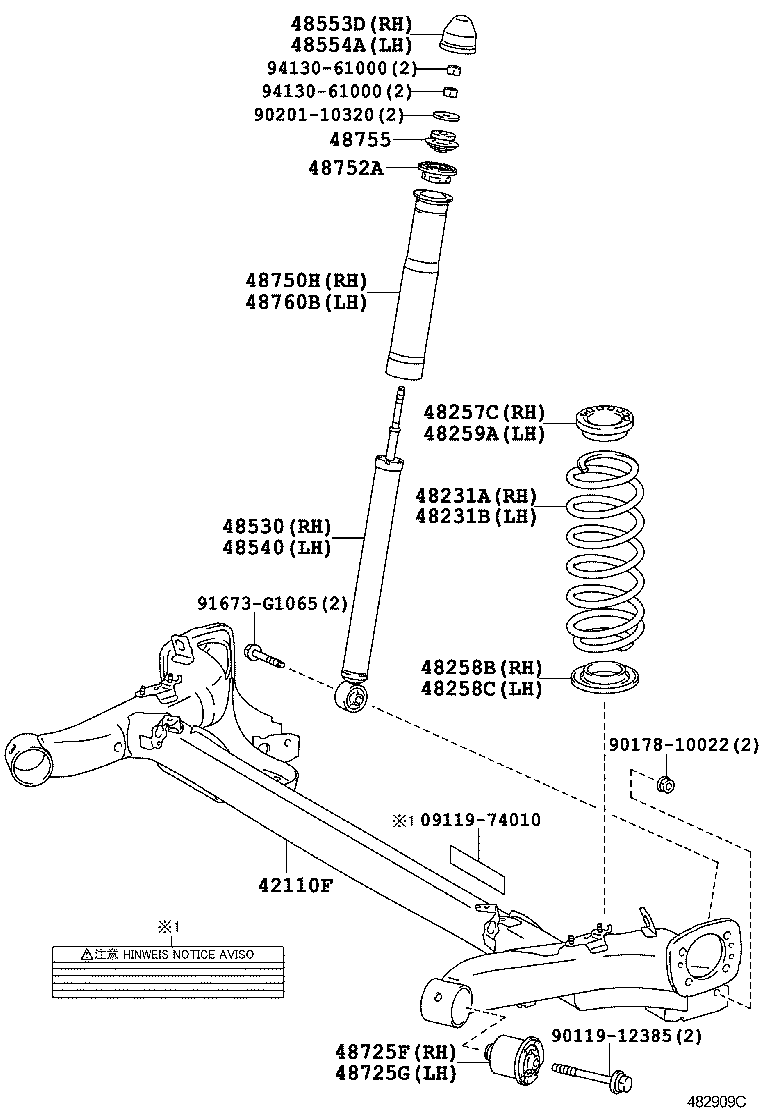

Click highlighted areas on diagram

diagram 0911974010 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48553D 48554A 48725F 48725G 48750H 48752A 48755 48760B 9011912385 9017810022 9020110320 91673G1065 9413061000 9413061000
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-74010

NUJ10;KGJ10,NGJ10..LHD

 1
42101-74020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 1
48231A - SPRING, COIL, REAR RH
48231-74030

NUJ10

 1
48231B - SPRING, COIL, REAR LH
48231-74030

NUJ10

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-52010

KGJ10,NGJ10,NUJ10

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-52030

KGJ10,NGJ10,NUJ10

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-52030

KGJ10,NGJ10,NUJ10

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-52010

KGJ10,NGJ10,NUJ10

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-74030

NUJ10

MARK 48530-74030

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-74030

NUJ10

MARK 48530-74030

 1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-52010

KGJ10,NGJ10,NUJ10

 1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-52010

KGJ10,NGJ10,NUJ10

 1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-74010

KGJ10,NGJ10,NUJ10

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-74010

KGJ10,NGJ10,NUJ10

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-52100

KGJ10,NGJ10,NUJ10

 1
48752A - STOPPER, REAR SUSPENSION SUPPORT
48752-52010

KGJ10,NGJ10,NUJ10

 2
48755 - SUPPORT, REAR SUSPENSION
48755-52010

KGJ10,NGJ10,NUJ10

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-52100

KGJ10,NGJ10,NUJ10

 1
Common parts
09119-74010
90119-12385
90178-10022
90201-10320
91673-G1065
94130-61000
