NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

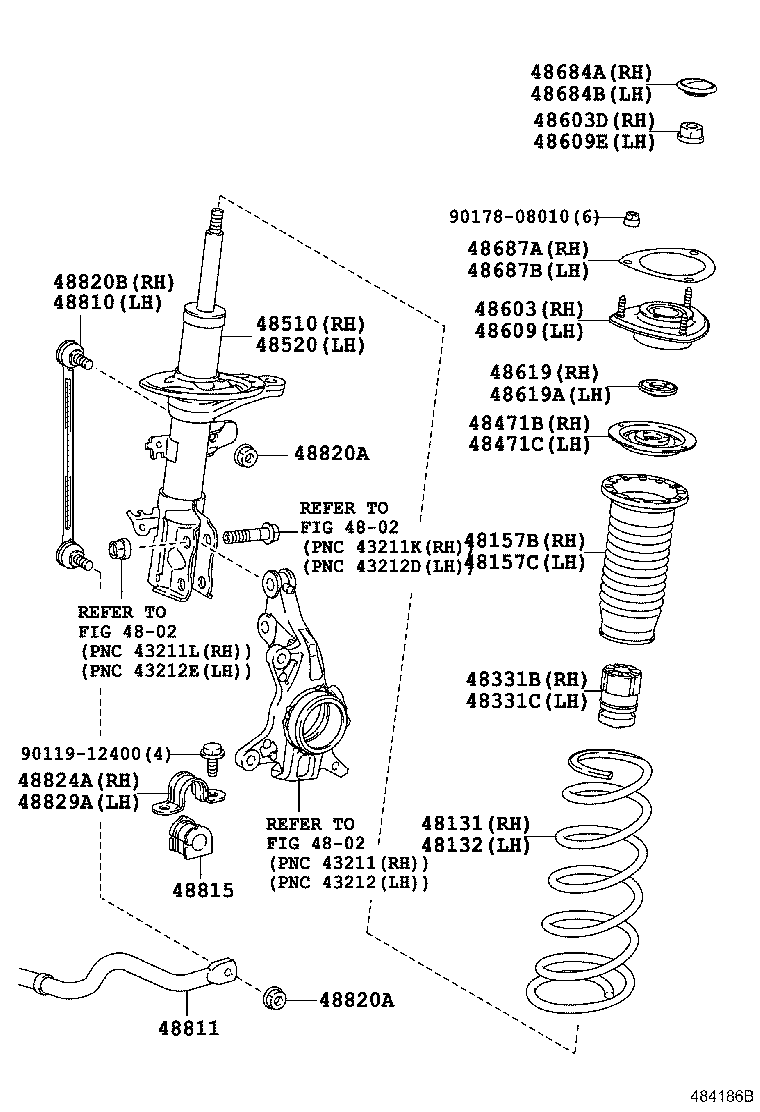

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-74030 |
NUJ10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-74030 |
NUJ10 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-74031 |
NUJ10 MARK 48510-74031 |
1 | ||
| 48510-74030 |
NUJ10 MARK 48510-74030 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-74030 |
NUJ10 MARK 48520-74030 |
1 | ||
| 48520-74031 |
NUJ10 MARK 48520-74031 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-74020 |
KGJ10..R;NGJ10,NUJ10 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-14018 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-74020 |
KGJ10..R;NGJ10,NUJ10 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-14018 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
KGJ10..R;NGJ10,NUJ10 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
KGJ10..R;NGJ10,NUJ10 |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-74030 |
NUJ10 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-74010 |
KGJ10,NUJ10 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-12400 | ||||
| 90178-08010 | ||||
| Linked diagrams | ||||
| 4802 | ||||
