NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

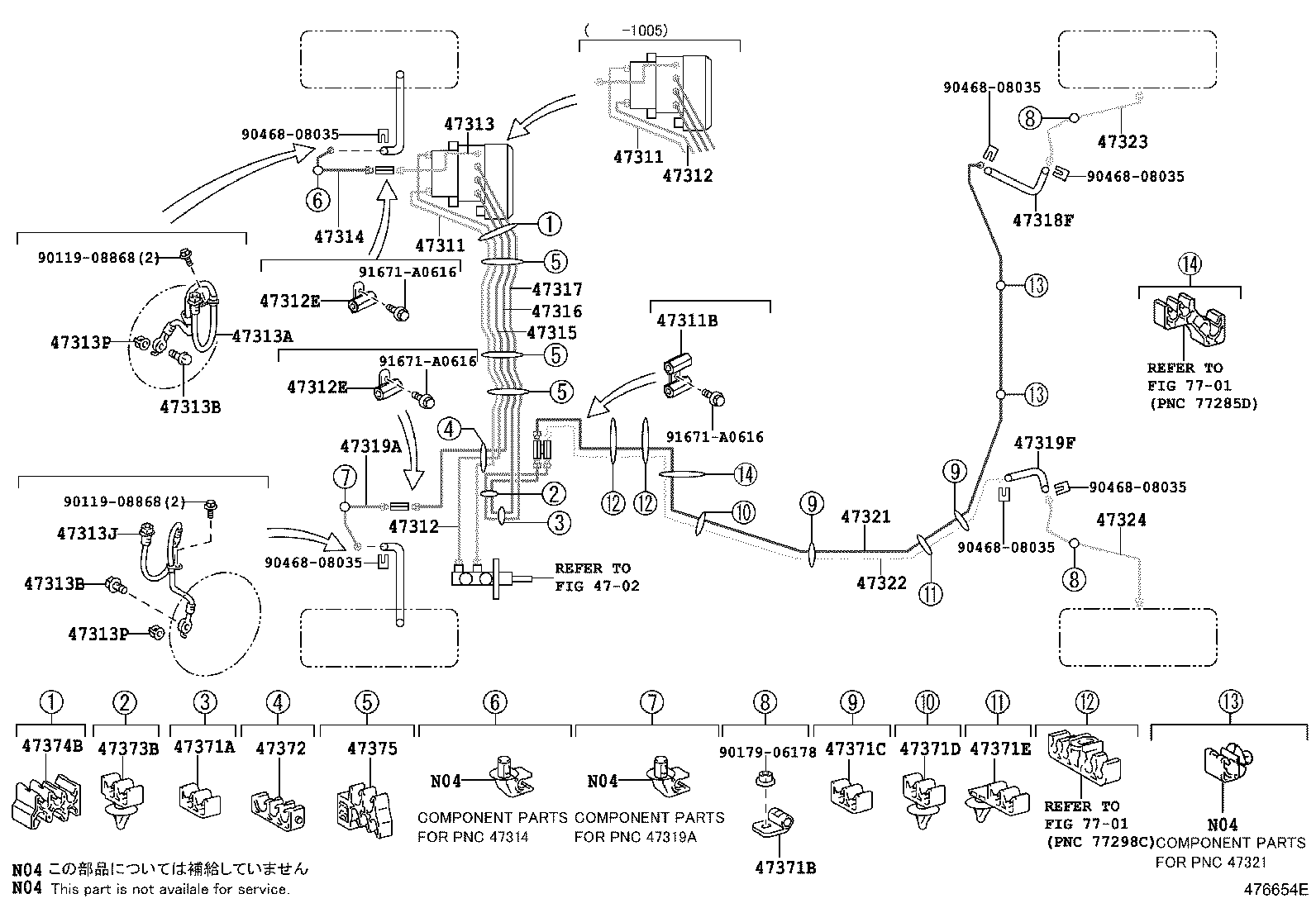

ILLUST NO. 1 OF 2(0811- )LHD

Click highlighted areas on diagram

diagram 4702 47311 47311 47311B 47312 47312 47312E 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47316 47317 47318F 47319A 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47371D 47371E 47372 47373B 47374B 47375 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 91671A0616 91671A0616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

KGJ10,NUJ10

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10272

KGJ10,NGJ10,NUJ10

 2
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10272

KGJ10,NGJ10,NUJ10

 2
47313 - TUBE, FRONT BRAKE, NO.3
47313-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F92

KGJ10,NGJ10,NUJ10..MTM..N

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KGJ10,NGJ10,NUJ10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KGJ10,NGJ10,NUJ10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F93

KGJ10,NGJ10,NUJ10

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KGJ10,NGJ10,NUJ10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KGJ10,NGJ10,NUJ10

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-74010

KGJ10,NGJ10,NUJ10

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F94

KGJ10,NGJ10,NUJ10

 1
47319A - TUBE, FRONT BRAKE, NO.10
47318-74010

KGJ10,NGJ10,NUJ10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F95

KGJ10,NGJ10,NUJ10

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-74010

KGJ10,NGJ10,NUJ10

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-74010

KGJ10,NGJ10,NUJ10

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-74010

NUJ10;KGJ10,NGJ10..LHD

 1
47323-74020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-74010

NUJ10;KGJ10,NGJ10..LHD

 1
47324-74020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00904

KGJ10,NGJ10,NUJ10..LHD

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-10837

KGJ10,NGJ10,NUJ10

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00904

KGJ10,NGJ10,NUJ10

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07020

KGJ10,NGJ10,NUJ10

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07023

KGJ10,NGJ10,NUJ10

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00914

KGJ10,NGJ10,NUJ10..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90469-07020

KGJ10,NGJ10,NUJ10

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D52

KGJ10,NGJ10,NUJ10..LHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D66

KGJ10,NGJ10,NUJ10..LHD

 3
Common parts
90119-08868
90179-06178
90468-08035
91671-A0616
Linked diagrams
4702
7701

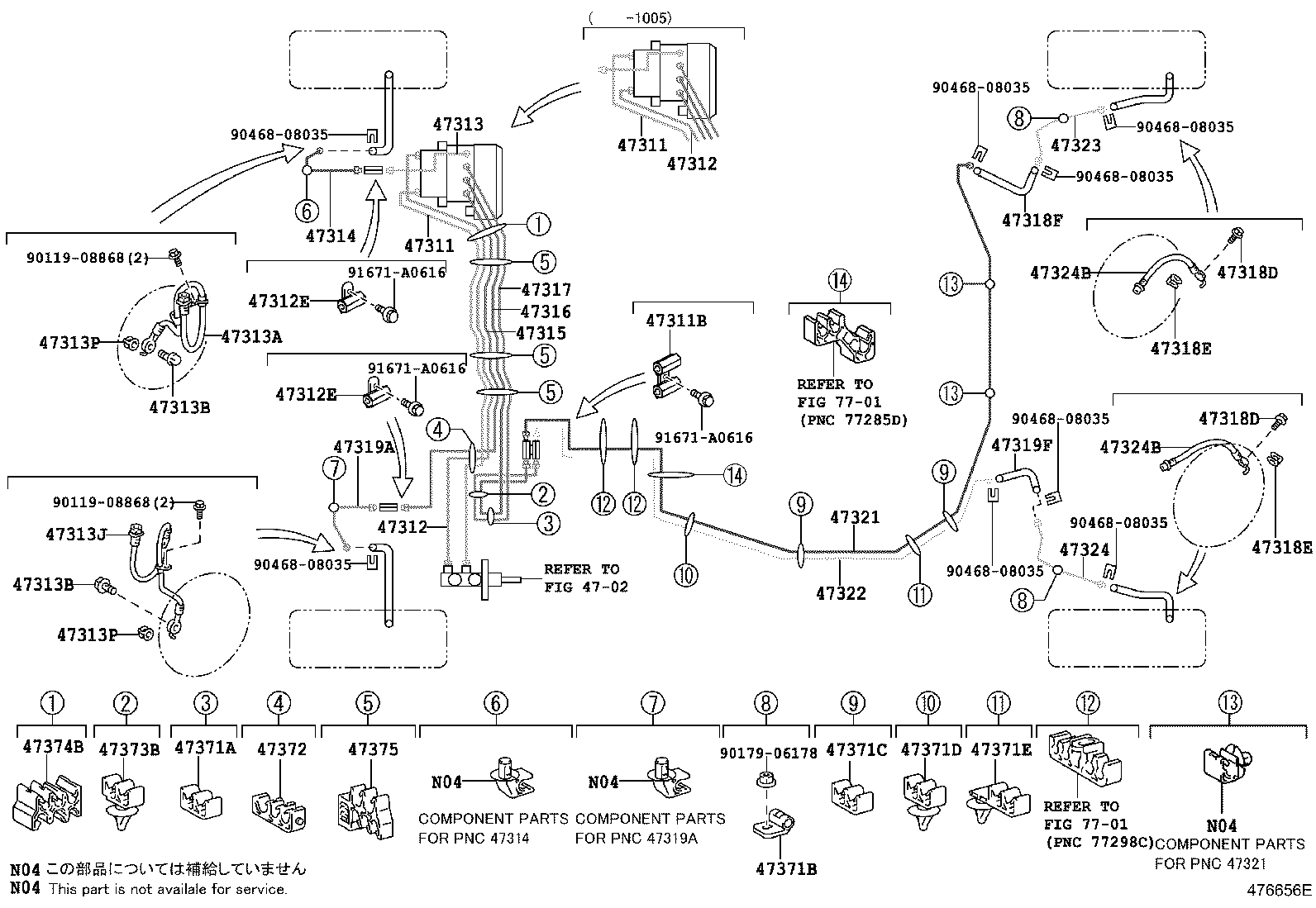

ILLUST NO. 1 OF 2(0811- )LHD

Click highlighted areas on diagram

W(REAR DISC BRAKE)

diagram 4702 47311 47311 47311B 47312 47312 47312E 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319A 47319F 47321 47322 47323 47324 47324B 47324B 47371A 47371B 47371C 47371D 47371E 47372 47373B 47374B 47375 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 91671A0616 91671A0616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

KGJ10,NUJ10

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10272

KGJ10,NGJ10,NUJ10

 2
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10272

KGJ10,NGJ10,NUJ10

 2
47313 - TUBE, FRONT BRAKE, NO.3
47313-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F92

KGJ10,NGJ10,NUJ10..MTM..N

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KGJ10,NGJ10,NUJ10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KGJ10,NGJ10,NUJ10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F93

KGJ10,NGJ10,NUJ10

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KGJ10,NGJ10,NUJ10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KGJ10,NGJ10,NUJ10

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-74010

KGJ10,NGJ10,NUJ10

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-74010

KGJ10,NGJ10,NUJ10..LHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F94

KGJ10,NGJ10,NUJ10

 1
47319A - TUBE, FRONT BRAKE, NO.10
47318-74010

KGJ10,NGJ10,NUJ10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F95

KGJ10,NGJ10,NUJ10

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-74010

KGJ10,NGJ10,NUJ10

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-74010

KGJ10,NGJ10,NUJ10

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-74010

NUJ10;KGJ10,NGJ10..LHD

 1
47323-74020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-74010

NUJ10;KGJ10,NGJ10..LHD

 1
47324-74020

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02F96

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02F96

NUJ10;KGJ10,NGJ10..LHD

WITH(REAR DISC BRAKE)

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00904

KGJ10,NGJ10,NUJ10..LHD

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-10837

KGJ10,NGJ10,NUJ10

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00904

KGJ10,NGJ10,NUJ10

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07020

KGJ10,NGJ10,NUJ10

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07023

KGJ10,NGJ10,NUJ10

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00914

KGJ10,NGJ10,NUJ10..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90469-07020

KGJ10,NGJ10,NUJ10

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D52

KGJ10,NGJ10,NUJ10..LHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D66

KGJ10,NGJ10,NUJ10..LHD

 3
Common parts
90119-08868
90179-06178
90468-08035
91671-A0616
Linked diagrams
4702
7701

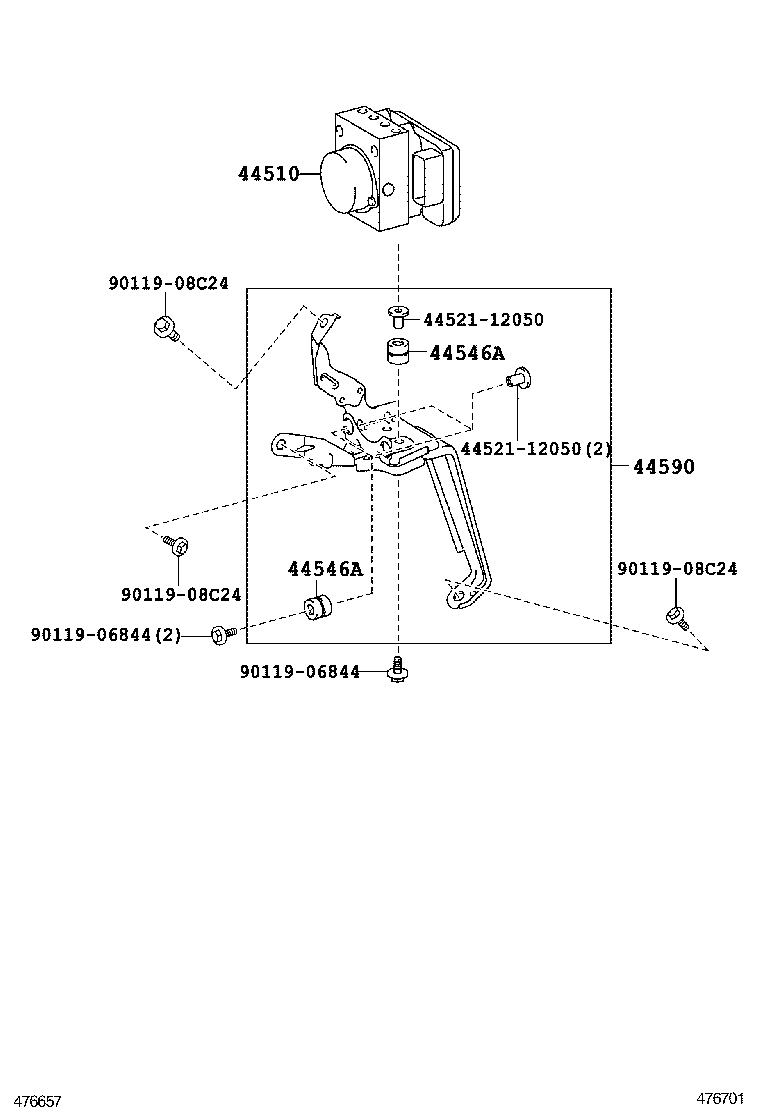

ILLUST NO. 2 OF 2(0811- )LHD

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 44546A 44546A 44590 9011906844 9011906844 9011908C24 9011908C24 9011908C24
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-74011

KGJ10,NGJ10,NUJ10

 1
44050-74012

KGJ10,NGJ10,NUJ10..LHD

 1
44050-74021

KGJ10,NGJ10,NUJ10

WITH(REAR DISC BRAKE)

 1
44050-74020

KGJ10,NUJ10

WITH(REAR DISC BRAKE)

 1
44050-74022

KGJ10,NGJ10,NUJ10..LHD

WITH(REAR DISC BRAKE)

 1
44050-74010

KGJ10,NUJ10

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

KGJ10,NGJ10,NUJ10

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

KGJ10,NGJ10,NUJ10

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-74020

KGJ10,NGJ10,NUJ10..LHD

 1
Common parts
44521-12050
90119-06844
90119-08C24
