NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-52140 |
NUJ10;KGJ10,NGJ10..LHD MARK NBK D6234,WITH(REAR DISC BRAKE) |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-52170 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-52080 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-52040 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-10404 |
NUJ10;KGJ10,NGJ10..LHD *10-1.25PX24-21.5,WITH(REAR DISC BRAKE) |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-74010 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-74010 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12151 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12151 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-52161 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-52090 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-52161 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| Linked diagrams | ||||

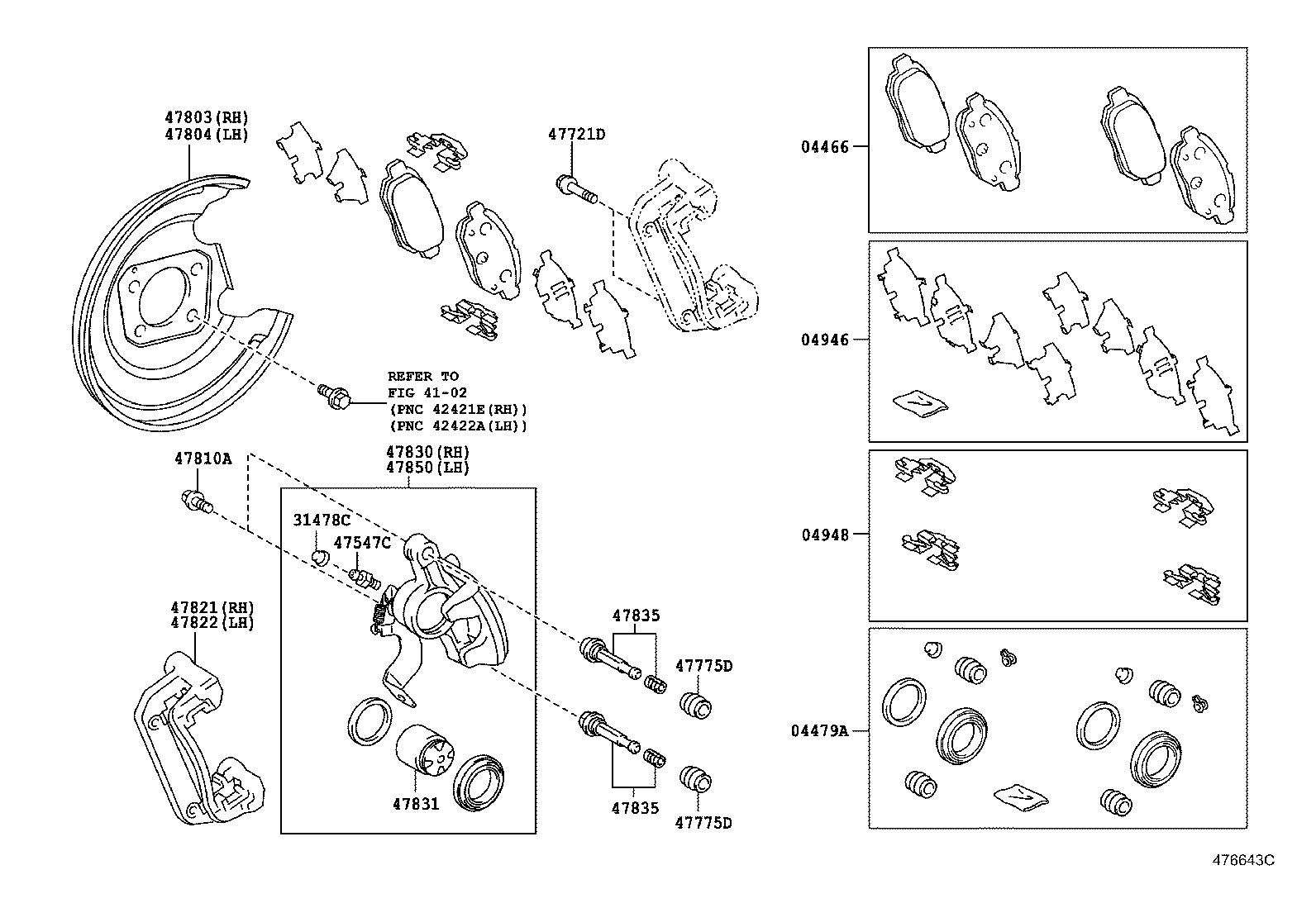

| 4102 | ||||
