NUJ10L-BGFNWW (2008)
Toyota Iq

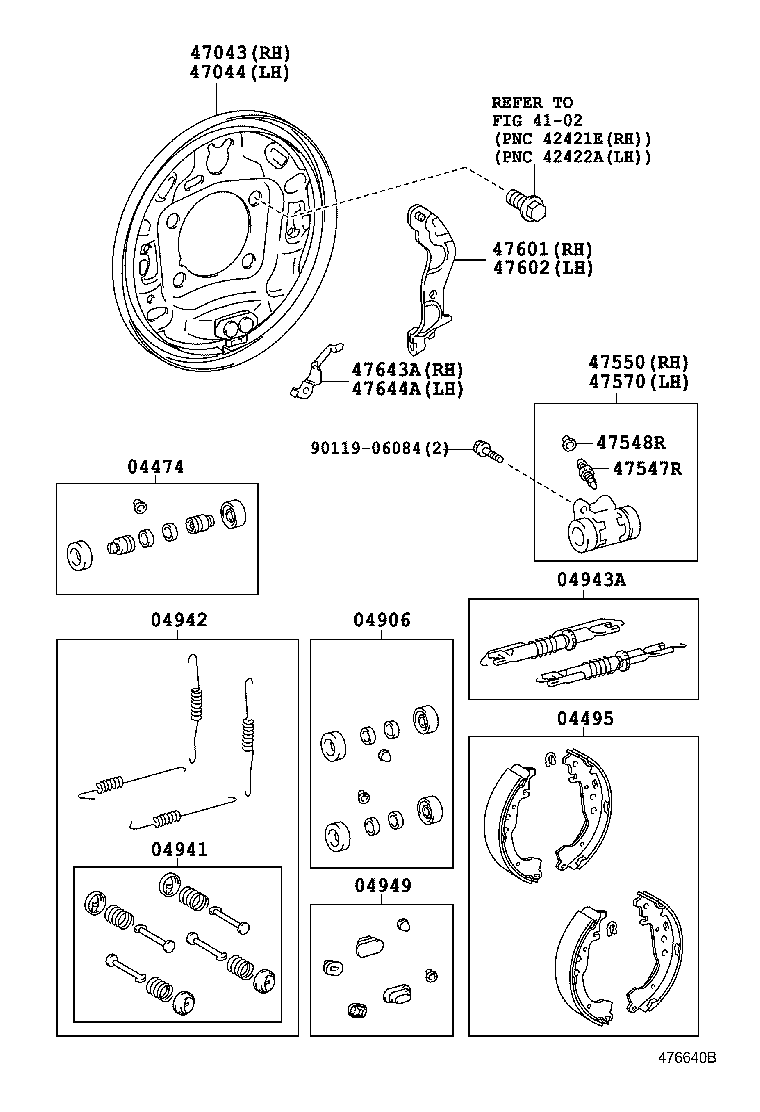

(0811-1009)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-52010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-74020 |
NUJ10;KGJ10,NGJ10..LHD MARK NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-52010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-52011 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-52011 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| Linked diagrams | ||||
| 4102 | ||||

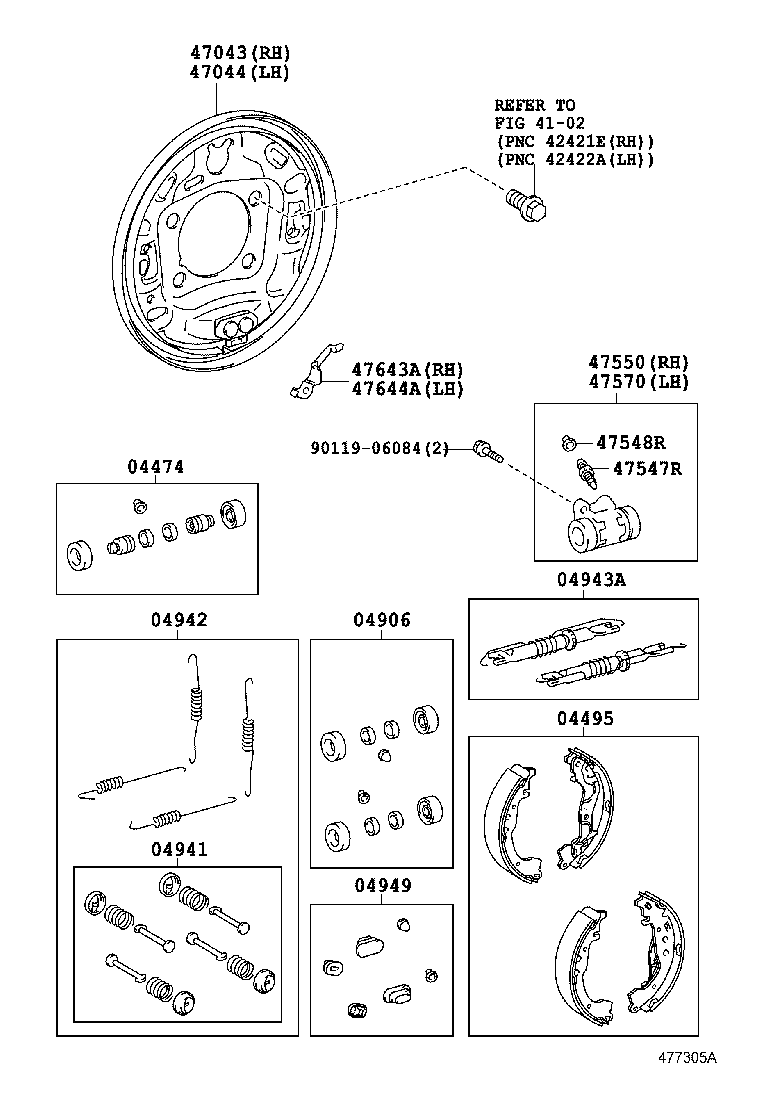

(1009- )NGJ10..N ; (1009- )KGJ10,NUJ10 ; (1009- )NGJ10..LHD..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-52010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-74020 |
NUJ10;KGJ10,NGJ10..LHD MARK NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-52010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
NUJ10;KGJ10,NGJ10..LHD |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-52011 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-52011 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| Linked diagrams | ||||
| 4102 | ||||
