NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

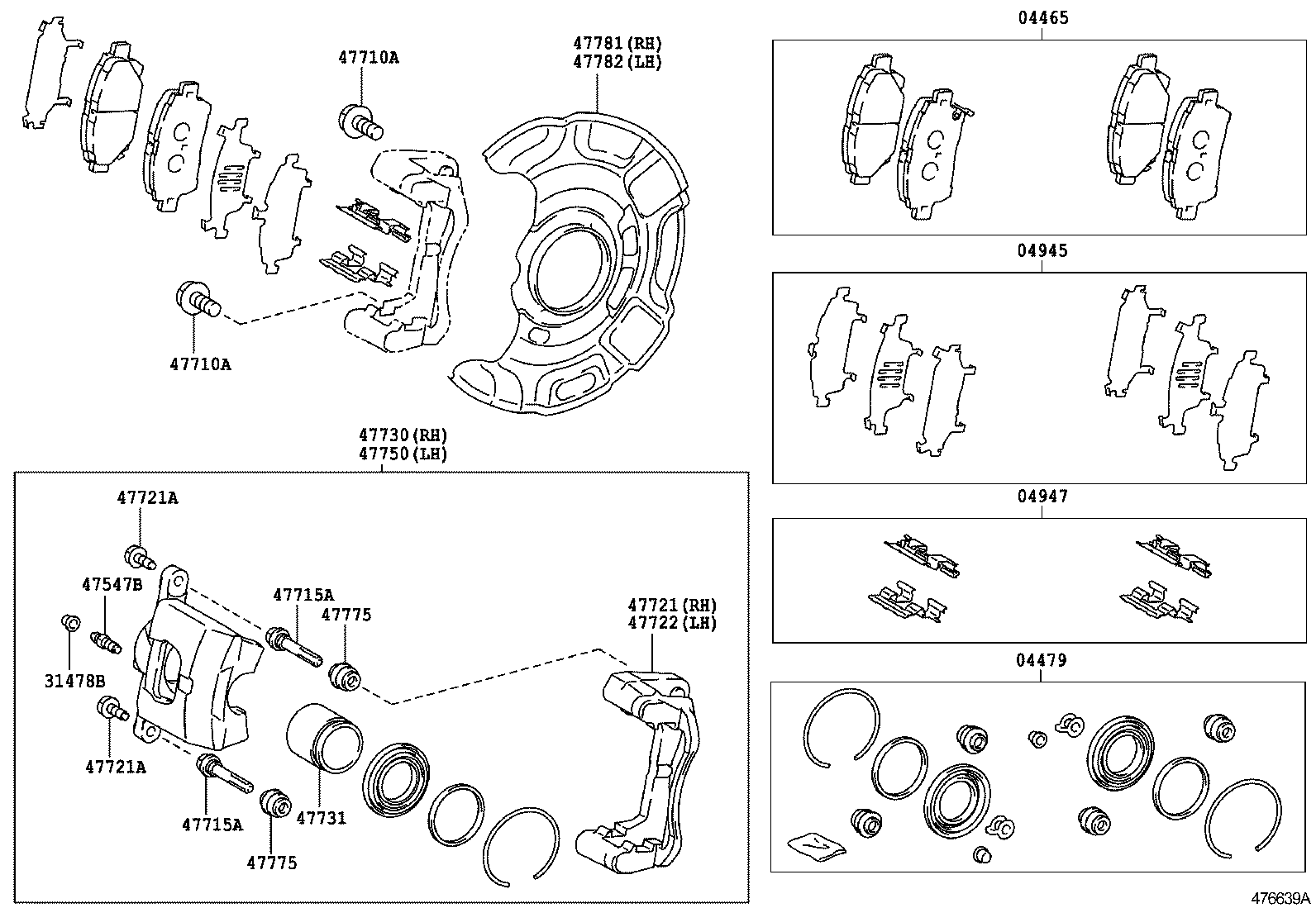

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-74020 |
KGJ10,NGJ10,NUJ10 MARK ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-52010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
KGJ10,NGJ10,NUJ10 *12-1.25PX29.5-23 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
KGJ10,NGJ10,NUJ10 *12-1.25PX29.5-23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
KGJ10,NGJ10,NUJ10 *8-1.00PX23-15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
KGJ10,NGJ10,NUJ10 *8-1.00PX23-15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-74010 |
KGJ10,NGJ10,NUJ10 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52010 |
KGJ10,NGJ10,NUJ10 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-74020 |
NGJ10,NUJ10 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-74020 |
NGJ10,NUJ10 |
1 | ||
