NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )NUJ10..LHD

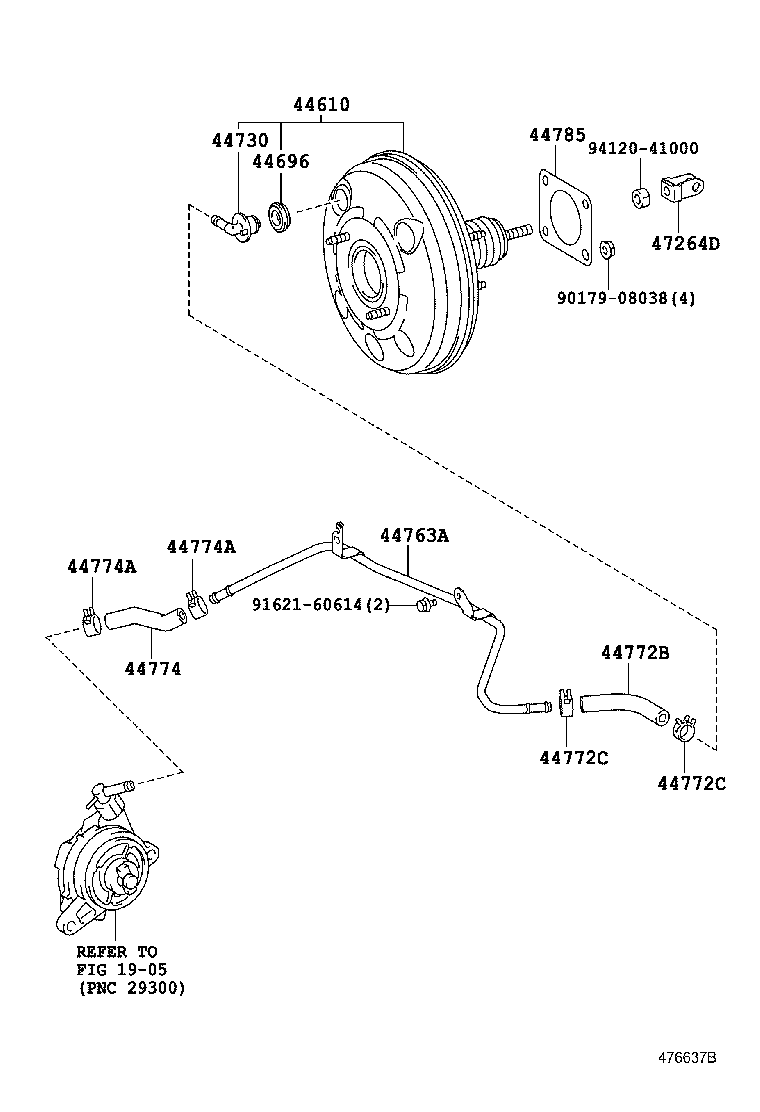

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-74040 |
NUJ10..LHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
NUJ10..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-74020 |
NUJ10..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-74030 |
NUJ10..LHD |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 96133-41500 |
KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 96133-41500 |
KGJ10,NUJ10..LHD;NGJ10..LHD..6F..N |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-74020 |
NUJ10..LHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NUJ10..LHD |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NUJ10..LHD |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91621-60614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1905 | ||||
