NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

Click highlighted areas on diagram

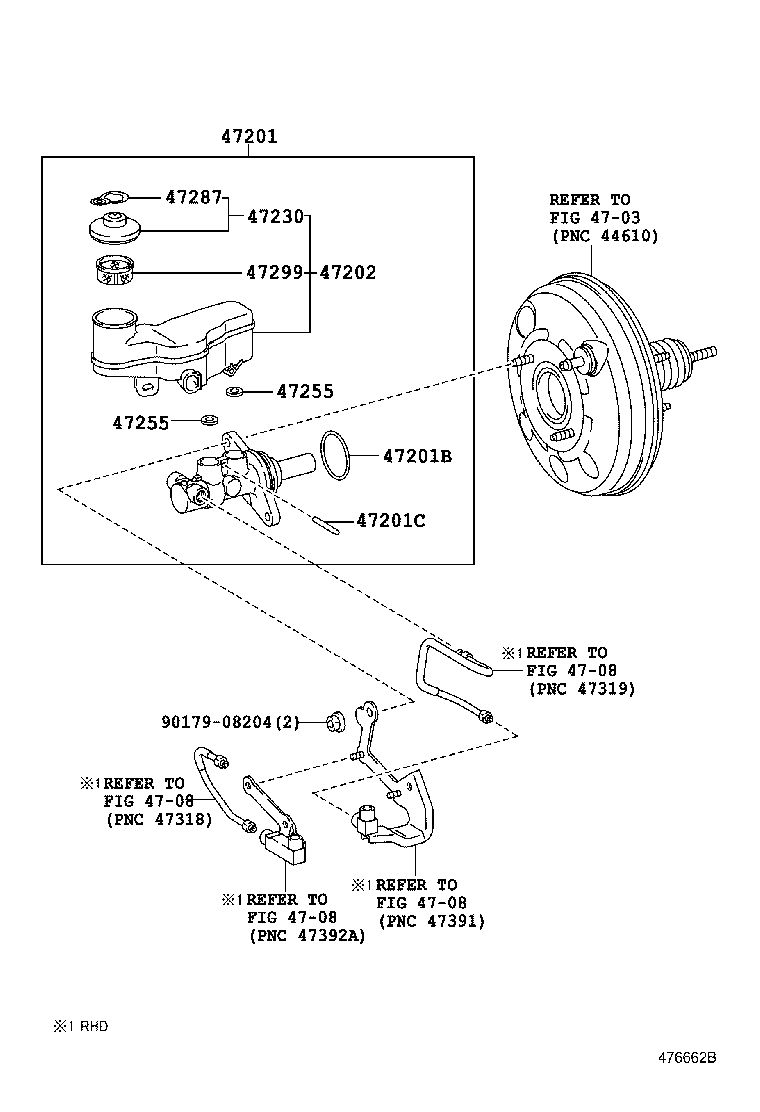

diagram 4703 4708 4708 4708 4708 47201 47201B 47201C 47202 47230 47255 47255 47287 47299 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-74040

KGJ10,NUJ10..LHD..MTM

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

KGJ10,NGJ10,NUJ10

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

KGJ10,NGJ10,NUJ10

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-74040

NGJ10..LHD..R;KGJ10,NUJ10..LHD..MTM

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

KGJ10,NGJ10,NUJ10

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

KGJ10,NGJ10,NUJ10

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

KGJ10,NGJ10,NUJ10

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

KGJ10,NGJ10,NUJ10

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

KGJ10,NGJ10,NUJ10

 1
Common parts
90179-08204
Linked diagrams
4703
4708
