NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

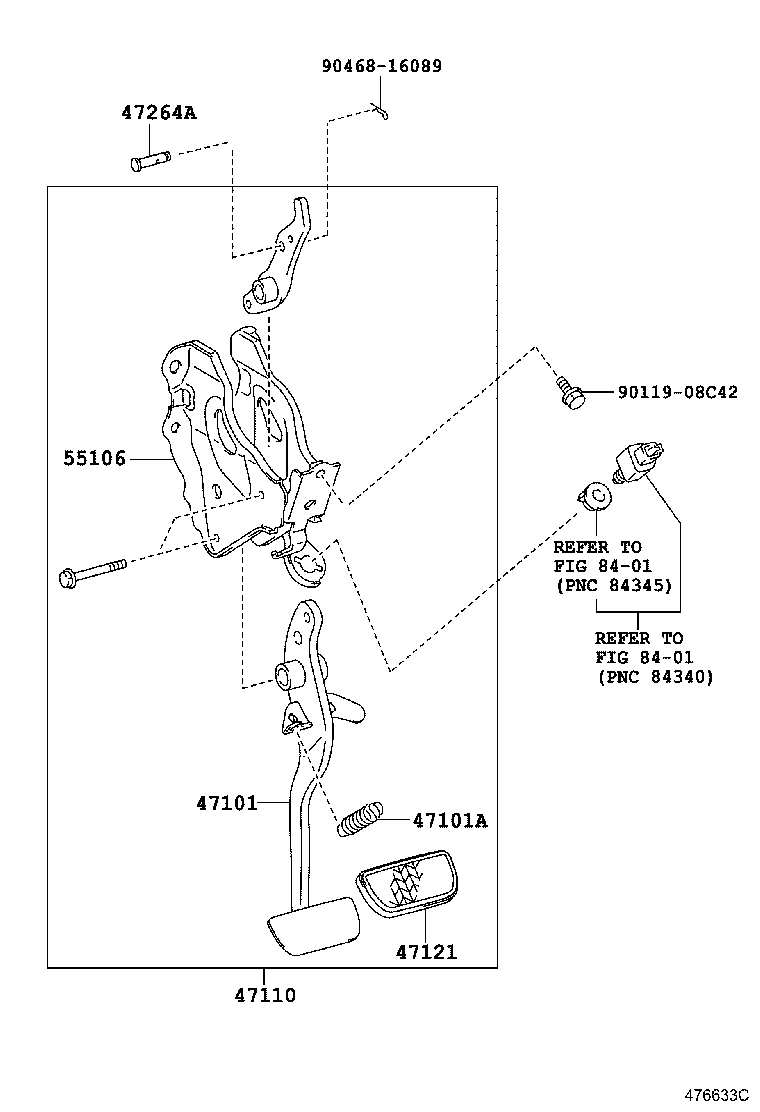

(0811-0909)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-74010 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-20033 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-74010 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 47110-74011 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-16089 | ||||
| Linked diagrams | ||||
| 8401 | ||||

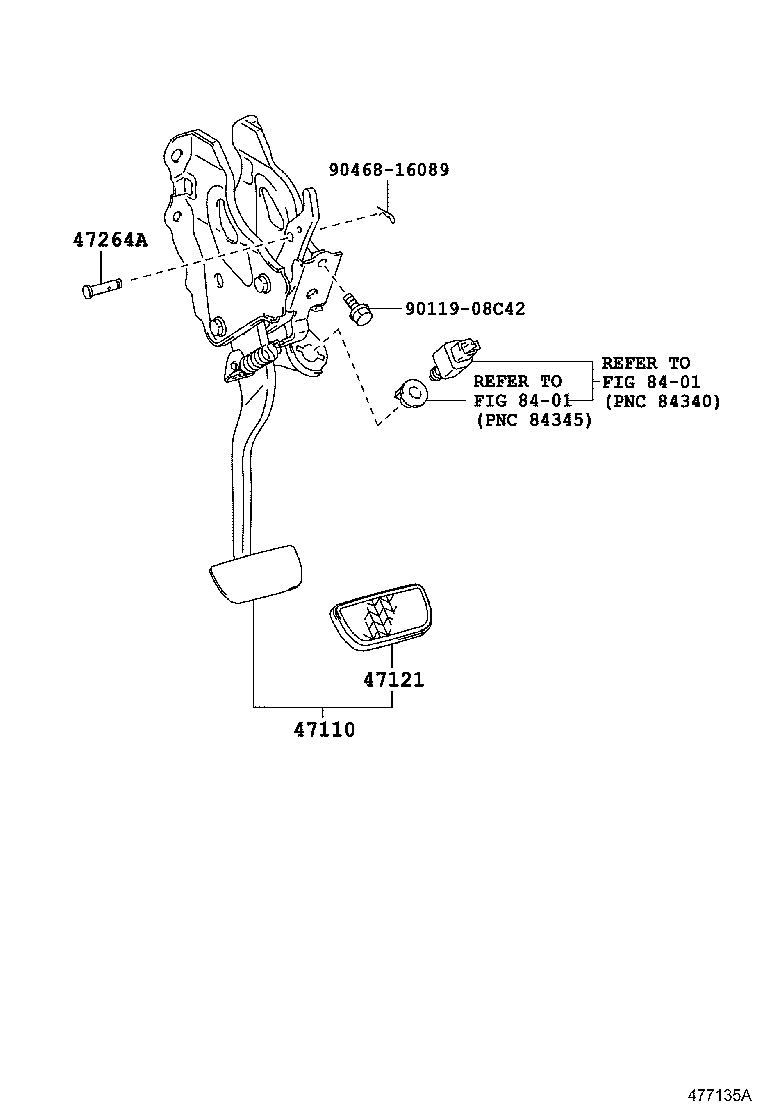

(0909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-74010 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 47110-74011 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-16089 | ||||
| Linked diagrams | ||||
| 8401 | ||||
