NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

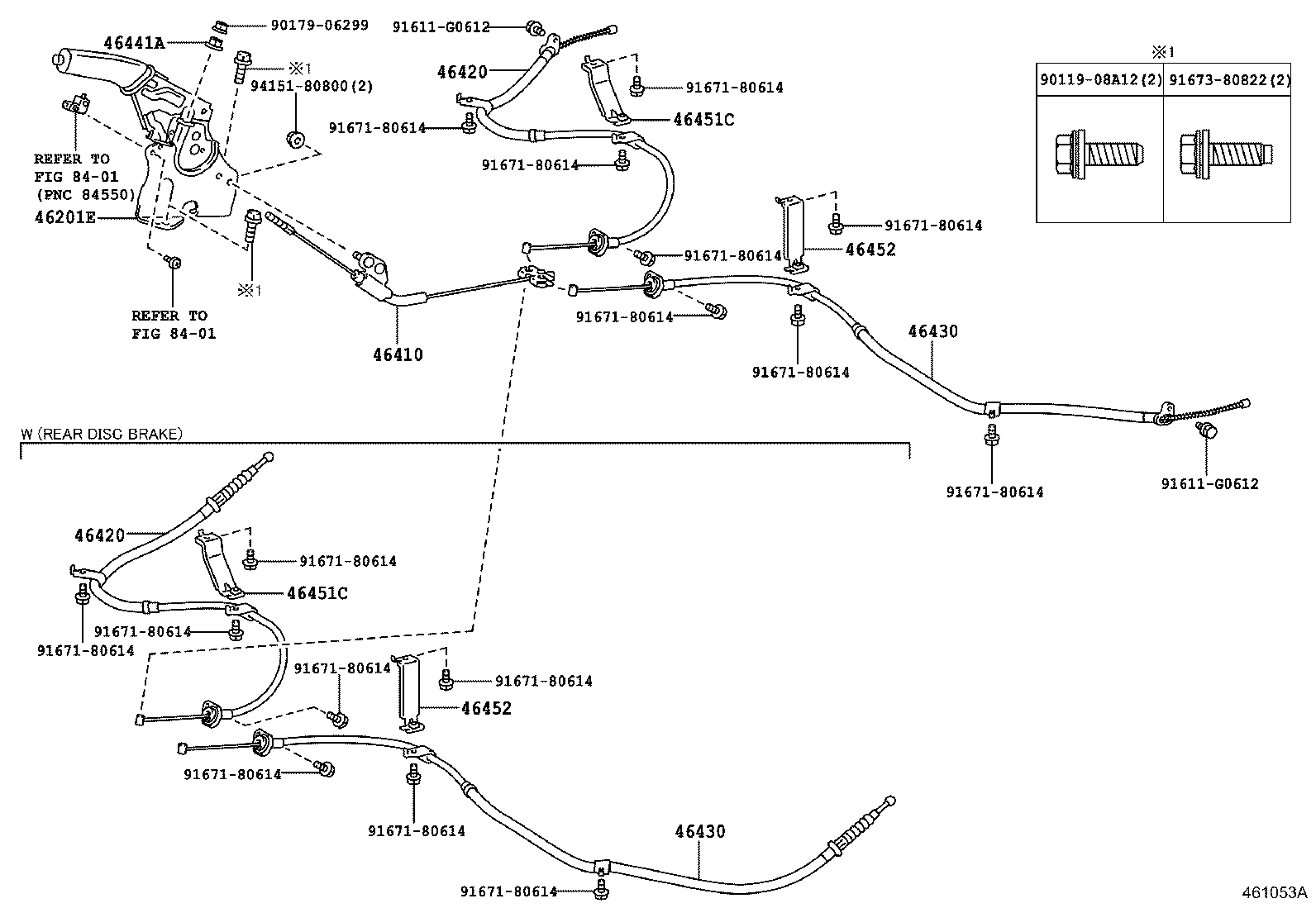

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-74030B0 |
KGJ10,NGJ10,NUJ10 DK.GRAY,TRIM1#,4#,5#,7# |
1 | ||
| 46201-74020B0 |
KGJ10,NGJ10,NUJ10 WITH(REAR DISC BRAKE),DK.GRAY,TRIM1#,4#,5#,7# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-74020 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 46420-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-74020 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 46420-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 46430-74020 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 46430-74020 |
NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-12010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Common parts | ||||
| 90119-08A12 | ||||
| 90179-06299 | ||||
| 91611-G0612 | ||||
| 91671-80614 | ||||
| 91673-80822 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
