NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NUJ10..LHD

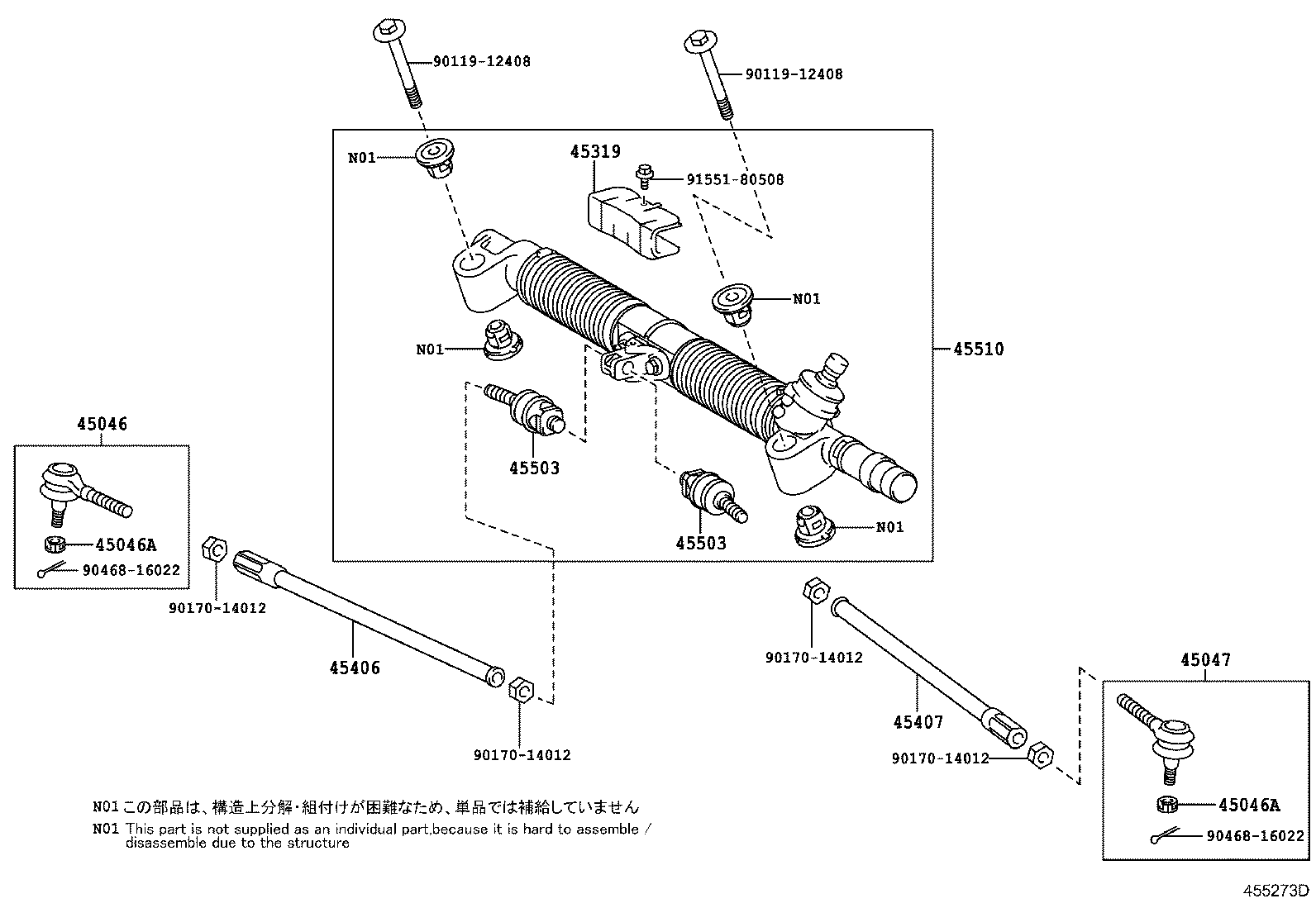

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45319 45406 45407 45503 45503 45510 9011912408 9011912408 9017014012 9017014012 9017014012 9017014012 9046816022 9046816022 9155180508
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-79025

KGJ10,NGJ10,NUJ10

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

KGJ10,NGJ10,NUJ10

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

KGJ10,NGJ10,NUJ10

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-79025

KGJ10,NGJ10,NUJ10

 1
45319 - INSULATOR, STEERING GEAR HEAT
45319-74010

NUJ10..LHD

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-74010

NUJ10..LHD;KGJ10,NGJ10

 1
45406-74010

KGJ10,NGJ10,NUJ10

 1
45407 - ROD SUB-ASSY, TIE, LH
45406-74010

NUJ10..LHD;KGJ10,NGJ10

 1
45406-74010

KGJ10,NGJ10,NUJ10

 1
45503 - END SUB-ASSY, STEERING RACK
45503-74010

KGJ10,NGJ10,NUJ10

 2
45503 - END SUB-ASSY, STEERING RACK
45503-74010

KGJ10,NGJ10,NUJ10

 2
45510 - GEAR ASSY, STEERING
45510-74040

NUJ10..LHD

 1
Common parts
90119-12408
90170-14012
90468-16022
91551-80508
