NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 45020A 45025D 45250 45260 45286B 45287 45289A 45897 9011908560 9011908560 9415180800 9415180800
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-74010

KGJ10,NGJ10,NUJ10..LHD

WIRELESS DOOR LOCK-SMART KEY

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-74020

KGJ10,NGJ10,NUJ10..LHD

 1
45250 - COLUMN ASSY, STEERING
45250-74030

KGJ10,NUJ10..LHD

 1
45250-74040

KGJ10,NUJ10..LHD

WIRELESS DOOR LOCK-SMART KEY

 1
45250-74120

KGJ10,NUJ10..LHD

 1
45250-74130

KGJ10,NUJ10..LHD

WIRELESS DOOR LOCK-SMART KEY

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-74020

KGJ10,NGJ10,NUJ10..LHD

 1
45286B - COVER, STEERING COLUMN, UPR
45286-74010C0

NUJ10..LHD;KGJ10,NGJ10..N

BLACK,TRIM1#,4#,5#,7#,9#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-74020C0

NUJ10..LHD;KGJ10,NGJ10..N

BLACK,TRIM1#,4#,5#,7#,9#

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-52010C0

KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY,BLACK,TRIM1#,4#,5#,7#,9#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NGJ10..R;NGJ10..LHD..N;KGJ10,NUJ10..LHD

 1
Common parts
90119-08560
94151-80800

(0811- )NGJ10..N ; (0811- )KGJ10,NUJ10 ; (0811- )NGJ10..LHD..R

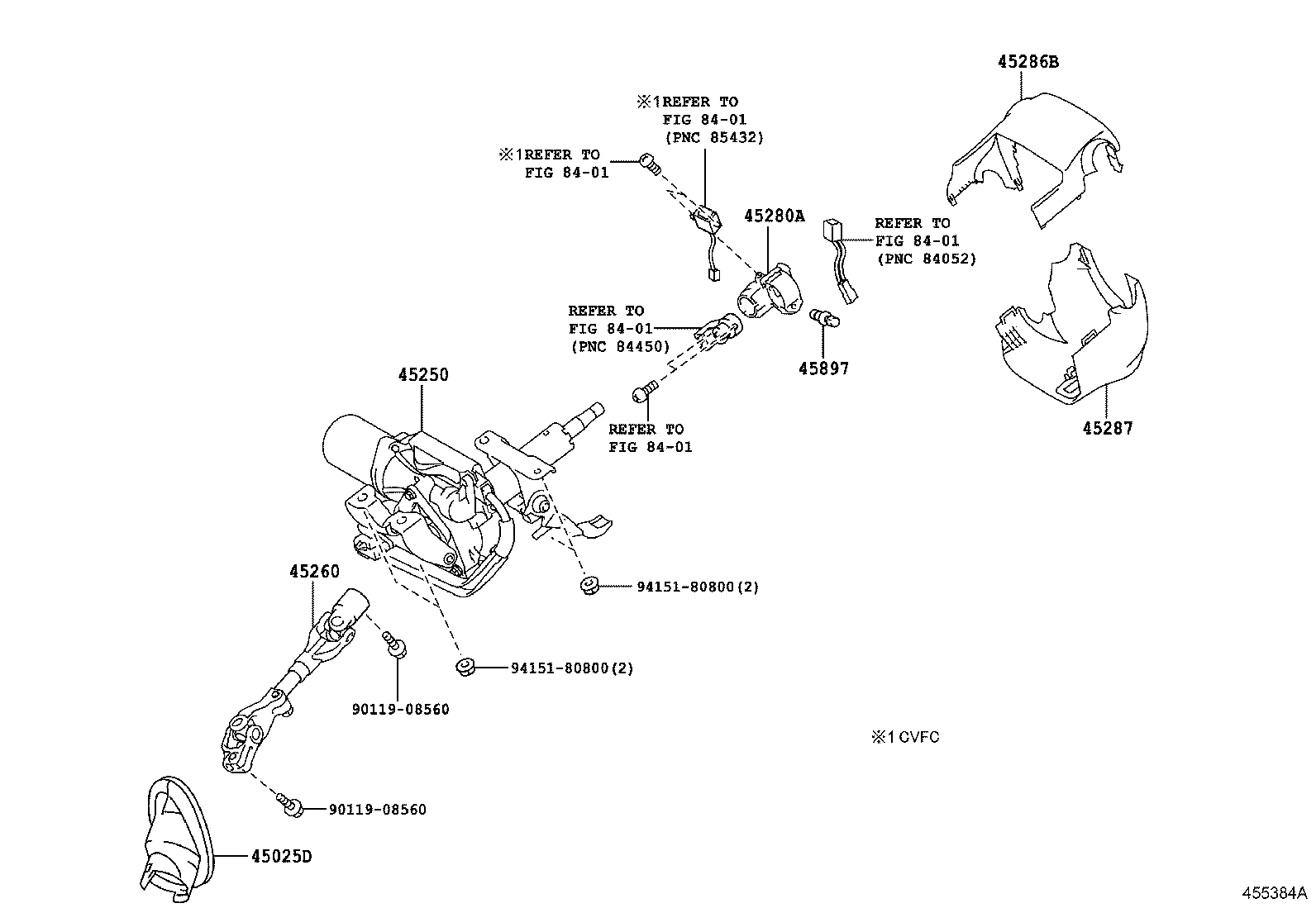

Click highlighted areas on diagram

diagram 45025D 45250 45260 45280A 45286B 45287 45897 8401 8401 8401 8401 8401 9011908560 9011908560 9415180800 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-74020

KGJ10,NGJ10,NUJ10..LHD

 1
45250 - COLUMN ASSY, STEERING
45250-74030

KGJ10,NUJ10..LHD

 1
45250-74040

KGJ10,NUJ10..LHD

WIRELESS DOOR LOCK-SMART KEY

 1
45250-74120

KGJ10,NUJ10..LHD

 1
45250-74130

KGJ10,NUJ10..LHD

WIRELESS DOOR LOCK-SMART KEY

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-74020

KGJ10,NGJ10,NUJ10..LHD

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-74040

KGJ10,NGJ10,NUJ10..LHD..MTM

 1
45286B - COVER, STEERING COLUMN, UPR
45286-74010C0

NUJ10..LHD;KGJ10,NGJ10..N

BLACK,TRIM1#,4#,5#,7#,9#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-74020C0

NUJ10..LHD;KGJ10,NGJ10..N

BLACK,TRIM1#,4#,5#,7#,9#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NGJ10..R;NGJ10..LHD..N;KGJ10,NUJ10..LHD

 1
Common parts
90119-08560
94151-80800
Linked diagrams
8401
