NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

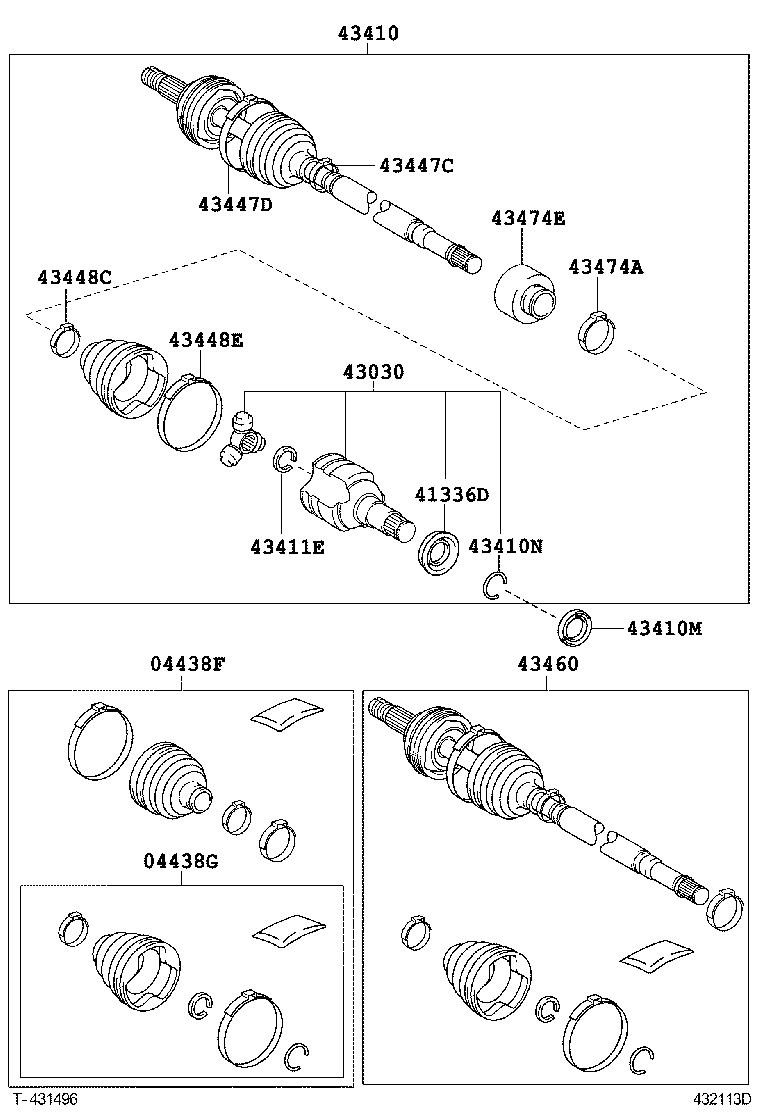

ILLUST NO. 1 OF 2(0811- )NUJ10
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04428-12740 |
NUJ10 |
1 | ||
| 04427-12470 |
NUJ10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-52330 |
NUJ10 |
1 | ||
| 04438-12A00 |
NUJ10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12060 |
NUJ10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-12120 |
NUJ10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-74010 |
NUJ10 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35065 |
NUJ10 |
1 | ||
| 90311-35062 |
NUJ10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
NUJ10 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-12070 |
NUJ10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12230 |
NUJ10 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12240 |
NUJ10 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12230 |
NUJ10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12180 |
NUJ10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-79045 |
NUJ10 |
1 | ||
| 43460-80123 |
NUJ10 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
NGJ10,NUJ10 |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-74010 |
NUJ10 |
1 | ||

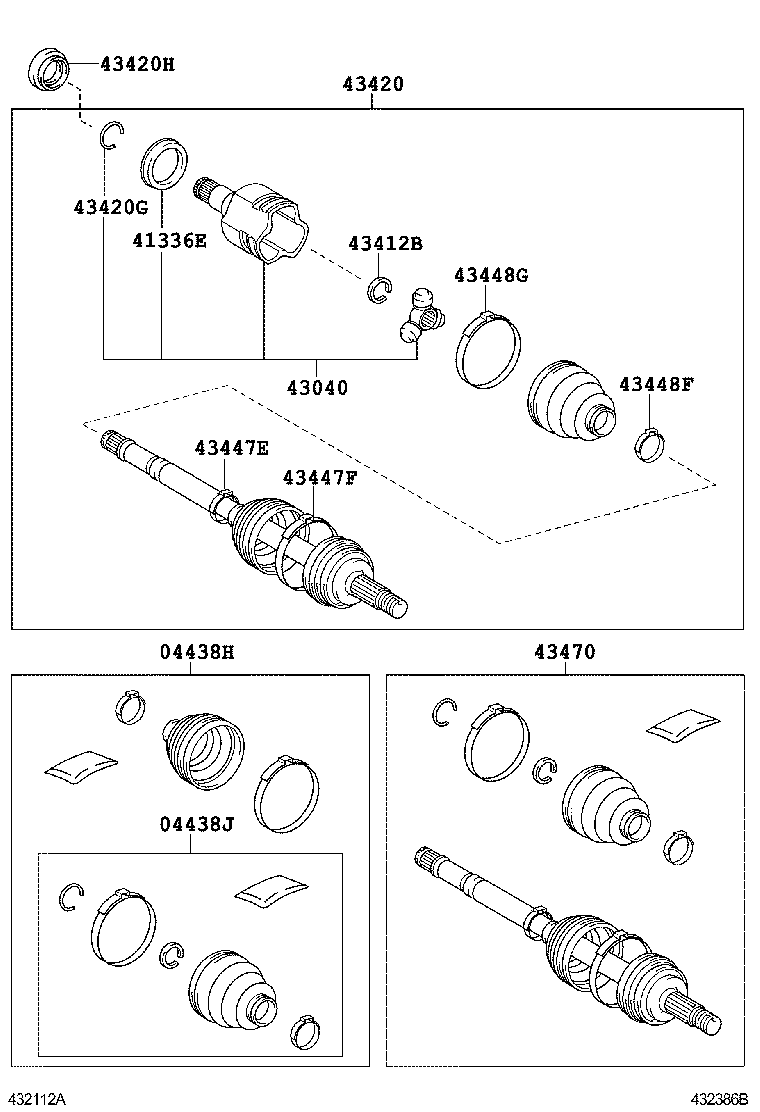

ILLUST NO. 2 OF 2(0811- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-12740 |
NUJ10 |
1 | ||
| 04427-12470 |
NUJ10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12A00 |
NUJ10 |
1 | ||
| 04437-52330 |
NUJ10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12060 |
NUJ10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-12120 |
NUJ10 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-12070 |
NUJ10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-52250 |
NUJ10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
NUJ10 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35066 |
NUJ10 |
1 | ||
| 90311-35061 |
NUJ10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12230 |
NUJ10 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12240 |
NUJ10 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12230 |
NUJ10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12180 |
NUJ10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-59686 |
NUJ10 |
1 | ||
| 43470-59595 |
NUJ10 |
1 | ||
