NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )MTM

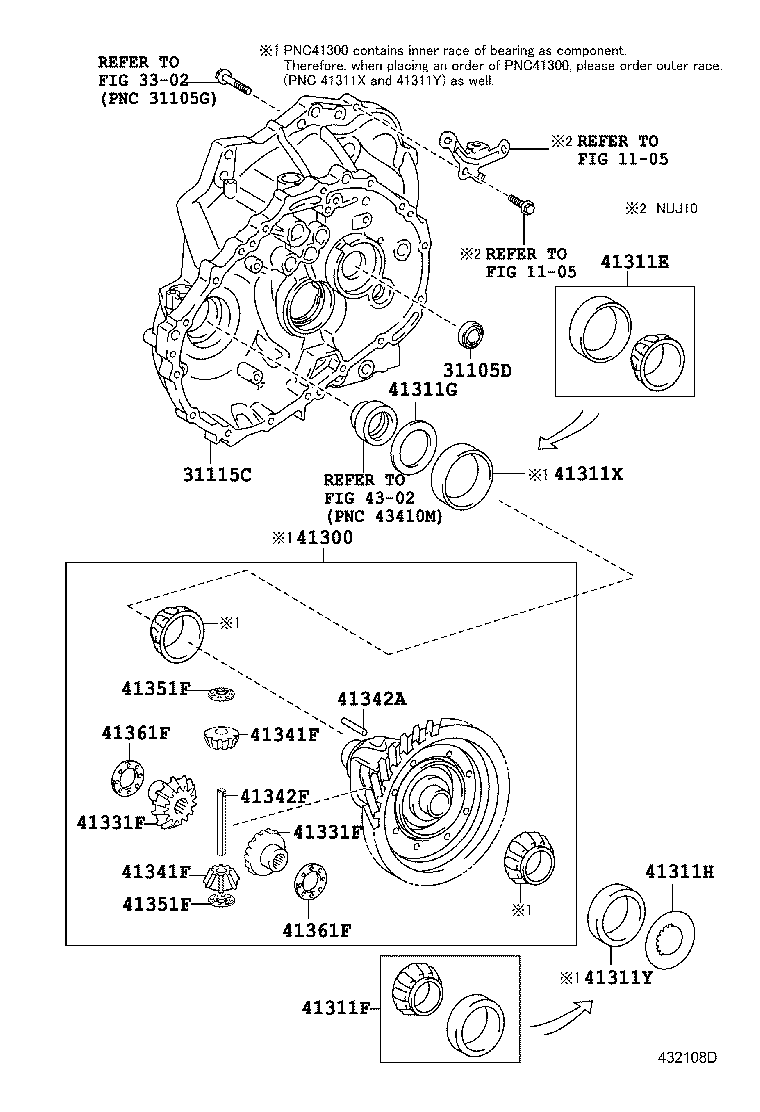

Click highlighted areas on diagram

EE53,EE63,EE65

diagram 1105 1105 31105D 31115C 3302 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

KGJ10,NGJ10,NUJ10..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-74020

NUJ10

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-74030

NUJ10

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129

KGJ10,NGJ10,NUJ10..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-42009

KGJ10,NGJ10,NUJ10..MTM

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

KGJ10,NGJ10,NUJ10..MTM

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44008

KGJ10,NGJ10,NUJ10..MTM

T=2.100, MARK 0

 1
90564-44011

KGJ10,NGJ10,NUJ10..MTM

T=2.175, MARK 3

 1
90564-44012

KGJ10,NGJ10,NUJ10..MTM

T=2.200, MARK 4

 1
90564-44019

KGJ10,NGJ10,NUJ10..MTM

T=2.375, MARK B

 1
90564-44016

KGJ10,NGJ10,NUJ10..MTM

T=2.300, MARK 8

 1
90564-44015

KGJ10,NGJ10,NUJ10..MTM

T=2.275, MARK 7

 1
90564-44017

KGJ10,NGJ10,NUJ10..MTM

T=2.325, MARK 9

 1
90564-44023

KGJ10,NGJ10,NUJ10..MTM

T=2.475, MARK F

 1
90564-44021

KGJ10,NGJ10,NUJ10..MTM

T=2.425, MARK D

 1
90564-44024

KGJ10,NGJ10,NUJ10..MTM

T=2.500, MARK G

 1
90564-44010

KGJ10,NGJ10,NUJ10..MTM

T=2.150, MARK 2

 1
90564-44026

KGJ10,NGJ10,NUJ10..MTM

T=2.550, MARK J

 1
90564-44018

KGJ10,NGJ10,NUJ10..MTM

T=2.350, MARK A

 1
90564-44022

KGJ10,NGJ10,NUJ10..MTM

T=2.450, MARK E

 1
90564-44030

KGJ10,NGJ10,NUJ10..MTM

T=2.650, MARK N

 1
90564-44029

KGJ10,NGJ10,NUJ10..MTM

T=2.625, MARK M

 1
90564-44013

KGJ10,NGJ10,NUJ10..MTM

T=2.225, MARK 5

 1
90564-44014

KGJ10,NGJ10,NUJ10..MTM

T=2.250, MARK 6

 1
90564-44020

KGJ10,NGJ10,NUJ10..MTM

T=2.400, MARK C

 1
90564-44025

KGJ10,NGJ10,NUJ10..MTM

T=2.525, MARK H

 1
90564-44027

KGJ10,NGJ10,NUJ10..MTM

T=2.575, MARK K

 1
90564-44038

KGJ10,NGJ10,NUJ10..MTM

T=2.850, MARK W

 1
90564-44034

KGJ10,NGJ10,NUJ10..MTM

T=2.750, MARK S

 1
90564-44028

KGJ10,NGJ10,NUJ10..MTM

T=2.600, MARK L

 1
90564-44033

KGJ10,NGJ10,NUJ10..MTM

T=2.725, MARK R

 1
90564-44035

KGJ10,NGJ10,NUJ10..MTM

T=2.775, MARK T

 1
90564-44009

KGJ10,NGJ10,NUJ10..MTM

T=2.125, MARK 1

 1
90564-44037

KGJ10,NGJ10,NUJ10..MTM

T=2.825, MARK V

 1
90564-44031

KGJ10,NGJ10,NUJ10..MTM

T=2.675, MARK P

 1
90564-44036

KGJ10,NGJ10,NUJ10..MTM

T=2.800, MARK U

 1
90564-44032

KGJ10,NGJ10,NUJ10..MTM

T=2.700, MARK Q

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-40130

NGJ10..R;KGJ10,NUJ10..MTM

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-42010

NGJ10..R;KGJ10,NUJ10..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-20130

NUJ10

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-20130

NUJ10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20050

NUJ10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20050

NUJ10

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NGJ10..R;KGJ10,NUJ10..MTM

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

NGJ10..R;KGJ10,NUJ10..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NUJ10

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NUJ10

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NGJ10..R;KGJ10,NUJ10..MTM

T=1.20,MARK 04

 2
41361-22150

NGJ10..R;KGJ10,NUJ10..MTM

T=1.05,MARK 15

 2
41361-22160

NGJ10..R;KGJ10,NUJ10..MTM

T=1.15,MARK 16

 2
41361-22140

NGJ10..R;KGJ10,NUJ10..MTM

T=0.95,MARK 14

 2
41361-22020

NGJ10..R;KGJ10,NUJ10..MTM

T=1.00,MARK 02

 2
41361-22030

NGJ10..R;KGJ10,NUJ10..MTM

T=1.10,MARK 03

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NGJ10..R;KGJ10,NUJ10..MTM

T=1.20,MARK 04

 2
41361-22150

NGJ10..R;KGJ10,NUJ10..MTM

T=1.05,MARK 15

 2
41361-22160

NGJ10..R;KGJ10,NUJ10..MTM

T=1.15,MARK 16

 2
41361-22140

NGJ10..R;KGJ10,NUJ10..MTM

T=0.95,MARK 14

 2
41361-22020

NGJ10..R;KGJ10,NUJ10..MTM

T=1.00,MARK 02

 2
41361-22030

NGJ10..R;KGJ10,NUJ10..MTM

T=1.10,MARK 03

 2
