NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )MTM

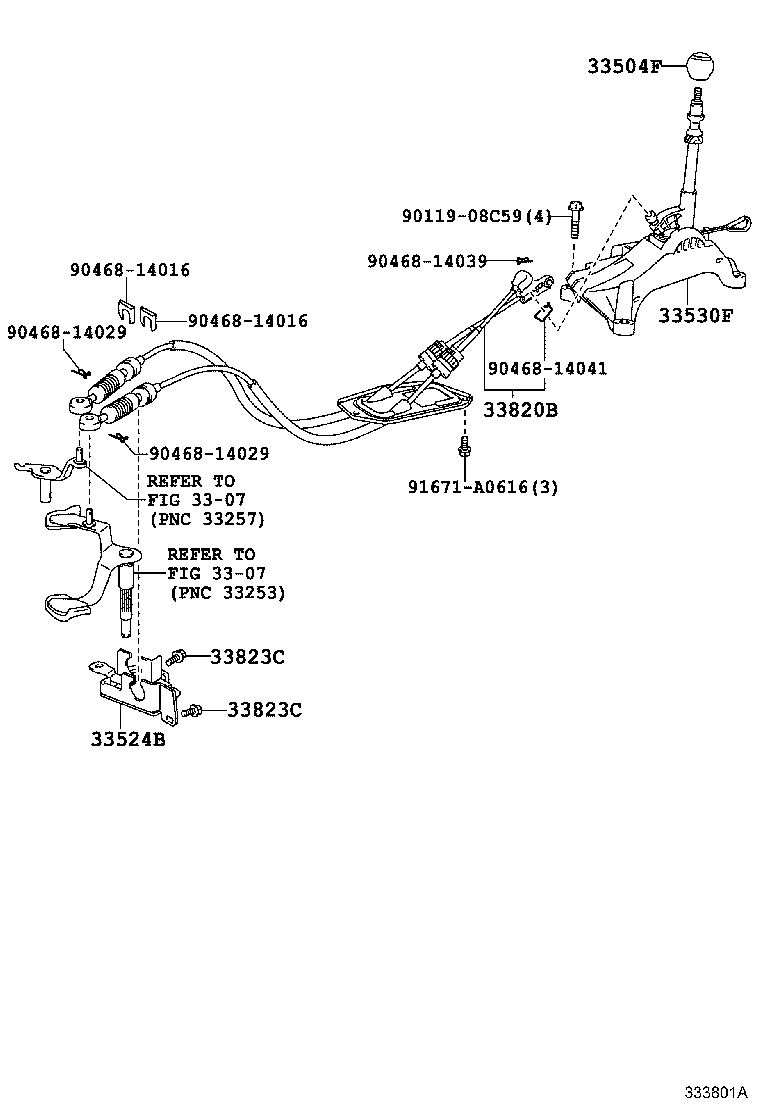

Click highlighted areas on diagram

diagram 3307 3307 33504F 33524B 33530F 33820B 33823C 33823C 9011908C59 9046814016 9046814016 9046814029 9046814029 9046814039 9046814041 91671A0616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12330B1

NGJ10,NUJ10..6F

DK.GRAY,TRIM1#,4#,5#,7#

 1
33504-12330C0

NGJ10,NUJ10..6F

BLACK,TRIM1#,4#,5#,7#,9#

 1
33524B - BRACKET, CONTROL CABLE
33524-74010

KGJ10,NGJ10,NUJ10..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-74010

KGJ10,NGJ10,NUJ10..MTM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-74010

NUJ10

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

KGJ10,NGJ10,NUJ10..MTM

 2
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

KGJ10,NGJ10,NUJ10..MTM

 2
Common parts
90119-08C59
90468-14016
90468-14029
90468-14039
90468-14041
91671-A0616
Linked diagrams
3307
