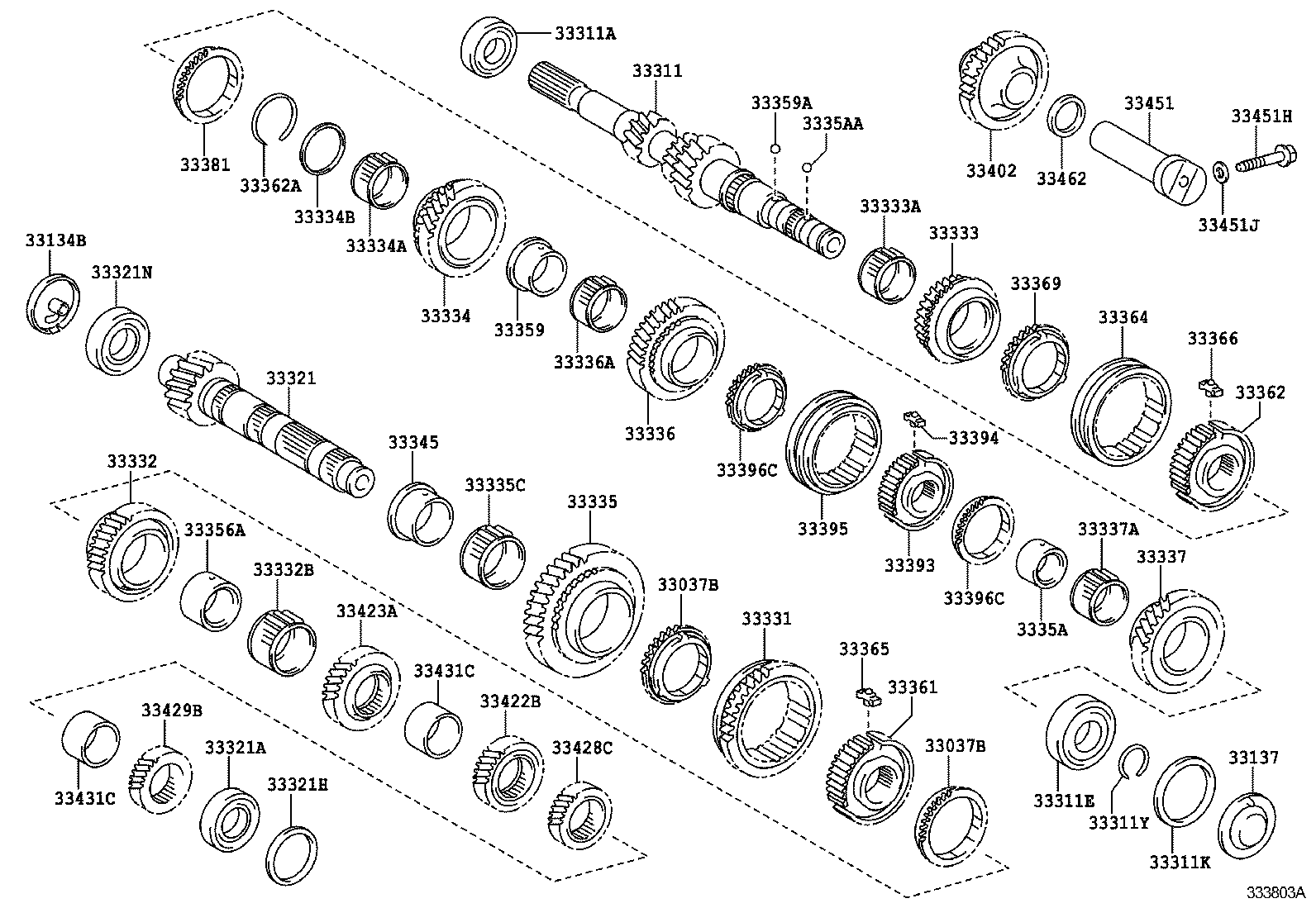

NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )6F
EE63,EE65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-20100 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-20100 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20040 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33137 - COVER, INPUT SHAFT(MTM) | ||||
| 33137-20020 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20240 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-25081 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-28014 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33311K - SHIM (FOR INPUT SHAFT REAR BEARING) | ||||
| 90564-54071 |
KGJ10,NUJ10..MTM T=2.00,MARK U |
1 | ||
| 90564-54072 |
KGJ10,NUJ10..MTM T=2.05,MARK V |
1 | ||
| 90564-54060 |
KGJ10,NGJ10,NUJ10..MTM T=1.45,MARK 11 |
1 | ||
| 90564-54061 |
KGJ10,NGJ10,NUJ10..MTM T=1.50,MARK 12 |
1 | ||
| 90564-54069 |
KGJ10,NUJ10..MTM T=1.90,MARK S |
1 | ||
| 90564-54059 |
KGJ10,NGJ10,NUJ10..MTM T=1.40,MARK 10 |
1 | ||
| 90564-54070 |
KGJ10,NUJ10..MTM T=1.95,MARK T |
1 | ||
| 90564-54064 |
KGJ10,NGJ10,NUJ10..MTM T=1.65,MARK 15 |
1 | ||
| 90564-54066 |
KGJ10,NGJ10,NUJ10..MTM T=1.75,MARK 17 |
1 | ||
| 90564-54067 |
KGJ10,NGJ10,NUJ10..MTM T=1.80,MARK 18 |
1 | ||
| 90564-54091 |
KGJ10,NGJ10,NUJ10..MTM T=1.40,MARK 10 |
1 | ||
| 90564-54063 |
KGJ10,NGJ10,NUJ10..MTM T=1.60,MARK 14 |
1 | ||
| 90564-54089 |
KGJ10,NGJ10,NUJ10..MTM T=1.30,MARK 08 |
1 | ||
| 90564-54094 |
KGJ10,NGJ10,NUJ10..MTM T=1.55,MARK 13 |
1 | ||
| 90564-54095 |
KGJ10,NGJ10,NUJ10..MTM T=1.60,MARK 14 |
1 | ||
| 90564-54100 |
KGJ10,NGJ10,NUJ10..MTM T=1.85,MARK 19 |
1 | ||
| 90564-54099 |
KGJ10,NGJ10,NUJ10..MTM T=1.80,MARK 18 |
1 | ||
| 90564-54065 |
KGJ10,NGJ10,NUJ10..MTM T=1.70,MARK 16 |
1 | ||
| 90564-54097 |
KGJ10,NGJ10,NUJ10..MTM T=1.70,MARK 16 |
1 | ||
| 90564-54062 |
KGJ10,NGJ10,NUJ10..MTM T=1.55,MARK 13 |
1 | ||
| 90564-54101 |
KGJ10,NGJ10,NUJ10..MTM T=1.30,MARK 08 |
1 | ||
| 90564-54093 |
KGJ10,NGJ10,NUJ10..MTM T=1.50,MARK 12 |
1 | ||
| 90564-54096 |
KGJ10,NGJ10,NUJ10..MTM T=1.65,MARK 15 |
1 | ||
| 90564-54090 |
KGJ10,NGJ10,NUJ10..MTM T=1.35,MARK 09 |
1 | ||
| 90564-54092 |
KGJ10,NGJ10,NUJ10..MTM T=1.45,MARK 11 |
1 | ||
| 90564-54102 |
KGJ10,NGJ10,NUJ10..MTM T=1.35,MARK 09 |
1 | ||
| 90564-54098 |
KGJ10,NGJ10,NUJ10..MTM T=1.75,MARK 17 |
1 | ||
| 90564-54068 |
KGJ10,NGJ10,NUJ10..MTM T=1.85,MARK 19 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-25063 |
KGJ10,NGJ10,NUJ10..MTM T=1.75,MARK C |
1 | ||
| 90520-25064 |
KGJ10,NGJ10,NUJ10..MTM T=1.80,MARK D |
1 | ||
| 90520-25074 |
KGJ10,NGJ10,NUJ10..MTM T=2.25,MARK N |
1 | ||
| 90520-25071 |
KGJ10,NGJ10,NUJ10..MTM T=2.15,MARK L |
1 | ||
| 90520-25068 |
KGJ10,NGJ10,NUJ10..MTM T=2.00,MARK H |
1 | ||
| 90520-25067 |
KGJ10,NGJ10,NUJ10..MTM T=1.95,MARK G |
1 | ||
| 90520-25062 |
KGJ10,NGJ10,NUJ10..MTM T=1.70,MARK B |
1 | ||
| 90520-25059 |
KGJ10,NGJ10,NUJ10..MTM T=1.65,MARK A |
1 | ||
| 90520-25072 |
KGJ10,NGJ10,NUJ10..MTM T=2.20,MARK M |
1 | ||
| 90520-25075 |
KGJ10,NGJ10,NUJ10..MTM T=2.30,MARK P |
1 | ||
| 90520-25065 |
KGJ10,NGJ10,NUJ10..MTM T=1.85,MARK E |
1 | ||
| 90520-25070 |
KGJ10,NGJ10,NUJ10..MTM T=2.10,MARK K |
1 | ||
| 90520-25069 |
KGJ10,NGJ10,NUJ10..MTM T=2.05,MARK J |
1 | ||
| 90520-25066 |
KGJ10,NGJ10,NUJ10..MTM T=1.90,MARK F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-74010 |
NUJ10 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-30096 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-45118 |
KGJ10,NGJ10,NUJ10..MTM T=1.950,MARK 4 |
1 | ||
| 90564-45110 |
KGJ10,NGJ10,NUJ10..MTM T=1.750,MARK 33 |
1 | ||
| 90564-45119 |
KGJ10,NGJ10,NUJ10..MTM T=1.975,MARK 5 |
1 | ||
| 90564-45112 |
KGJ10,NGJ10,NUJ10..MTM T=1.800,MARK 11 |
1 | ||
| 90564-45113 |
KGJ10,NGJ10,NUJ10..MTM T=1.825,MARK 00 |
1 | ||
| 90564-45111 |
KGJ10,NGJ10,NUJ10..MTM T=1.755,MARK 22 |
1 | ||
| 90564-45124 |
KGJ10,NGJ10,NUJ10..MTM T=2.100,MARK A |
1 | ||
| 90564-45114 |
KGJ10,NGJ10,NUJ10..MTM T=1.850,MARK 0 |
1 | ||
| 90564-45122 |
KGJ10,NGJ10,NUJ10..MTM T=2.050,MARK 8 |
1 | ||
| 90564-45123 |
KGJ10,NGJ10,NUJ10..MTM T=2.075,MARK 9 |
1 | ||
| 90564-45115 |
KGJ10,NGJ10,NUJ10..MTM T=1.875,MARK 1 |
1 | ||
| 90564-45125 |
KGJ10,NGJ10,NUJ10..MTM T=2.125,MARK B |
1 | ||
| 90564-45126 |
KGJ10,NGJ10,NUJ10..MTM T=2.150,MARK C |
1 | ||
| 90564-45116 |
KGJ10,NGJ10,NUJ10..MTM T=1.900,MARK 2 |
1 | ||
| 90564-45130 |
KGJ10,NGJ10,NUJ10..MTM T=2.250,MARK G |
1 | ||
| 90564-45117 |
KGJ10,NGJ10,NUJ10..MTM T=1.925,MARK 3 |
1 | ||
| 90564-45137 |
KGJ10,NGJ10,NUJ10..MTM T=2.425,MARK P |
1 | ||
| 90564-45138 |
KGJ10,NGJ10,NUJ10..MTM T=2.450,MARK Q |
1 | ||
| 90564-45132 |
KGJ10,NGJ10,NUJ10..MTM T=2.300,MARK J |
1 | ||
| 90564-45120 |
KGJ10,NGJ10,NUJ10..MTM T=2.000,MARK 6 |
1 | ||
| 90564-45131 |
KGJ10,NGJ10,NUJ10..MTM T=2.275,MARK H |
1 | ||
| 90564-45135 |
KGJ10,NGJ10,NUJ10..MTM T=2.375,MARK M |
1 | ||
| 90564-45129 |
KGJ10,NGJ10,NUJ10..MTM T=2.225,MARK F |
1 | ||
| 90564-45128 |
KGJ10,NGJ10,NUJ10..MTM T=2.200,MARK E |
1 | ||
| 90564-45121 |
KGJ10,NGJ10,NUJ10..MTM T=2.025,MARK 7 |
1 | ||
| 90564-45139 |
KGJ10,NGJ10,NUJ10..MTM T=2.475,MARK R |
1 | ||
| 90564-45141 |
KGJ10,NGJ10,NUJ10..MTM T=2.525,MARK T |
1 | ||
| 90564-45142 |
KGJ10,NGJ10,NUJ10..MTM T=2.550,MARK U |
1 | ||
| 90564-45136 |
KGJ10,NGJ10,NUJ10..MTM T=2.400,MARK N |
1 | ||
| 90564-45145 |
KGJ10,NGJ10,NUJ10..MTM T=2.625,MARK X |
1 | ||
| 90564-45133 |
KGJ10,NGJ10,NUJ10..MTM T=2.325,MARK K |
1 | ||
| 90564-45127 |
KGJ10,NGJ10,NUJ10..MTM T=2.175,MARK D |
1 | ||
| 90564-45140 |
KGJ10,NGJ10,NUJ10..MTM T=2.500,MARK S |
1 | ||
| 90564-45152 |
KGJ10,NGJ10,NUJ10..MTM T=2.800,MARK VV |
1 | ||
| 90564-45146 |
KGJ10,NGJ10,NUJ10..MTM T=2.650,MARK Y |
1 | ||
| 90564-45134 |
KGJ10,NGJ10,NUJ10..MTM T=2.350,MARK L |
1 | ||
| 90564-45148 |
KGJ10,NGJ10,NUJ10..MTM T=2.700,MARK ZZ |
1 | ||
| 90564-45143 |
KGJ10,NGJ10,NUJ10..MTM T=2.575,MARK V |
1 | ||
| 90564-45151 |
KGJ10,NGJ10,NUJ10..MTM T=2.775,MARK WW |
1 | ||
| 90564-45144 |
KGJ10,NGJ10,NUJ10..MTM T=2.600,MARK W |
1 | ||
| 90564-45147 |
KGJ10,NGJ10,NUJ10..MTM T=2.675,MARK Z |
1 | ||
| 90564-45150 |
KGJ10,NGJ10,NUJ10..MTM T=2.750,MARK XX |
1 | ||
| 90564-45149 |
KGJ10,NGJ10,NUJ10..MTM T=2.725,MARK YY |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-28016 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20090 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-20160 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-47011 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20120 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-37015 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-20210 |
NUJ10 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-37015 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-37004 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-20160 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-47010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-52060 |
NUJ10 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37015 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| 33037-52020 |
NUJ10 |
1 | ||
| 33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR) | ||||
| 90364-35011 |
NGJ10,NUJ10..6F |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-20030 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33356A - RACE, 2ND GEAR BEARING INNER | ||||
| 33356-20050 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33359 - RACE, 5TH GEAR BEARING INNER | ||||
| 33359-20010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 3335A - RACE, 6TH GEAR BEARING, INNER(MTM) | ||||
| 3335A-20010 |
NGJ10,NUJ10..6F |
1 | ||
| 3335AA - BALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM) | ||||
| 90360-05012 |
NGJ10,NUJ10..6F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-20070 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-20040 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-35034 |
KGJ10,NGJ10,NUJ10..MTM T=2.27,MARK 0 |
1 | ||
| 90520-35040 |
KGJ10,NGJ10,NUJ10..MTM T=2.57,MARK 6 |
1 | ||
| 90520-35036 |
KGJ10,NGJ10,NUJ10..MTM T=2.37,MARK 2 |
1 | ||
| 90520-35041 |
KGJ10,NGJ10,NUJ10..MTM T=2.62,MARK 7 |
1 | ||
| 90520-35035 |
KGJ10,NGJ10,NUJ10..MTM T=2.32,MARK 1 |
1 | ||
| 90520-35037 |
KGJ10,NGJ10,NUJ10..MTM T=2.42,MARK 3 |
1 | ||
| 90520-35039 |
KGJ10,NGJ10,NUJ10..MTM T=2.52,MARK 5 |
1 | ||
| 90520-35038 |
KGJ10,NGJ10,NUJ10..MTM T=2.47,MARK 4 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20070 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20080 |
KGJ10,NGJ10,NUJ10..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-20080 |
KGJ10,NGJ10,NUJ10..MTM |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20050 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-20020 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20040 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33365-20080 |
KGJ10,NGJ10,NUJ10..MTM |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20060 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-20010 |
NGJ10,NUJ10..6F |
2 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-20010 |
NGJ10,NUJ10..6F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20080 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-20070 |
NUJ10 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-20080 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-52030 |
NUJ10 |
1 | ||
| 33429B - GEAR, 6TH DRIVEN | ||||
| 33429-52020 |
NUJ10 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20090 |
NGJ10,NUJ10..6F |
2 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20090 |
NGJ10,NUJ10..6F |
2 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-74010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20070 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
