NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )MTM

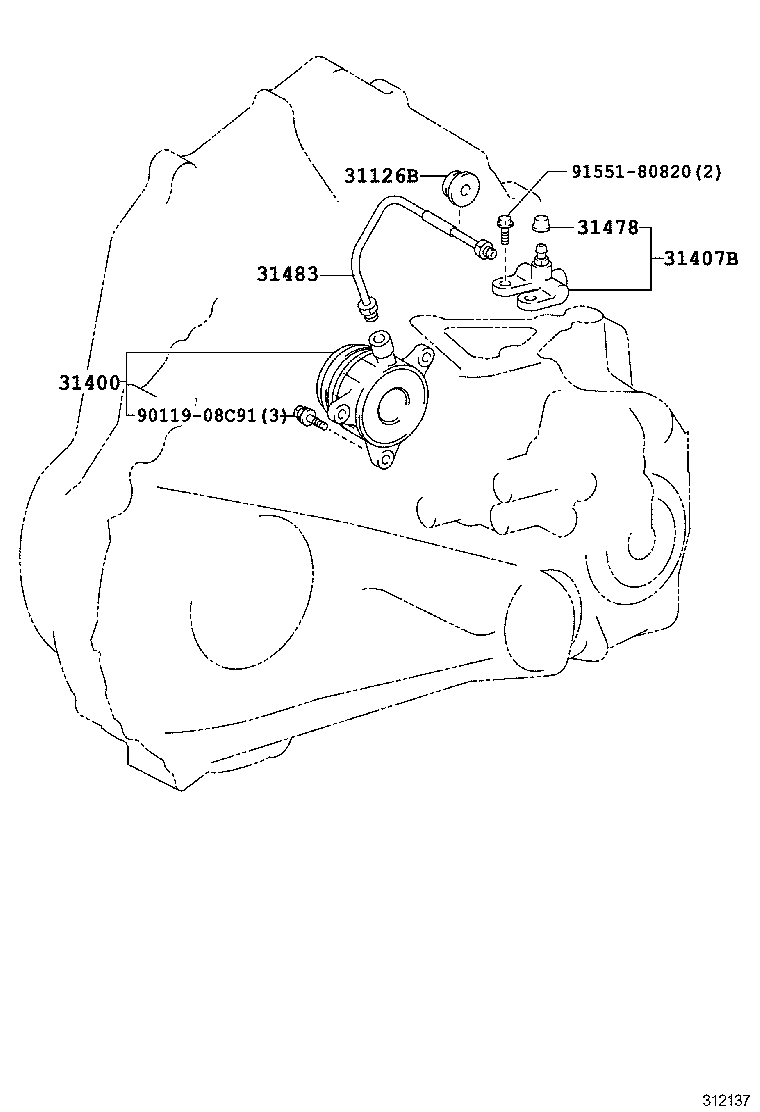

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126B - BOOT, CLUTCH TUBE | ||||
| 31126-20090 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING | ||||
| 31400-79005 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE | ||||
| 31407-74010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31483 - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31482-74030 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| Common parts | ||||
| 90119-08C91 | ||||
| 91551-80820 | ||||
