NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )LHD..MTM

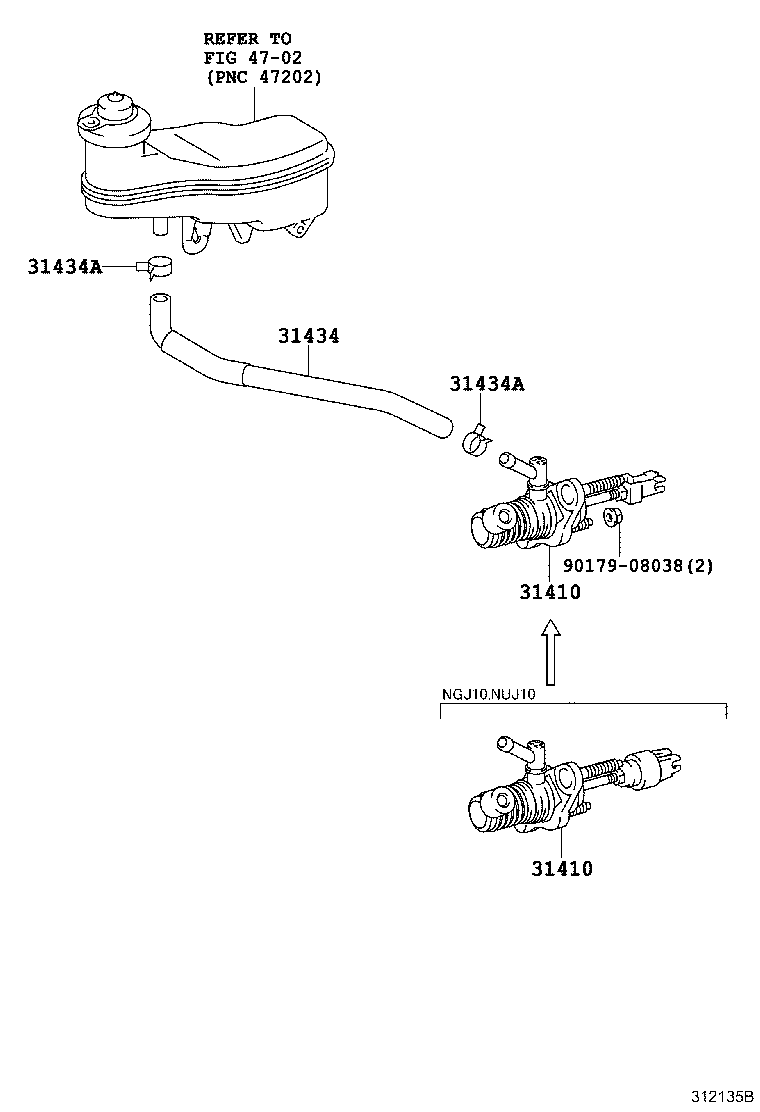

Click highlighted areas on diagram

diagram 31410 31410 31434 31434A 31434A 4702 9017908038
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-74020

NUJ10..LHD

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-74020

NUJ10..LHD

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-74010

KGJ10,NGJ10,NUJ10..LHD..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

KGJ10,NGJ10,NUJ10..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

KGJ10,NGJ10,NUJ10..MTM

 2
Common parts
90179-08038
Linked diagrams
4702
