NUJ10L-BGFNWW (2008)
Toyota Iq
Production
Nov 2008
-
May 2012
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

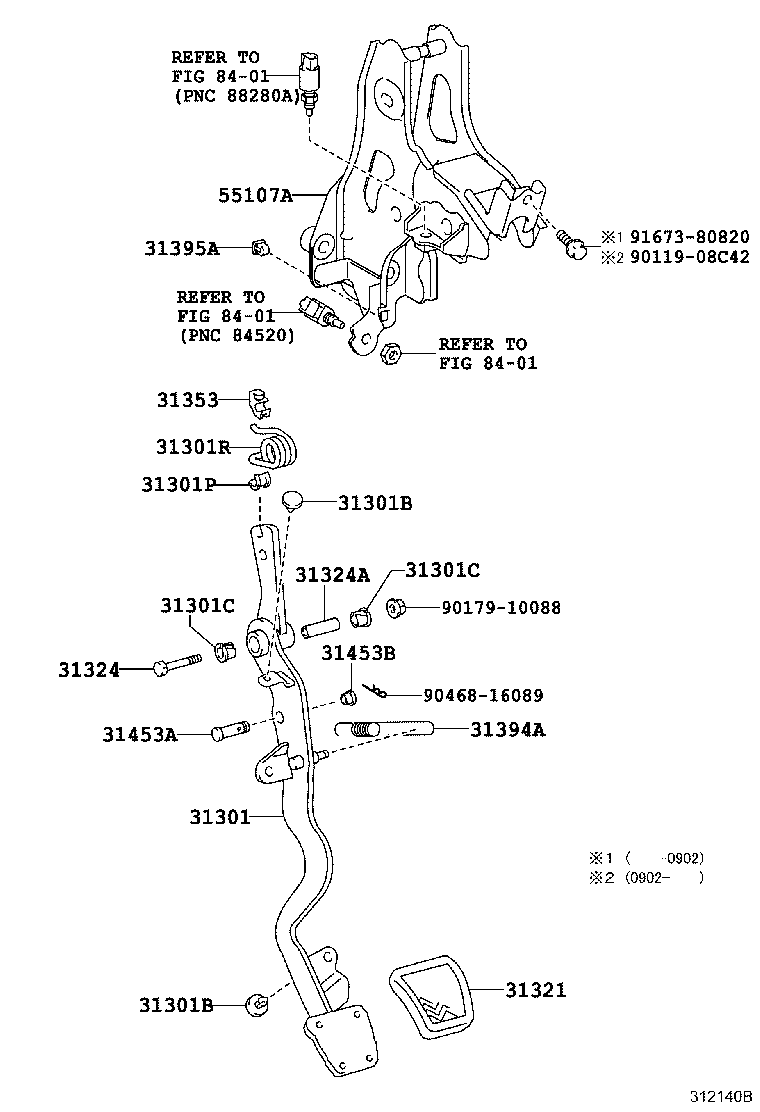

ILLUST NO. 1 OF 2(0811- )NUJ10..LHD ; (0811- )NGJ10..LHD..R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-74020 |
NUJ10..LHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KGJ10,NGJ10,NUJ10..MTM |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
NUJ10;NGJ10..R |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 31395-74010 |
NUJ10..LHD;NGJ10..LHD..R |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
NUJ10;NGJ10..R |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
NUJ10;NGJ10..R |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
NUJ10;NGJ10..R |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08256 |
KGJ10,NGJ10,NUJ10..MTM L=36.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-74020 |
NUJ10..LHD;NGJ10..LHD..R |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-10088 | ||||
| 90468-16089 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

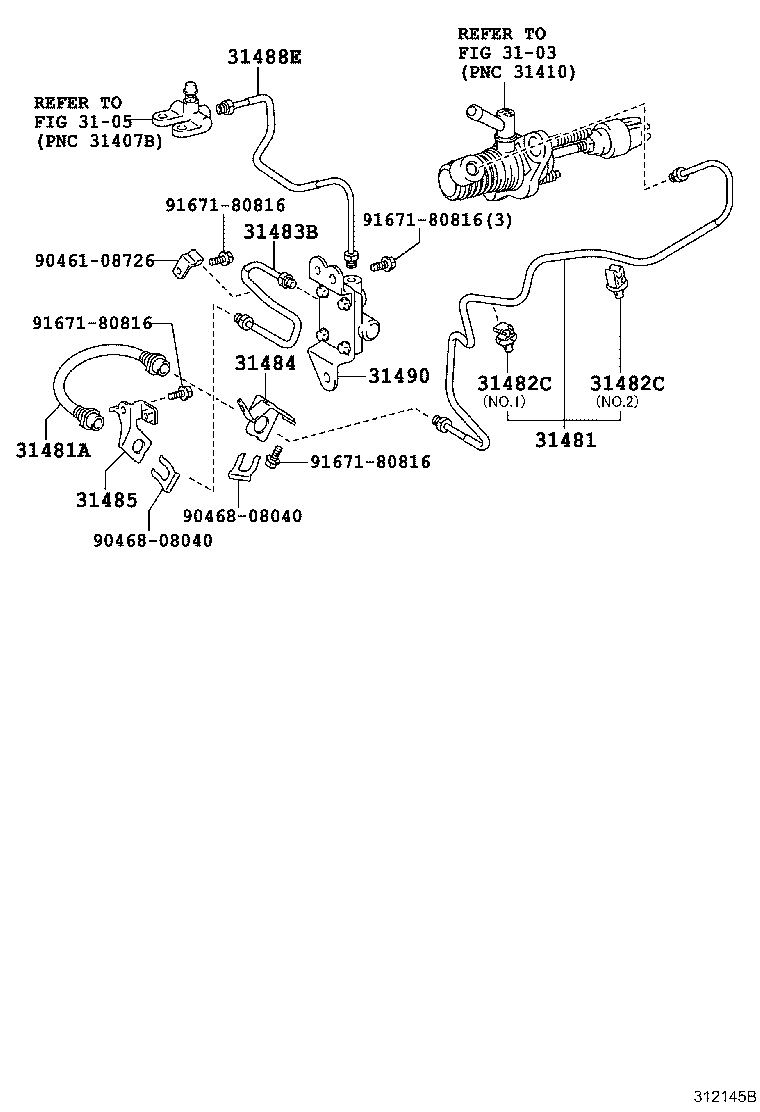

ILLUST NO. 2 OF 2(0811- )NUJ10..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-74010 |
KGJ10,NGJ10,NUJ10..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02G27 |
NUJ10 |
1 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 90949-01D17 |
KGJ10,NGJ10,NUJ10..MTM NO.1 |
1 | ||
| 90949-01D29 |
KGJ10,NGJ10,NUJ10..MTM NO.2 |
1 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 90949-01D17 |
KGJ10,NGJ10,NUJ10..MTM NO.1 |
1 | ||
| 90949-01D29 |
KGJ10,NGJ10,NUJ10..MTM NO.2 |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-74010 |
NUJ10..LHD |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-74010 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-74020 |
KGJ10,NGJ10,NUJ10..MTM |
1 | ||
| 31488E - TUBE, BLEEDER TO ACCUMULATOR | ||||
| 31488-74010 |
NUJ10 |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-74010 |
NUJ10..LHD |
1 | ||
| Common parts | ||||
| 90461-08726 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
