NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

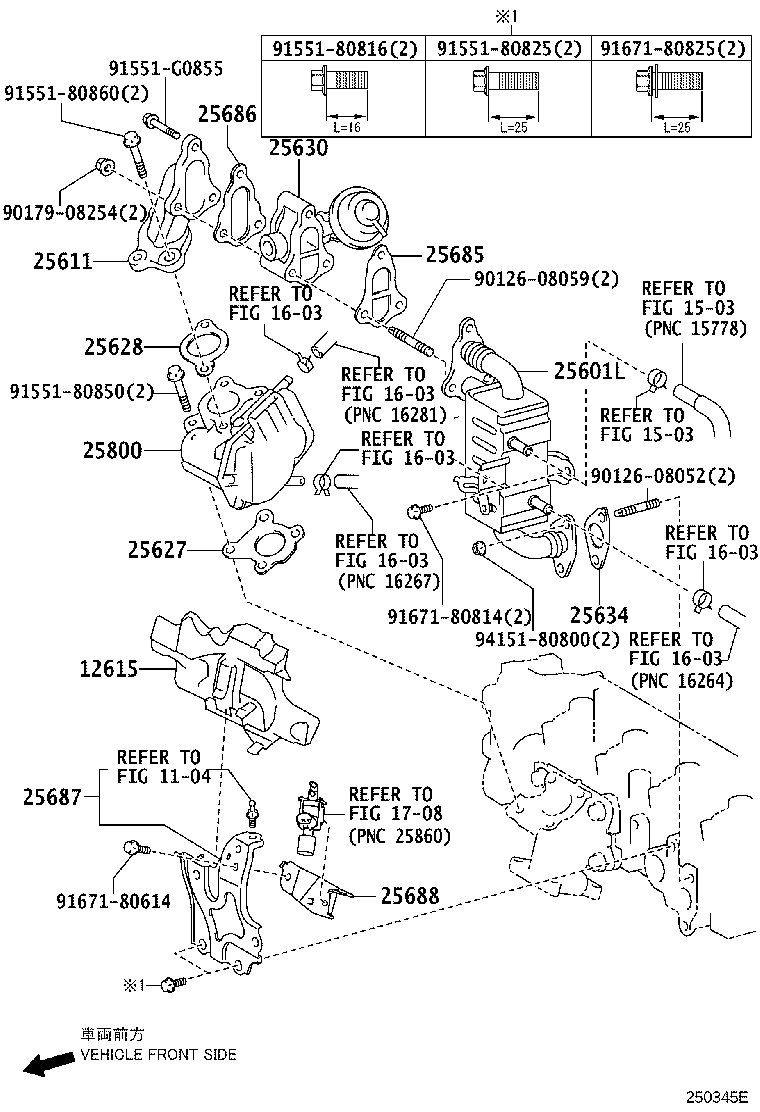

Click highlighted areas on diagram

diagram 1104 12615 1503 1503 1603 1603 1603 1603 1603 1603 1708 25601L 25611 25627 25628 25630 25634 25685 25686 25687 25688 25800 9012608052 9012608059 9017908254 9155180816 9155180825 9155180850 9155180860 91551G0855 9167180614 9167180814 9167180825 9415180800
Part # Description Qty Price
12615 - COVER, ENGINE, NO.5
12615-33020

1NDTV..NUJ10..LHD

 1
25601L - PIPE SUB-ASSY, EGR W/COOLER
25601-33040

1NDTV..NUJ10..LHD

 1
25601-33090

1NDTV..NUJ10

 1
25611 - CONNECTOR, EGR PIPE
25611-33020

1NDTV..NUJ10..LHD

 1
25627 - GASKET, EGR VALVE
25627-33010

1NDTV..NUJ10..LHD

 1
25628 - GASKET, EGR INLET
25628-33040

1NDTV..NUJ10..LHD

 1
25630 - VALVE ASSY, EGR, NO.2
25630-33010

1NDTV..NUJ10..LHD

 1
25634 - GASKET, EGR PIPE
25634-33010

1NDTV..NUJ10

 1
25685 - GASKET, EGR COOLER, NO.1
25685-33010

1NDTV..NUJ10..LHD

 1
25686 - GASKET, EGR COOLER, NO.2
25686-33010

1NDTV..NUJ10..LHD

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-33010

1NDTV..NUJ10..LHD

 1
25688 - BRACKET, EGR COOLER, NO.2
25688-33010

1NDTV..NUJ10..LHD

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-33011

1NDTV..NUJ10..LHD

 1
25800-33010

1NDTV..NUJ10

 1
Common parts
90126-08052
90126-08059
90179-08254
91551-80816
91551-80825
91551-80850
91551-80860
91551-G0855
91671-80614
91671-80814
91671-80825
94151-80800
Linked diagrams
1104
1503
1603
1708
