NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV

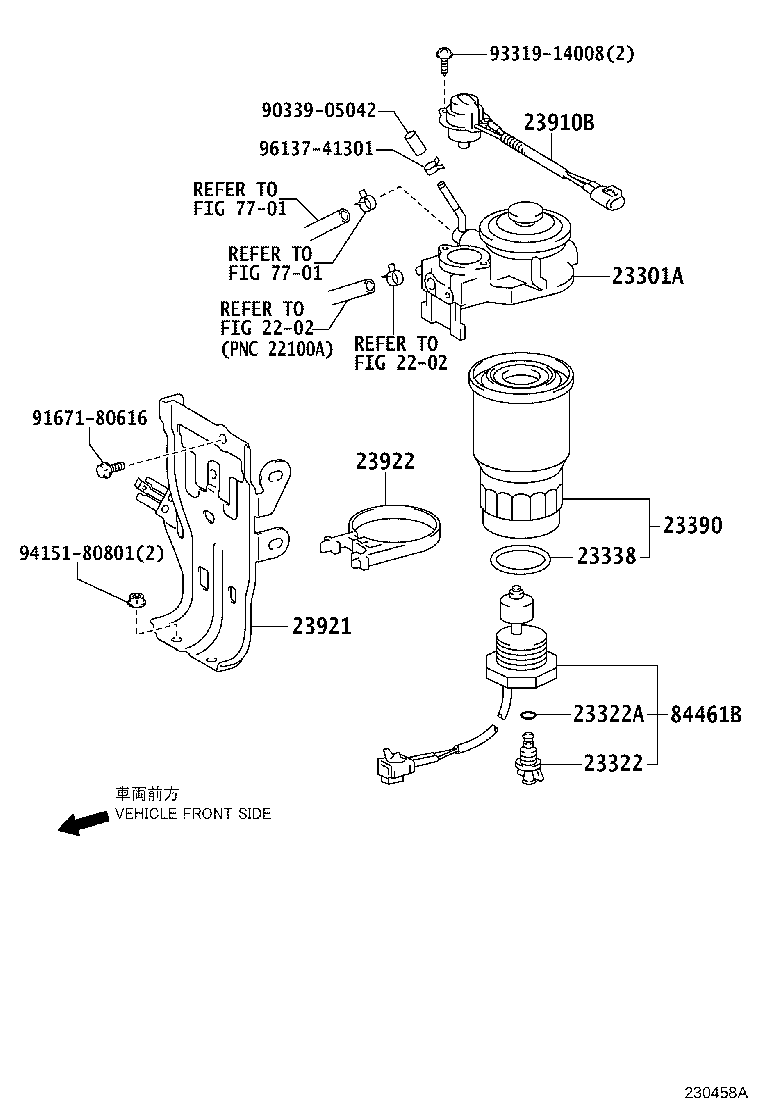

Click highlighted areas on diagram

diagram 2202 2202 23301A 23322 23322A 23338 23390 23910B 23921 23922 7701 7701 84461B 9033905042 9167180616 9331914008 9415180801 9613741301
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-33050

1NDTV..NUJ10

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1NDTV..NUJ10

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1NDTV..NUJ10

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1NDTV..NUJ10

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-33060

1NDTV..NUJ10

 1
23910B - HEATER ASSY, FUEL
23910-27010

1NDTV..NUJ10

 1
23921 - SUPPORT, FUEL FILTER
23921-33050

1NDTV..NUJ10

 1
23922 - SUPPORT, FUEL SEDIMENTER
23922-33010

1NDTV..NUJ10

 1
84461B - SWITCH, LEVEL WARNING
84461-26090

NUJ10

 1
Common parts
90339-05042
91671-80616
93319-14008
94151-80801
96137-41301
Linked diagrams
2202
7701
